Wire Drawing Machine

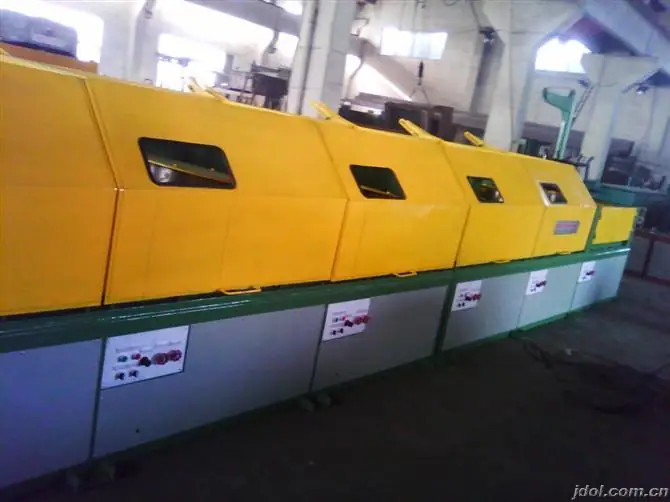

Combined wire drawing machine LZ5/700+DL800
This model wire drawing machine is designed for taking up big diameter and heavy steel wire .Features:Continuous production,can take up heavy steel…
- Motor power55-45 Kw
- ItemData
- Maximum diameter of inlet wireφ10-φ8 mm
- Minmum diameter of oulet wireφ5.0- φ4.0 mm
- Drawing line speed150-250 m/min
- Inlet tensile strength≤1150 Mpa
- Total compression rate75 %
- Average compression rate20 %
- Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
- More than twenty years experience in cold and hot forging and metal stamping equipment
- Rapid response technical team for operation guidance and production support
Salient Features of Combined wire drawing machine LZ5/700+DL800
This model wire drawing machine is designed for taking up big diameter and heavy steel wire .Features:Continuous production,can take up heavy steel wire,man-machine dialogue, motor over temperature production, meter calculation, full meter alarm,fault display, etc. The control type adopts the PLC control, is a kind of high efficiency,convenient operation,high degree of automation, wide range of technology advanced drawing equipment.
Main Technical Parameters of Combined wire drawing machine LZ5/700+DL800
| Item | Unit | Data |
| Maximum diameter of inlet wire | mm | φ10-φ8 |
| Minmum diameter of oulet wire | mm | φ5.0- φ4.0 |
| Drawing line speed | m/min | 150-250 |
| Inlet tensile strength | Mpa | ≤1150 |
| Total compression rate | % | 75 |
| Average compression rate | % | 20 |
| Motor power | Kw | 55-45 |
| Dimersions | mm | 10500x4000x2000 |
