Key Benefits
- Handles whole leaf, flower, and root blends that jam in machines designed for fine cut or fannings
- Ultrasonic sealing avoids heat and adhesive so aromatics are not scorched at the seam
- Electronic scale filling holds 0.1 g accuracy so bag weight stays consistent across a batch
- Narrow seal edge reduces film consumption compared to wide heat-sealed borders
- One operator can run the line after training instead of a hand-filling team
- Premade bag input allows faster changeover than film roll feeding for short runs
Application Scenarios
- Tea blenders packaging single-origin whole leaf tea for retail under their own brand
- Herbal and health tea producers running short batches of many different blends with quick format change
- Contract packers serving multiple tea brands from one machine with minimal downtime
- Food service suppliers packing rose, ginseng, and local tea for hotel and buffet use
Who It Is For
- Tea blenders moving from outsourced packing to in-house pyramid bagging
- Herbal tea producers whose leaf is too coarse for flat filter paper bags
- Brands that need the leaf visible through a transparent biodegradable bag
- Buyers replacing an ageing heat-seal machine that scorches nylon film
Problems It Solves
- Coarse whole leaf bridges and jams in machines designed for cut and fibre grades
- Heat sealing melts a wide edge into nylon film and wastes material on every bag
- Hand folding limits output far below a 35 to 55 bag per minute demand
- Manual pyramid folding gives inconsistent bag weight and cannot hold a 0.1 g target
- Non-food-grade film risks failing customer and retailer safety audits
Technical Features
- Ultrasonic sealing and cutting with two sealing devices for a tight narrow seam
- Four-head electronic weigher with optional 6 or 8 heads for higher throughput
- Filling range of 1 to 10 g per bag with +/-0.1 g accuracy
- Accepts premade pyramid bags with outer dimensions of 90-120 mm in length and 80-100 mm in width
- Packing roll width selectable at 120, 140, 160, or 180 mm
- Seal length selectable at 50, 60, 70, or 80 mm
- Runs on single phase 220V 50Hz at 3 kW with air supply at 0.6 MPa or higher
Specifications

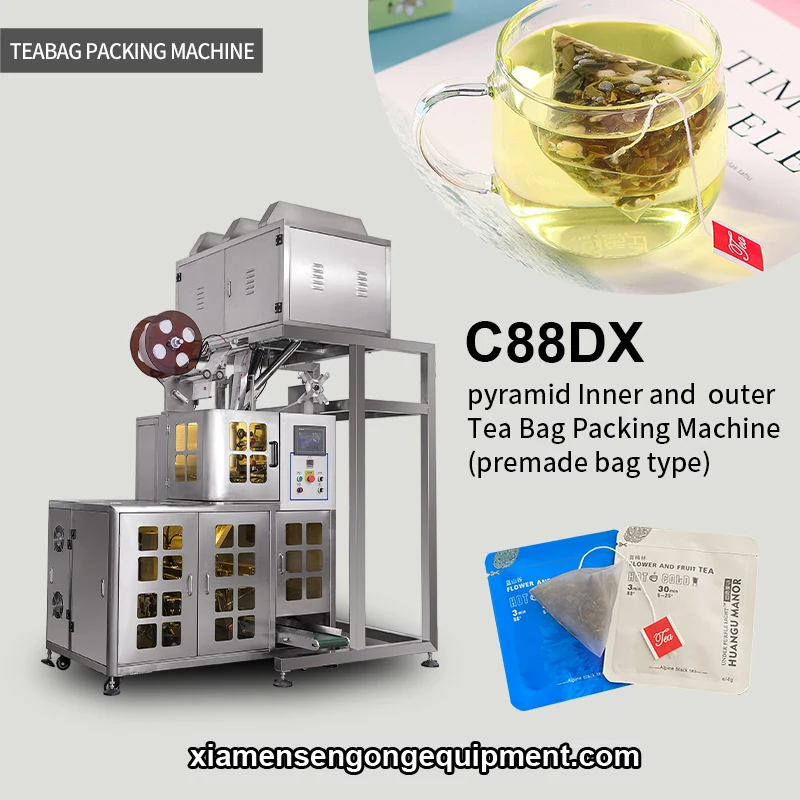

| Machine model | C88DX |
|---|---|
| Machine type | Pyramid Tea Bag Packaging Machine (Premade Bag) |
| Packing material | Nylon, non-woven fabric, PET, PLA |
| Measuring method | 4-head electronic weigher (6 or 8 heads customizable) |
| Filling range | 1-10 g/bag, accuracy +/-0.1 g/bag |
| Packing speed | 35-55 bags/min |
| Packing roll width | 120, 140, 160, 180 mm |
| Sealing length | 50, 60, 70, 80 mm |
| Sealing method | Sealing and cutting by ultrasonic |
| Qty of sealing device | 2 sets |
| Air supply | 0.6 MPa |
| Motor power | 220V, 50Hz, 3 kW |
| Dimension | 2000 x 1350 x 2450 mm (L x W x H) |
| Machine weight | 950 kg |
Packing Materials It Runs
- Nylon mesh film imported from Japan, non-toxic, heat resistant and food grade
- Non-woven fabric filter film for opaque pyramid bags
- PET film for high clarity pyramid bags
- PLA corn fibre film for 100% biodegradable transparent bags
How the Machine Works
- 1Premade pyramid bag feeding into the machine
- 2Electronic scale weighing and filling of the tea blend
- 3Ultrasonic sealing by two sealing devices
- 4Cutting and discharge of the finished bag
Quality Control Before Shipment
- F
- i
- l
- l
- i
- n
- g
- w
- e
- i
- g
- h
- t
- c
- h
- e
- c
- k
- e
- d
- a
- g
- a
- i
- n
- s
- t
- t
- h
- e
- +
- /
- -
- 0
- .
- 1
- g
- p
- e
- r
- b
- a
- g
- a
- c
- c
- u
- r
- a
- c
- y
- t
- a
- r
- g
- e
- t
- d
- u
- r
- i
- n
- g
- r
- u
- n
- -
- o
- f
- f
- S
- e
- a
- l
- i
- n
- t
- e
- g
- r
- i
- t
- y
- i
- n
- s
- p
- e
- c
- t
- e
- d
- o
- n
- t
- h
- e
- u
- l
- t
- r
- a
- s
- o
- n
- i
- c
- s
- e
- a
- m
- b
- e
- f
- o
- r
- e
- t
- h
- e
- m
- a
- c
- h
- i
- n
- e
- s
- h
- i
- p
- s
- F
- o
- o
- d
- c
- o
- n
- t
- a
- c
- t
- f
- i
- l
- m
- v
- e
- r
- i
- f
- i
- e
- d
- a
- s
- n
- o
- n
- -
- t
- o
- x
- i
- c
- n
- o
- n
- -
- b
- a
- c
- t
- e
- r
- i
- a
- h
- e
- a
- t
- r
- e
- s
- i
- s
- t
- a
- n
- t
- f
- o
- o
- d
- g
- r
- a
- d
- e
- m
- a
- t
- e
- r
- i
- a
- l
- M
- a
- c
- h
- i
- n
- e
- t
- e
- s
- t
- r
- u
- n
- w
- i
- t
- h
- t
- h
- e
- c
- u
- s
- t
- o
- m
- e
- r
- '
- s
- o
- w
- n
- t
- e
- a
- b
- e
- f
- o
- r
- e
- d
- i
- s
- p
- a
- t
- c
- h
- o
- n
- r
- e
- q
- u
- e
- s
- t
Certifications
- ISO
- CE
Customization Options
- Choice of 120, 140, 160, or 180 mm roll width to match your bag size
- Seal length set at 50, 60, 70, or 80 mm
- 4-head electronic weigher can be upgraded to 6 or 8 heads for higher throughput
- Nylon, non-woven, PET, or PLA film supplied to suit your brand and compostability claim
- Voltage and plug arranged for the destination market on request
- Air compressor supplied with the machine where site air is not available
How It Compares
| Flat filter paper tea bag machine | The C88DX handles coarse whole leaf and shows the blend through the film, while filter paper suits fine cut and fannings at lower film cost |
|---|---|
| Heat sealed pyramid machine | Ultrasonic sealing keeps the edge narrow and avoids scorching nylon, at the cost of an air supply requirement |
| Manual pyramid bagging | The C88DX replaces a hand-filling team and holds bag weight consistent, but needs a fixed footprint of 2000 x 1350 mm and an operator trained on changeover |
Use Guide
- 1Connect a clean dry air supply at 0.6 MPa or higher and a single phase 220V 50Hz outlet
- 2Load premade pyramid bags with outer dimensions of 90-120 mm in length and 80-100 mm in width
- 3Set seal length to 50, 60, 70, or 80 mm for the bag size you are running
- 4Enter target fill weight between 1 and 10 g and calibrate the electronic scale with your own tea
- 5Run ten sample bags and check weight and seal before starting the batch
- 6Clean the filling hopper between blends to avoid carry-over of aroma
C88DX Pyramid Herbs Tea Bag Packaging Machine (premade Bag) FAQ
What bag weight range can the C88DX run?
1 to 10 g per bag with an accuracy of +/-0.1 g per bag, set on the electronic scale filler.
How fast does it run?
35 to 55 bags per minute depending on bag size, fill weight, and how free-flowing your blend is.
Can it run biodegradable film?
Yes. It runs PLA corn fibre and 100% biodegradable transparent material as well as nylon, non-woven fabric, and PET.
Do I need an air compressor?
The machine needs an air supply at 0.6 MPa or higher. If your site has no compressed air we can equip the machine with an air compressor.
What power supply does it need?
220V 50Hz single phase, 3 kW motor power. Tell us your destination voltage and we will arrange it before shipment.
How much floor space and lifting capacity do I need?
The machine measures 2000 x 1350 x 2450 mm and weighs 950 kg, so plan the doorway height and forklift access accordingly.
Is the machine certified?
Sengong is certified to ISO and CE. Certificates are sent by email or WhatsApp on request.
