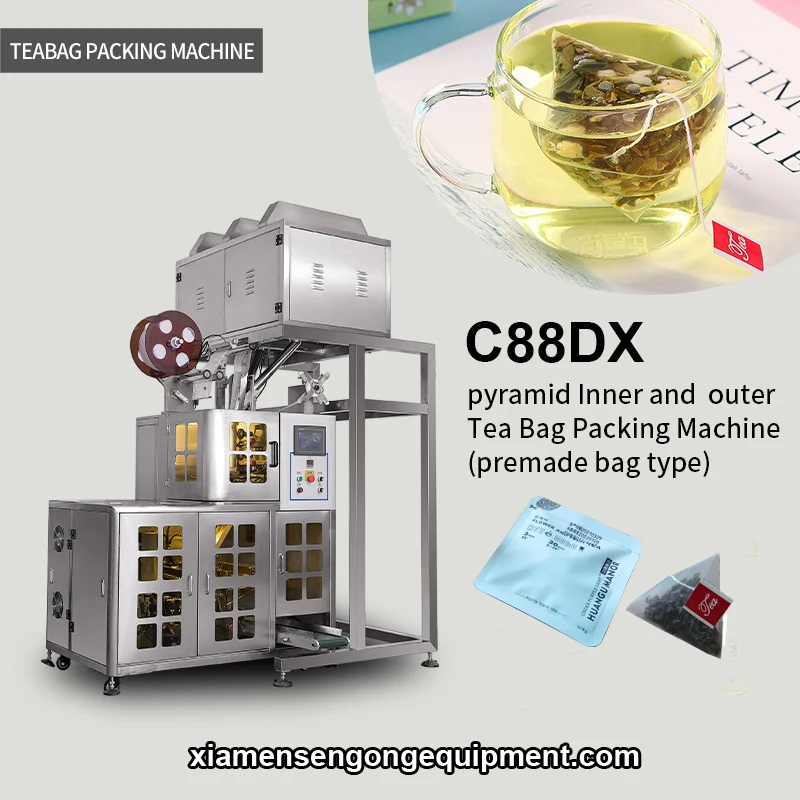

C88DX automatic pyramid tea bag packing machine with stainless steel frame and control panel

Pyramid tea bags with visible whole leaf and flower produced on the C88DX machine

Ultrasonic sealing head and film roll on the C88DX pyramid tea bag machine

C88DX machine in operation with outer tea bag packaging for fruit and herbal blends

Pyramid Tea Bag Packing Machines · Model C88DX

C88DX Pyramid Automatic Fruit Tea Machine with Packets

The C88DX forms, fills and ultrasonically seals pyramid tea bags from a single roll of nylon or non-woven film, running 35 to 55 bags per minute at 1 to 10 g per bag. It is built for fruit tea, herbal, and specialty tea producers who need to package whole leaf, flower, and blended ingredients in transparent, visible bags with consistent weight and minimal film waste. Two ultrasonic sealing devices create a tight, narrow seal without heat or adhesive, and a 6-head electronic weigher ensures fill accuracy within +/-0.1 g per bag.

Handles whole leaf, flower, and coarse blends that jam machines designed for fine cut or fannings
Ultrasonic sealing avoids heat and adhesive so delicate fruit and herbal aromatics are not altered at the seam
6-head electronic scale filling holds weight to within +/-0.1 g per bag across the 1 to 10 g range
Narrow seal edge reduces film waste compared to wide heat-sealed borders on older machines

Key Benefits

Handles whole leaf, flower, and coarse blends that jam machines designed for fine cut or fannings
Ultrasonic sealing avoids heat and adhesive so delicate fruit and herbal aromatics are not altered at the seam
6-head electronic scale filling holds weight to within +/-0.1 g per bag across the 1 to 10 g range
Narrow seal edge reduces film waste compared to wide heat-sealed borders on older machines
One operator can run the line after training, replacing a hand-filling team
Roll width and seal length change over to four bag formats without a new machine

Application Scenarios

Fruit tea producers packaging loose leaf and flower blends for retail under their own brand
Herbal and health tea manufacturers running short batches of many different fruit and flower combinations
Contract packers serving multiple tea brands from one line with quick format changeover
Tea estates in India, Sri Lanka, or Kenya packing Darjeeling, Assam, or Ceylon blends in pyramid bags for export

Who It Is For

Fruit tea brands moving from outsourced packing to in-house automatic bagging
Herbal and health tea producers whose blends are too coarse for flat filter paper bags
Producers needing visible whole leaf or flower inside a transparent biodegradable bag
Buyers replacing an ageing heat-seal machine that damages nylon film or causes seal failure

Problems It Solves

Coarse whole leaf or flower blends bridge and jam in machines designed for fine cut or fannings
Heat sealing melts a wide edge into nylon film and wastes material on every bag
Hand filling gives inconsistent bag weight and cannot hold a +/-0.1 g target across a batch
Manual pyramid folding limits output far below a 35 to 55 bag per minute requirement
Non-food-grade film risks failing customer and retailer safety audits

Technical Features

Ultrasonic sealing and cutting with two sealing devices for a tight narrow seam
6-head electronic scale filling with +/-0.1 g per bag accuracy across the 1 to 10 g range
Accepts nylon and non-woven filter film imported from Japan plus PET and PLA biodegradable material
Packing roll width selectable at 120, 140, 160, or 180 mm
Seal length selectable at 50, 60, 70, or 80 mm
Runs on single phase 220V 50Hz at 3 kW with air supply at 0.6 MPa

Specifications

Machine model	C88DX
Machine type	Tea Bag Packing Machine Series
Packing material	Nylon imported from Japan, non-woven fabric, PET, PLA
Measuring method	6-head electronic weigher (customizable to 8-head)
Filling range	1-10 g/bag, accuracy +/-0.1 g/bag
Packing speed	35-55 bags/min
Packing roll width	120, 140, 160, 180 mm
Sealing length	50, 60, 70, 80 mm
Sealing method	Sealing and cutting by ultrasonic
Qty of sealing device	2 sets
Air supply	0.6 MPa, air compressor can be equipped
Motor power	220V, 50Hz, 3 kW
Dimension	2000 x 1350 x 2450 mm (L x W x H)
Machine weight	950 kg

Packing Materials It Runs

Nylon mesh film imported from Japan, non-toxic, heat resistant and food grade
Non-woven fabric filter film for opaque pyramid bags
PET film for high clarity pyramid bags
PLA corn fibre film for 100% biodegradable transparent bags

How the Machine Works

1Film unwind and pyramid bag forming
26-head electronic scale weighing and filling
3Ultrasonic sealing by two sealing devices
4Cutting and discharge

Quality Control Before Shipment

Certifications

Customization Options

Choice of 120, 140, 160, or 180 mm roll width to match your bag size
Seal length set at 50, 60, 70, or 80 mm
6-head or 8-head electronic weigher available on request
Nylon, non-woven, PET, or PLA film supplied to suit your brand and compostability claim
Air compressor supplied with the machine where site air is not available
Voltage and plug arranged for the destination market on request

How It Compares

Flat filter paper tea bag machine	The C88DX handles coarse whole leaf and shows the blend through the film, while filter paper suits fine cut and fannings at lower film cost
Heat sealed pyramid machine	Ultrasonic sealing keeps the edge narrow and avoids scorching nylon, at the cost of an air supply requirement
Manual pyramid bagging	The C88DX replaces a hand-filling team and holds bag weight consistent, but needs a fixed footprint of 2000 x 1350 mm and an operator trained on changeover

Use Guide

1Connect a clean dry air supply at 0.6 MPa and a single phase 220V 50Hz outlet
2Load the film roll matched to your chosen 120, 140, 160, or 180 mm width
3Set seal length to 50, 60, 70, or 80 mm for the bag size you are running
4Enter target fill weight between 1 and 10 g and calibrate the 6-head electronic scale with your own tea
5Run ten sample bags and check weight and seal before starting the batch
6Clean the filling hopper between blends to avoid carry-over of aroma
