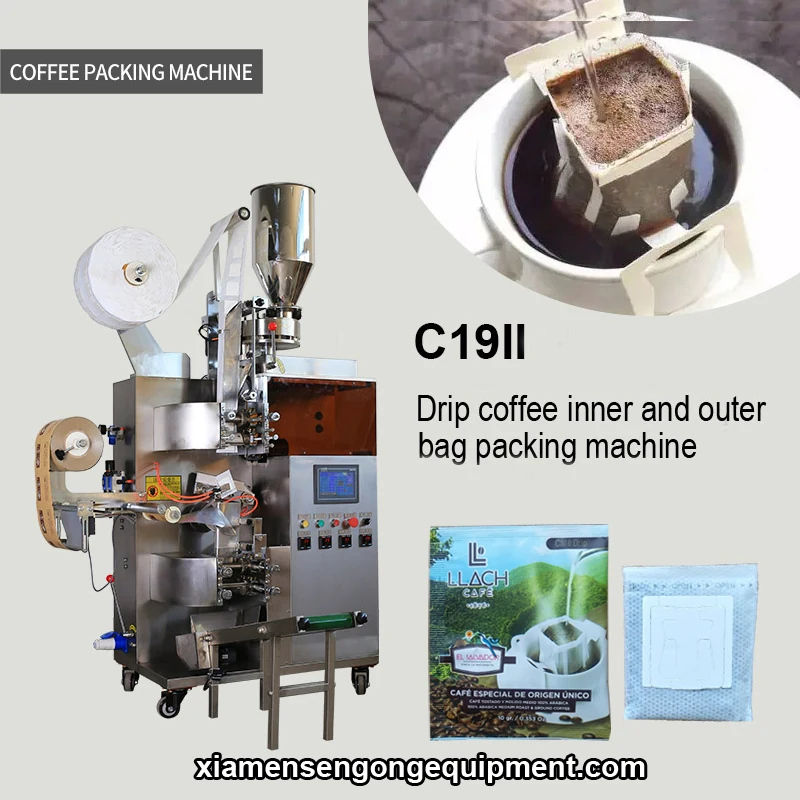

Key Benefits
- Forms and seals inner and outer bags simultaneously, reducing line footprint and labour compared to separate machines
- Stepper motor controls outer bag length with high accuracy, reducing misalignment and film waste
- PID temperature control ensures stable heat sealing across a batch, preventing under or over-sealing
- PLC control with touch screen interface allows quick setup and real-time monitoring of production parameters
- SUS304 stainless steel construction on main components ensures hygiene and durability in food processing environments
- Built-in connector for nitrogen flushing extends shelf life by reducing oxidation in coffee
- Measuring cup filler delivers consistent fill weight across 5 to 15 g per bag without manual adjustment
Application Scenarios
- Coffee roasters packaging Robusta beans in drip bags for retail or food service distribution
- Contract packers handling multiple coffee brands with short batch runs and frequent format changes
- Small to mid-sized roasters moving from manual packing to in-house automated drip bagging
- Producers requiring nitrogen flushing to preserve freshness in high-oil or roasted coffee blends
Who It Is For
- Coffee roasters transitioning from hand packing to automated drip bag production
- Contract packers serving multiple coffee brands with different bag sizes and fill weights
- Producers of Robusta and other coffee types needing a sealed inner filter bag with outer protection
- Buyers replacing older machines with inconsistent sealing or slow cycle times
Problems It Solves
- Manual inner and outer bag assembly causes inconsistent sealing and high labour cost
- Inaccurate bag length positioning leads to misaligned seals and film waste
- Older machines with basic thermostats produce variable seal quality across batches
- Lack of nitrogen flushing capability shortens shelf life of roasted coffee
- Separate machines for inner and outer bags increase floor space and complexity
- Non-stainless steel parts risk contamination in food-grade packaging environments
Technical Features
- Stepper motor controls outer bag length for precise positioning and repeatable results
- PID temperature controller for accurate and stable heat sealing across the sealing zone
- PLC control system with color touch screen for intuitive operation and parameter setting
- Main machine parts made of SUS304 stainless steel for food contact safety and corrosion resistance
- Imported cylinders ensure reliable and consistent mechanical performance
- Automatic conveyor system moves bags through the line without manual handling
- Dual sealing: inner bag sealed on three sides, outer bag sealed on three to four sides
- Measuring cup filler ensures consistent fill weight from 5 to 15 g per bag
- Reserved connector for nitrogen flushing machine to extend coffee shelf life
- Option to add date code printer for batch tracking and expiry marking
Specifications
| Machine model | C19II |
|---|---|
| Machine type | Drip Coffee Packaging Machine Series |
| Packing material | Paper/Plastic, Plastic/Aluminum/Plastic, Paper/Aluminum/Plastic, Filter paper |
| Sealing method | Inner: 3 sides sealing; Outer: 3/4 sides sealing |
| Filling system | Measuring cup filler |
| Package range | 5-15 g per bag |
| Packing speed | 40-60 bags/min |
| Inner bag size | L: 50-75 mm, W: 50-90 mm |
| Outer bag size | L: 85-120 mm, W: 75-100 mm |
| Inner bag film width | 180 mm |
| Outer bag film width | 200 mm |
| Power supply | Single phase, 220V, 50Hz, 3.7 kW |
| Machine weight | 400 kg |
| Machine dimension | 1200 x 900 x 1900 mm (L x W x H) |

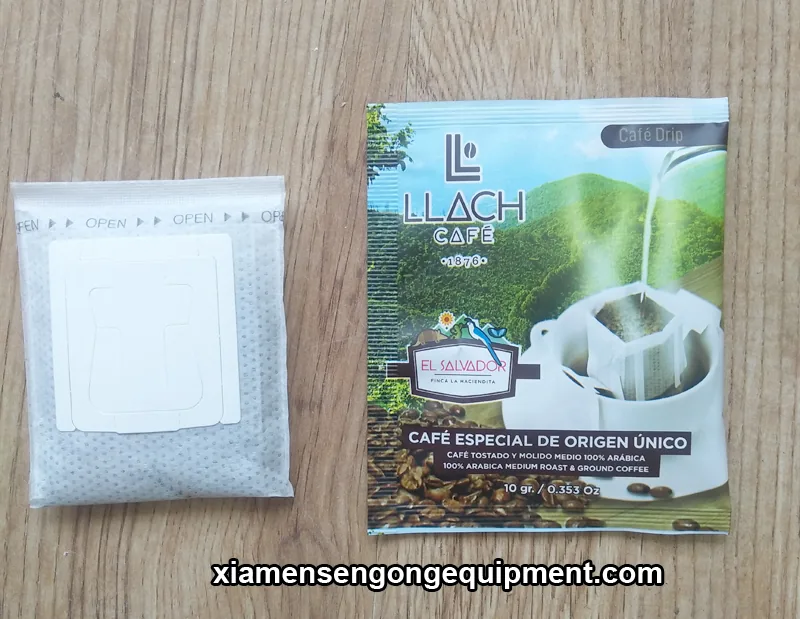

Packing Materials It Runs
- Paper/Plastic film for basic drip bags with moisture barrier
- Plastic/Aluminum/Plastic laminate for high barrier protection and shelf life
- Paper/Aluminum/Plastic laminate for premium coffee packaging with light and oxygen resistance
- Filter paper for inner bag to allow water flow during brewing
How the Machine Works
- 1Film unwinding and feeding into the forming station
- 2Inner bag formation and three-side sealing
- 3Measuring cup fills coffee into the inner bag
- 4Outer bag formation and three to four-side sealing
- 5Automatic conveyor moves the completed bag to discharge
- 6Optional nitrogen flushing via reserved connector during sealing
Quality Control Before Shipment
- S
- e
- a
- l
- i
- n
- t
- e
- g
- r
- i
- t
- y
- t
- e
- s
- t
- e
- d
- o
- n
- t
- h
- e
- o
- u
- t
- e
- r
- a
- n
- d
- i
- n
- n
- e
- r
- b
- a
- g
- s
- b
- e
- f
- o
- r
- e
- m
- a
- c
- h
- i
- n
- e
- s
- h
- i
- p
- m
- e
- n
- t
- F
- i
- l
- l
- i
- n
- g
- w
- e
- i
- g
- h
- t
- v
- e
- r
- i
- f
- i
- e
- d
- a
- c
- r
- o
- s
- s
- m
- u
- l
- t
- i
- p
- l
- e
- b
- a
- g
- s
- d
- u
- r
- i
- n
- g
- t
- e
- s
- t
- r
- u
- n
- t
- o
- c
- o
- n
- f
- i
- r
- m
- c
- o
- n
- s
- i
- s
- t
- e
- n
- c
- y
- S
- t
- e
- p
- p
- e
- r
- m
- o
- t
- o
- r
- p
- o
- s
- i
- t
- i
- o
- n
- i
- n
- g
- c
- h
- e
- c
- k
- e
- d
- f
- o
- r
- a
- c
- c
- u
- r
- a
- c
- y
- a
- c
- r
- o
- s
- s
- 5
- 0
- t
- o
- 1
- 2
- 0
- m
- m
- b
- a
- g
- l
- e
- n
- g
- t
- h
- s
- P
- I
- D
- t
- e
- m
- p
- e
- r
- a
- t
- u
- r
- e
- c
- o
- n
- t
- r
- o
- l
- c
- a
- l
- i
- b
- r
- a
- t
- e
- d
- t
- o
- m
- a
- i
- n
- t
- a
- i
- n
- s
- t
- a
- b
- l
- e
- s
- e
- a
- l
- i
- n
- g
- t
- e
- m
- p
- e
- r
- a
- t
- u
- r
- e
- S
- U
- S
- 3
- 0
- 4
- s
- t
- a
- i
- n
- l
- e
- s
- s
- s
- t
- e
- e
- l
- p
- a
- r
- t
- s
- i
- n
- s
- p
- e
- c
- t
- e
- d
- f
- o
- r
- s
- u
- r
- f
- a
- c
- e
- f
- i
- n
- i
- s
- h
- a
- n
- d
- w
- e
- l
- d
- q
- u
- a
- l
- i
- t
- y
Certifications
- ISO
- CE
Customization Options
- Choice of inner and outer bag size within the 50-75 mm and 85-120 mm length range
- Option to add a date code printer for batch marking and expiry tracking
- Reserved connector for nitrogen flushing machine to extend shelf life
- Power supply configured to match destination market voltage and plug type on request
- Film width and bag size adjusted via control panel without mechanical changeover
How It Compares
| Separate inner and outer bag machines | The C19II combines both steps into one line, reducing floor space and operator handling, but requires a single machine footprint of 1200 x 900 mm |
|---|---|
| Manual drip bag assembly | The C19II replaces hand filling and sealing with consistent automation, but needs a 220V 50Hz power supply and compressed air if nitrogen is used |
| Basic thermal sealing machine | The C19II uses PID temperature control for stable sealing, while older models may have inconsistent heat application |
Use Guide
- 1Connect a clean dry power supply at single phase 220V 50Hz and 3.7 kW
- 2Load the chosen film roll (180 mm inner, 200 mm outer) and align it with the forming guide
- 3Set inner and outer bag sizes within the 50-75 mm and 85-120 mm range via the touch screen
- 4Enter target fill weight between 5 and 15 g and calibrate the measuring cup with actual coffee
- 5Run 10 sample bags and check seal quality, fill weight and bag length before batch start
- 6If using nitrogen, connect the nitrogen flushing machine to the reserved connector before sealing
C19II Drip Bag Robusta Coffee Packing Machine FAQ
What is the fill weight range for the C19II?
5 to 15 grams per bag, set via the measuring cup filler and confirmed on the touch screen interface.
How fast does it run?
40 to 60 bags per minute, depending on bag size, fill weight, and coffee flow rate.
Can it seal plastic/aluminum/plastic film?
Yes. It supports multiple laminates including Plastic/Aluminum/Plastic and Paper/Aluminum/Plastic.
Is nitrogen flushing possible?
Yes. The machine has a reserved connector to link with a nitrogen making machine for flushing.
What power supply does it need?
Single phase 220V 50Hz, 3.7 kW. We can adjust the voltage and plug type for your market.
How much space and lifting capacity do I need?
The machine measures 1200 x 900 x 1900 mm and weighs 400 kg, so plan for forklift access and doorway clearance.
Is the machine certified?
Sengong is certified to ISO and CE. Certificates are available upon request via email or WhatsApp.
