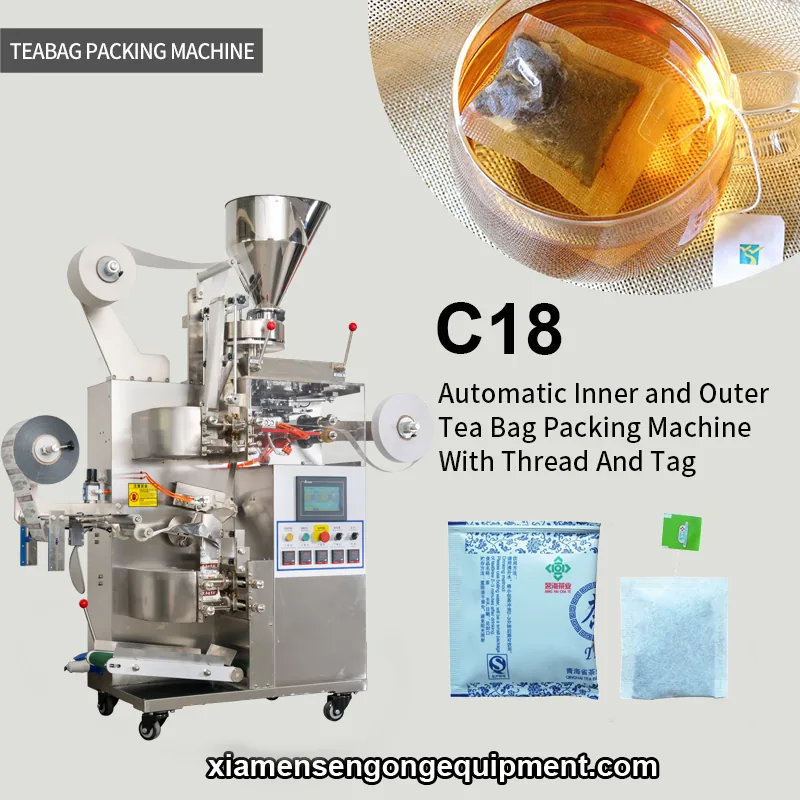

C18 automatic tea bag packing machine with filter paper and composite film feeding system

Complete inner and outer tea bags with threaded tag produced by the C18 machine

C18 machine showing photoelectric positioning system for tag alignment

Tea bags with visible outer envelope and tag from the C18 packing line

Side view of the C18 machine with control panel and material rolls

Filter Paper Tea Bag Packing Machines · Model C18

C18 Automatic Black Tea Small Scale Tea Bag Machine

The C18 automatically forms, fills and seals inner and outer tea bags from filter paper and composite film materials, running 40 to 60 bags per minute at 3 to 15 ml per bag. It is designed for small-scale tea producers and blenders who need consistent packaging of black tea, medicinal tea and health tea in a sealed outer envelope with a threaded tag. The machine forms both inner and outer bags simultaneously, uses photoelectric positioning for tag alignment, and supports multiple material combinations including paper, plastic and aluminum layers.

Forms inner and outer tea bags at the same time, reducing manual handling and contamination risk
Photoelectric positioning ensures accurate tag placement on every bag
Adjustable inner and outer bag sizes to match different product formats and branding needs
Volumetric cup filling delivers consistent fill volume across 3 to 15 ml range

Key Benefits

Forms inner and outer tea bags at the same time, reducing manual handling and contamination risk
Photoelectric positioning ensures accurate tag placement on every bag
Adjustable inner and outer bag sizes to match different product formats and branding needs
Volumetric cup filling delivers consistent fill volume across 3 to 15 ml range
Supports multiple material layers including paper, plastic and aluminum for barrier and shelf-life needs
Thread and tag attachment is optional, allowing flexible configuration for different market requirements

Application Scenarios

Small tea producers packaging black tea in branded outer envelopes for retail sale
Medicinal tea manufacturers needing sealed outer packaging for product safety and shelf appeal
Health tea brands running short batches with varying bag sizes and tag designs
Contract packers handling multiple tea lines with quick format changeover between products

Who It Is For

Small to medium tea producers moving from hand packing to automated inner and outer bagging
Blenders who need a sealed outer envelope to protect tea from moisture and light
Brands requiring a professional appearance with a threaded tag and outer envelope
Producers who need to avoid direct contact with packaging materials during operation

Problems It Solves

Manual inner and outer bag assembly causes inconsistent sealing and increases contamination risk
Incorrect tag placement on hand-packed bags leads to poor brand image and customer complaints
Lack of barrier layers in single-layer packaging shortens shelf life for sensitive tea blends
Inconsistent fill volume from manual filling leads to overfilling or underfilling per bag
No integrated system for forming both inner and outer bags results in multiple machines and floor space

Technical Features

Automatic simultaneous formation of inner and outer tea bags
Photoelectric positioning for precise tag placement on the outer envelope
Volumetric cup filling with 3 to 15 ml capacity per bag
Adjustable inner bag size from 50 to 70 mm length and 40 to 80 mm width
Adjustable outer bag size from 70 to 120 mm length and 60 to 90 mm width
Tag size adjustable from 20 to 24 mm length and 40 to 55 mm width
Thread length fixed at 155 mm with optional tag attachment
Supports multiple material combinations: paper/plastic, plastic/plastic, plastic/aluminum/plastic, paper/aluminum/plastic, tea filter paper

Specifications

Machine model	C18
Machine type	Tea Bag Packing Machine Series
Packing material	Paper/Plastic, Plastic/Plastic, Plastic/Aluminum/Plastic, Paper/Aluminum/Plastic, Tea filter paper, Thread, Tag paper
Measuring method	Measuring cup filler
Filling range	3-15 ml per bag
Packing speed	40-60 bags/min
Inner bag size	L: 50-70 mm, W: 40-80 mm
Outer bag size	L: 70-120 mm, W: 60-90 mm
Tag size	L: 20-24 mm, W: 40-55 mm
Thread length	155 mm
Power supply	220V, 50Hz, 3.7 kW
Dimension	1250 x 700 x 1800 mm (L x W x H)
Machine weight	500 kg

Packing Materials It Runs

Tea filter paper for inner bags with thread and tag attachment
Composite paper for outer bags with barrier properties
Plastic layers for moisture and light resistance
Aluminum layers for enhanced barrier protection
Thread for tag attachment, 155 mm long
Tag paper for branded or custom information

How the Machine Works

1Film and material feeding for inner and outer bag formation
2Volumetric cup filling with 3 to 15 ml accuracy
3Simultaneous sealing of inner and outer bags
4Photoelectric positioning for tag alignment
5Tag and thread attachment (optional)
6Final discharge of complete tea bag unit

Quality Control Before Shipment

Certifications

Customization Options

Adjustable inner and outer bag sizes to match product and branding needs
Choice of material combinations including paper, plastic, aluminum and multi-layer films
Optional thread and tag attachment based on customer preference
Tag size and position adjusted within the 20-24 mm length and 40-55 mm width range
Power supply configured to destination market voltage and plug type on request

How It Compares

Manual inner and outer bag assembly	The C18 replaces hand packing with consistent, faster output and reduced contamination risk, but requires a fixed power and air supply
Single-layer filter paper bag machine	The C18 adds an outer envelope and barrier layers for better shelf life and brand protection, but uses more material and space
Flat bag machine with separate outer wrapping	The C18 integrates inner and outer bag formation into one process, reducing machine count and floor space, but requires more setup for multi-layer films

Use Guide

1Connect a single phase 220V 50Hz power supply and ensure stable voltage
2Load the selected inner and outer bag materials into the feeding system
3Set the inner bag size to 50-70 mm length and 40-80 mm width based on your product
4Set the outer bag size to 70-120 mm length and 60-90 mm width for your packaging format
5Adjust the volumetric cup to 3 to 15 ml fill volume and calibrate with your tea
6Enable photoelectric positioning for tag alignment and test a few bags before batch run
7Clean the filling cup and sealing area between product changes to avoid cross-contamination
