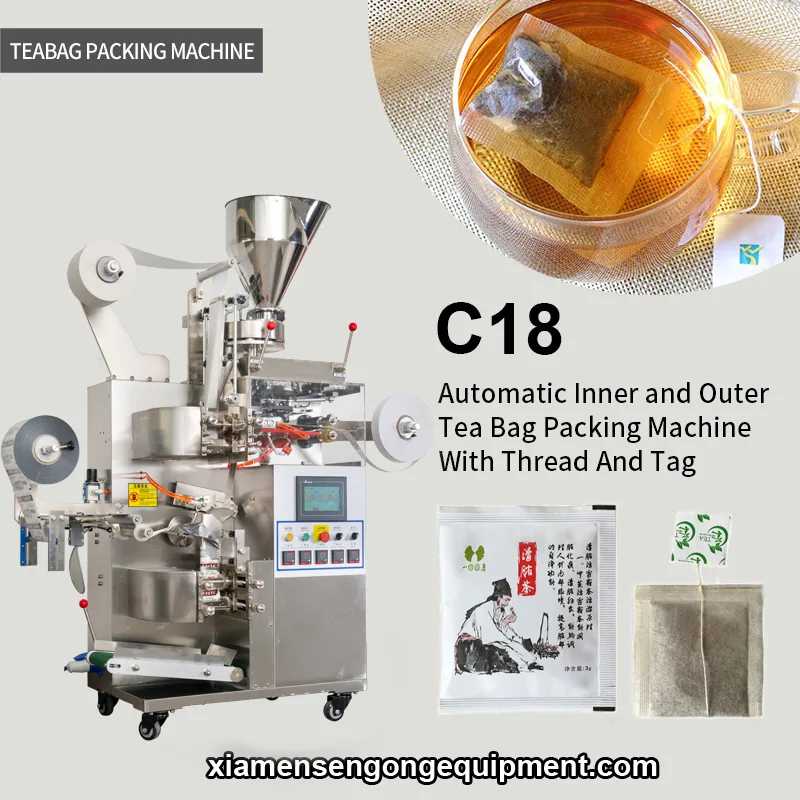

C18 full automatic inner and outer filter paper tea bag packing machine with control panel and film rolls

Inner and outer tea bags with thread and tag produced on the C18 machine

Photoelectric sensor and tag positioning system on the C18 tea bag packing machine

Side view of the C18 machine showing inner bag forming and outer envelope sealing

Close-up of the volumetric cup filler and fill volume adjustment on the C18 tea bag machine

Filter Paper Tea Bag Packing Machines · Model C18

C18 Full Automatic Inner and Outer Filter Paper Black Tea Machine

The C18 automatically forms, fills and seals inner and outer tea bags from a single roll of filter paper and composite material, running 40 to 60 bags per minute at 3 to 15 ml per bag. It is built for tea blenders and contract packers who need to package small granular tea blends in a two-layer structure with a thread and tag. The machine uses a volumetric cup filler and heat sealing, with photoelectric positioning for accurate tag placement and outer envelope formation.

Inner and outer bag formed simultaneously to reduce handling and contamination risk
Photoelectric positioning ensures consistent tag placement on every bag
Volumetric cup filling delivers repeatable 3 to 15 ml per bag with no manual adjustment
Adjustable inner and outer bag sizes to match different product formats and branding needs

Key Benefits

Inner and outer bag formed simultaneously to reduce handling and contamination risk
Photoelectric positioning ensures consistent tag placement on every bag
Volumetric cup filling delivers repeatable 3 to 15 ml per bag with no manual adjustment
Adjustable inner and outer bag sizes to match different product formats and branding needs
Thread and tag attachment is optional, allowing flexible configuration for different markets
Single operator can manage the line after setup, replacing manual packing teams

Application Scenarios

Tea blenders packaging black tea in a two-layer format for retail or gift sets
Contract packers producing multiple tea brands with different bag sizes and tag designs
Health tea producers needing a sealed inner bag with a branded outer envelope
Export-focused producers requiring consistent tag alignment for international retail standards

Who It Is For

Tea blenders moving from hand packing to in-house automatic inner and outer bagging
Contract packers serving multiple tea brands with varying bag sizes and tag styles
Producers who need a two-layer bag structure to protect tea from moisture and light
Buyers replacing a manual or semi-automatic system that cannot handle consistent tag alignment

Problems It Solves

Manual inner and outer bagging leads to inconsistent fill volume and tag misalignment
Single-layer bagging does not provide the moisture barrier or premium appearance of a double layer
Lack of photoelectric positioning causes tag placement errors across batches
Inconsistent inner bag size reduces product consistency and brand image
Hand threading and tagging slows output and increases labor cost

Technical Features

Automatic simultaneous formation of inner and outer tea bags
Volumetric cup filling with 3 to 15 ml per bag accuracy
Heat sealing with photoelectric positioning for tag and outer envelope alignment
Adjustable inner bag size from 50 to 70 mm length and 40 to 80 mm width
Adjustable outer bag size from 70 to 120 mm length and 60 to 90 mm width
Tag size adjustable from 20 to 24 mm length and 40 to 55 mm width
Thread length fixed at 155 mm with optional attachment
Runs on single phase 220V 50Hz at 3.7 kW with air supply at 0.6 MPa

Specifications

Machine model	C18
Machine type	Tea Bag Packing Machine Series
Packing material	Paper/Plastic, Plastic/Plastic, Plastic/Aluminum/Plastic, Paper/Aluminum/Plastic, Tea filter paper, Thread, Tag paper
Measuring method	Measuring cup filler
Filling range	3-15 ml per bag
Packing speed	40-60 bags/min
Inner bag size	L: 50-70 mm, W: 40-80 mm
Outer bag size	L: 70-120 mm, W: 60-90 mm
Tag size	L: 20-24 mm, W: 40-55 mm
Thread length	155 mm
Power supply	220V, 50Hz, 3.7 kW
Dimension	1250 x 700 x 1800 mm (L x W x H)
Machine weight	500 kg

Packing Materials It Runs

Tea filter paper for inner bag with thread and tag attachment
Composite paper for outer bag with moisture and light barrier
Plastic/Plastic, Plastic/Aluminum/Plastic, Paper/Aluminum/Plastic laminates for outer envelope
Thread for bag tie, 155 mm long
Tag paper for product identification and branding

How the Machine Works

1Film roll unwinding and inner bag forming
2Volumetric cup filling with 3 to 15 ml per bag
3Inner bag sealing and thread/tag attachment (optional)
4Outer bag forming and photoelectric positioning for tag alignment
5Outer envelope sealing and final bag discharge

Quality Control Before Shipment

Certifications

Customization Options

Inner and outer bag sizes adjusted to match specific product format and branding
Tag size and position set using photoelectric positioning for consistent output
Thread and tag attachment configured as optional or standard based on order
Power supply voltage and plug type arranged for the destination market on request
Air compressor supplied with the machine where site air is not available

How It Compares

Single-layer filter paper tea bag machine	The C18 provides a sealed inner bag with a branded outer envelope, improving shelf life and premium appearance, but requires more setup time and material input
Manual inner and outer bagging	The C18 replaces a hand-filling team and ensures consistent fill and tag placement, but requires a fixed footprint of 1250 x 700 mm and trained operator
Flat bag machine with separate sealing	The C18 forms both bags at once and uses photoelectric positioning for tags, while flat bag machines require sequential steps and may miss alignment

Use Guide

1Connect a clean dry air supply at 0.6 MPa and a single phase 220V 50Hz outlet
2Load the filter paper roll for the inner bag and composite material for the outer envelope
3Set inner and outer bag dimensions to match your product size using the control panel
4Enter target fill volume between 3 and 15 ml and calibrate the volumetric cup with your tea
5Enable photoelectric positioning and test tag alignment with a sample run
6Run ten sample bags and check fill volume, seal integrity, and tag placement before batch start
