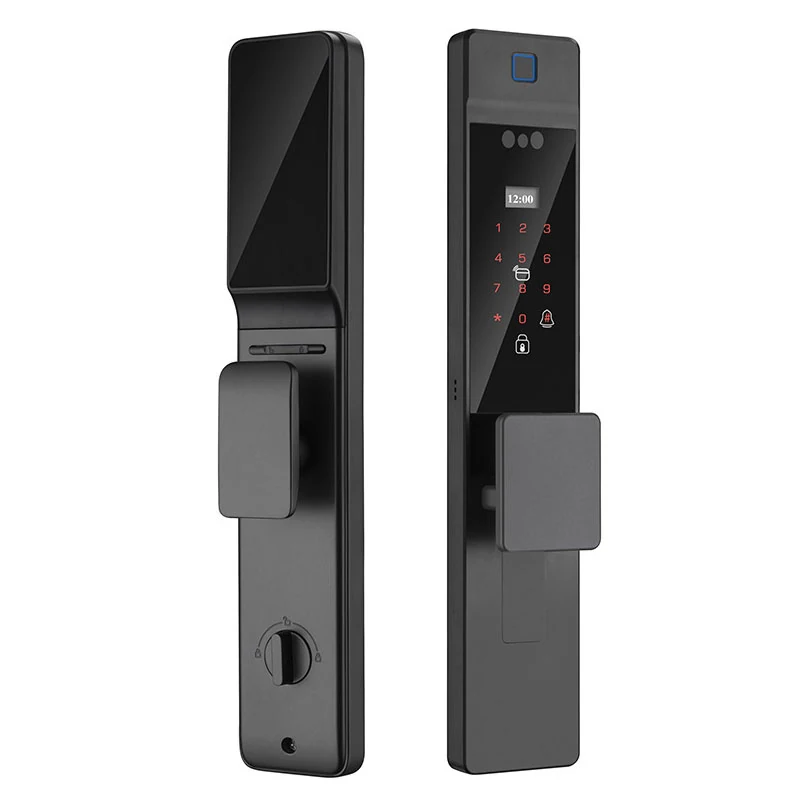

Submarine Waterproof Smart Lock, front and rear panel

Smart Door Lock · Model Submarine

Submarine Waterproof Smart Lock

IP68 antifreeze 3D face lock for exposed entrances

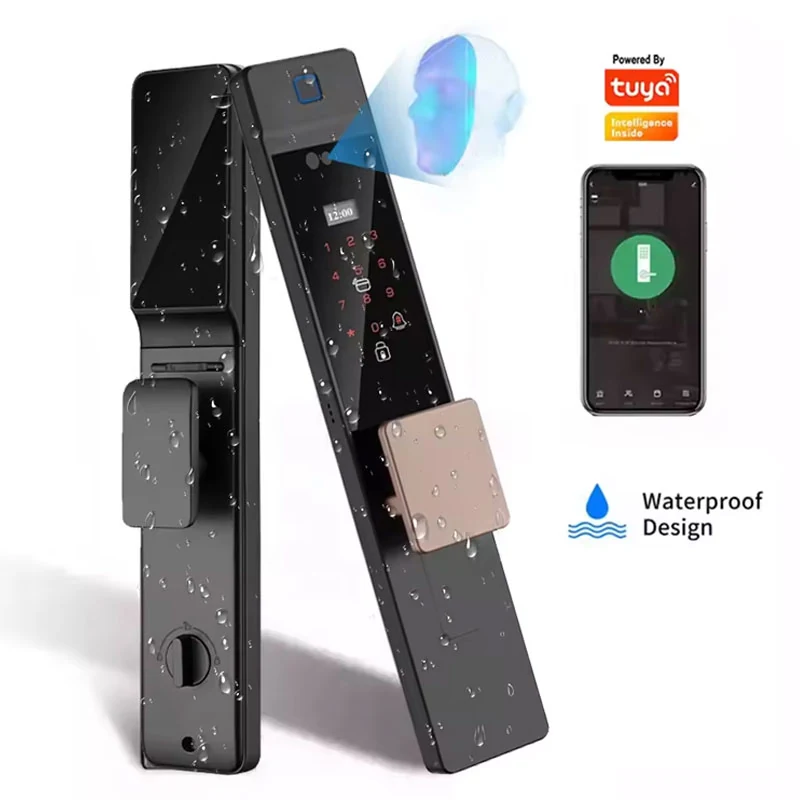

Submarine is the model for doors that take weather. It carries an IP68 waterproof rating with strong antifreeze properties and high temperature resistance, so the same unit can be specified for freezing winters and heavy rain. Access is by 3D facial recognition, fingerprint, touchscreen password, RFID card, mechanical key or Tuya app.

IP68 rating with antifreeze and high temperature resistance, suitable for any region
145 degree infrared face recognition works at night and reaches children of lower height
Photos and moulds are rejected by the recognition system
Three-tier user hierarchy separates main users, standard users and time-limited users
Micro USB emergency power input if the batteries run out

Get a quote on WhatsApp Email the spec sheet request

Suitable for: Buyers specifying entrances exposed to rain, snow or extreme heat, and Tuya ecosystem integrators.

Problems it solves

What this model is for

Standard smart locks failing on exposed or coastal entrances
Face locks that stop recognising users after dark
Shared properties where every user otherwise gets the same level of access
Being locked out by a flat battery

Typical applications: Exposed exterior house doors, Properties in cold or high-humidity climates, Tuya-based smart home installations.

Specification

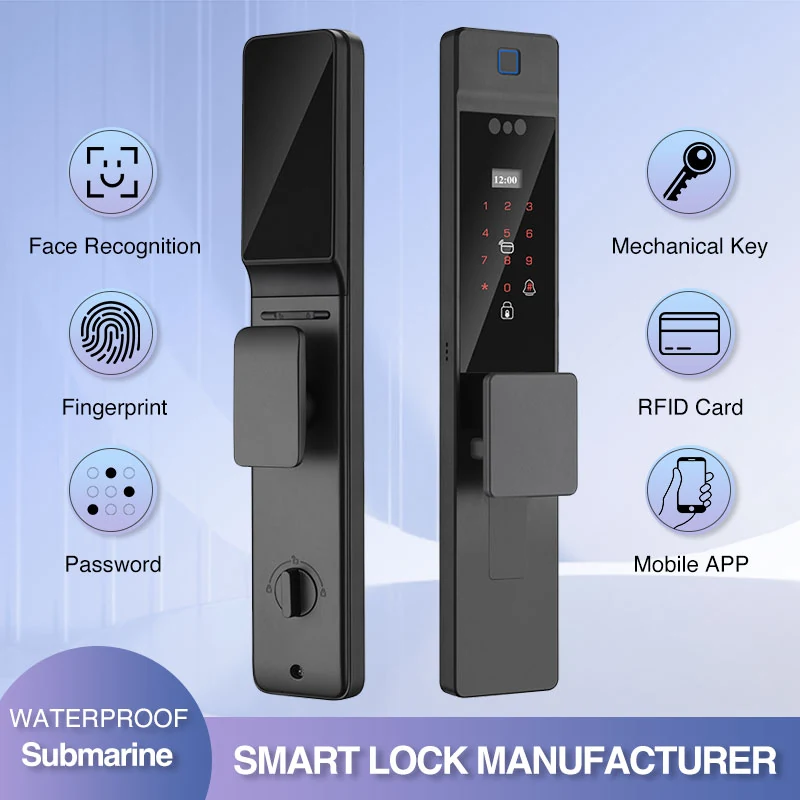

Unlocking methods	3D facial recognition, fingerprint, touchscreen password, RFID card, mechanical key, app control

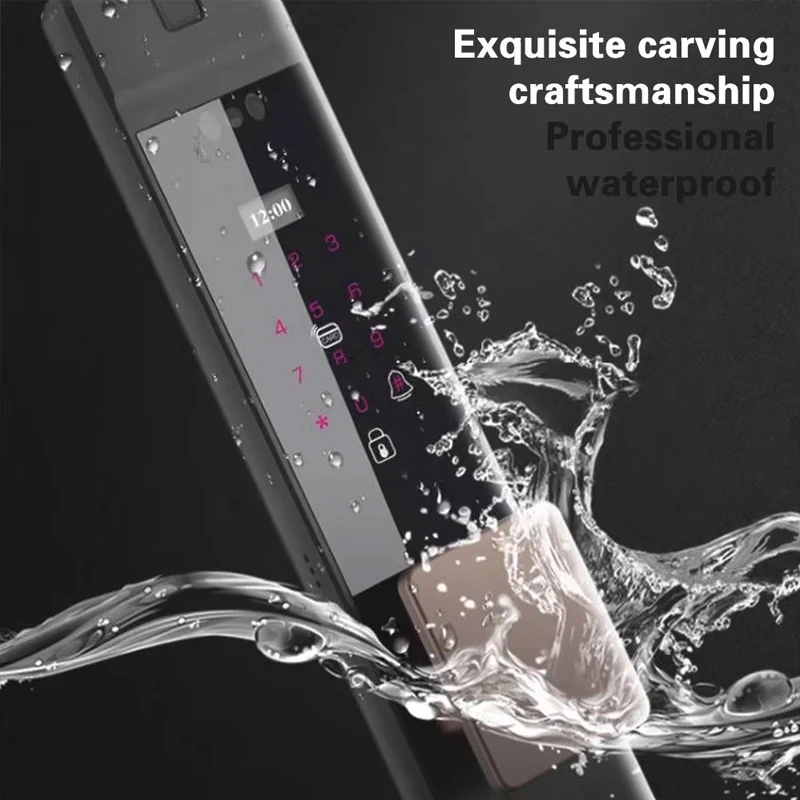

Ingress rating	IP68, waterproof, snow proof, antifreeze
Face recognition	145 degree infrared light, night capable, anti-photo and anti-mould
User capacity	10 main users and 50 standard users
Credential storage	Up to 100 passwords, 100 cards or 100 fingerprints
Lockout	90 seconds after five consecutive incorrect attempts
Power supply	6.8V-8.4V lithium battery, included
Emergency power	Micro USB interface
Fingerprint module	Semiconductor, suited to elderly and child users
Door types	Wooden door, metal door, household door
Platform	Tuya integration

Quality control

Waterproofing and cold resistance are the defining claims on this model, so sealing integrity is the focus of inspection. Lockout timing and low power behaviour are verified on the line.

Customization

We can customize production according to your requirements, OEM and ODM. Door opening direction is selectable in the lock system during setup.

How it compares

Take Submarine over the D-series face locks when the door is exposed to weather. The D-series is specified for sheltered residential entrances; Submarine trades the video doorbell for an IP68 sealed body.

Installation and use

Set the door opening direction in the lock system at commissioning. Enrol main users first, then standard and time-limited users, so the hierarchy is correct from day one. Press the doorbell key on the lock to send a visitor image to the app.
