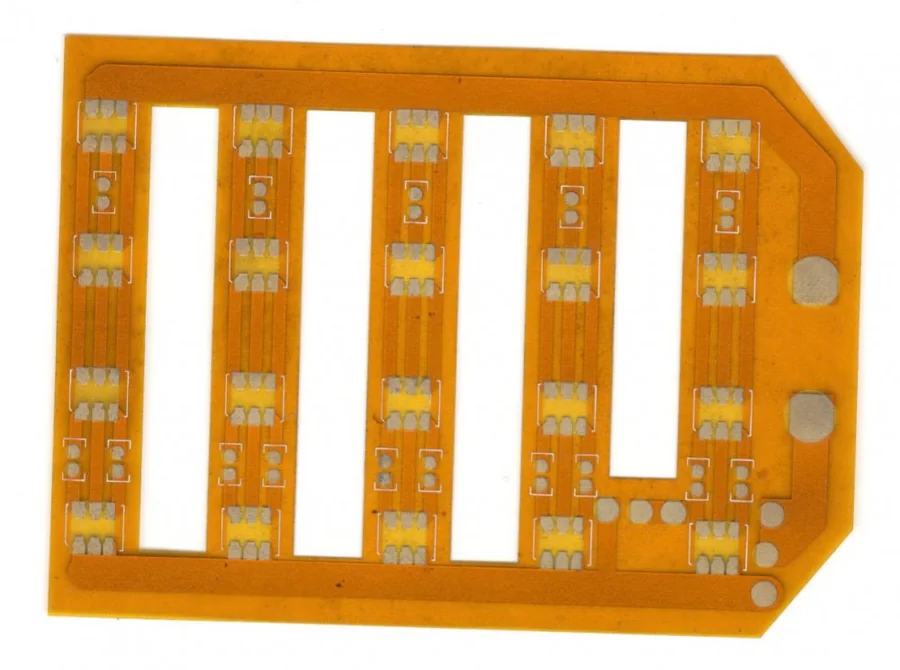

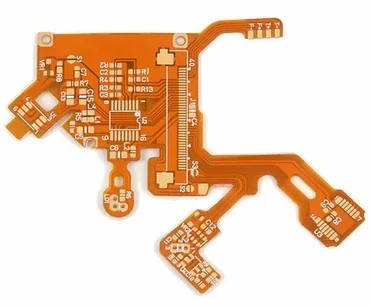

1 Layer Flex Board

Product Overview

FPC flexible circuit board is a kind of highly reliable and excellent flexible printed circuit board made of polyimide or polyester film as the base material. It has the characteristics of high wiring density, light weight, thin thickness and good bendability.

In the production process, in order to prevent excessive opening and short circuits from causing too low yield or reducing rough process problems such as drilling, rolling, cutting, etc., the FPC board is scrapped and refilled, and how to select materials to achieve customer use The best effect flexible circuit board. Prenatal pretreatment is especially important.

Pre-natal pretreatment, there are three aspects that need to be dealt with, and all three aspects are completed by engineers. The first is the FPC board engineering evaluation, which mainly evaluates whether the customer’s FPC board can be produced, whether the company’s production capacity can meet the customer’s board-making requirements and unit cost; if the engineering evaluation is passed, the next step is to prepare materials immediately to meet each production link Finally, the engineer processes the customer’s CAD structure drawing, gerber line data and other engineering documents to suit the production environment and production specifications of the production equipment, and then delegates the production drawings and MI (engineering process card) to the The production department, document control, purchasing and other departments enter the regular production process.

Double panel system

1. Cutting
2. Drilling
3. PTH
4. Plating
5. Pre-treatment
6. Pasting Dry Film
7. Alignment
8. Exposure
9. Development
10. Graphic Plating
11. Stripping
12. Pretreatment
13. Pasting Dry Film
14. Positioning Exposure
15. Development
16. Etching
17. Stripping
18. Surface Treatment
19. Paste the cover film
20. Pressing
21. Curing
22. Immersion of nickel gold
23. Printing characters
24. Shearing
25. Electrical test
26. Punching
27. Final inspection
28. Packaging
29. Shipment

Single panel system

1. Cutting
2. Drilling
3. Pasting Dry Film
4. Aligning
5. Exposure
6. Developing
7. Etching
8. Stripping
9. Surface Treatment
10. Covering Film
11. Pressing
12. Curing
13. Surface Treatment
14. Immersion Nickel Gold
15. Printing Characters
16. Cutting
17. Electrical Measurement
18. Punching Cutting
19. final inspection
20. packaging
21. shipment

Features

Because it is thin, it can be bent freely, and the assembly space can be effectively used.

It has excellent repeated buckling, which can save the wiring space of the working part.

Has a good followability to the uneven parts

Specifications

Materials We Run

Rogers, Arlon, Taconic, TP-2, Megtron, Neclo, Isola, F4B, Taiyao TUC, Taiguang EMC, Tenghui VT, Shengyi SY, Lianmao ITEQ, Nanya NOUYA, DuPont Kapton, Taihong, Hongren, Xinyang, etc.

Surface Finishing

We have experience on processing HAL, LF-HAL, ENIG, Immersion Tin/Silver, Flash hard/soft gold, OSP surface finishing, SMOBC. Carbon Ink and Peel able Mask.

Quality Control

Outgoing inspection is carried out to IPC-A-600G or customer specification. Finished product complies with IPC-A-600 and IPC-6012.

All inspection equipment
