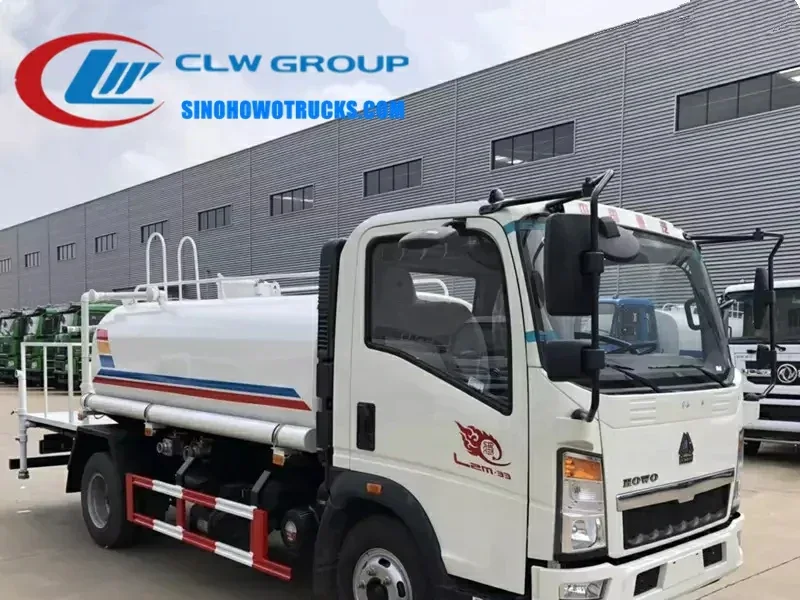

Sinotruk HOWO 5cbm small water truck in light grey with rear working platform and spray nozzles

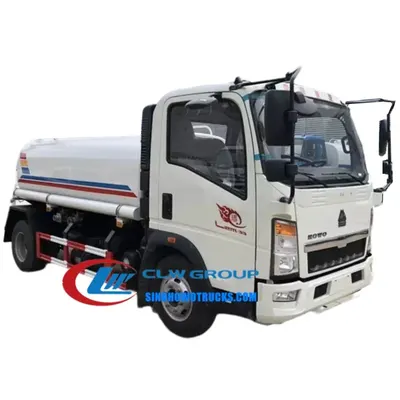

Rear view of the HOWO water truck showing the working platform, fire connector, and spray nozzles

Side view of the HOWO water truck with front and rear spray systems and 7.00R16 tires

Sinotruk Howo 5cbm small water truck Djibouti

Name: Sinotruk Howo 5cbm small water truck Djibouti
Brand: Sinotruk HOWO

The Sinotruk HOWO 5cbm small water truck is a 5000 litre water transport vehicle built on a 4x2 HOWO chassis, designed for delivering potable water, road cleaning, agricultural irrigation, and drought relief in urban and rural environments. It is specified by municipal water departments, construction contractors, and agricultural operators that need a compact, reliable truck to move water over unpaved roads and short distances without requiring a large infrastructure. The truck carries a carbon steel tank with a 5mm thickness and is equipped with a rear working platform, suction pipe, and water pump for efficient filling and discharge.

Request A Quote Email Specification

Key Benefits

5000 litre carbon steel tank with 5mm thickness resists deformation and corrosion during frequent filling and emptying
YN4100QBZL 110hp diesel engine meets Euro 3 emission standards and delivers reliable performance for short hauls
Rear working platform with water pump and fire connector enables direct water delivery at job sites
Front and rear spray nozzles allow road washing and dust suppression without additional equipment
4x2 HOWO chassis provides stable handling on rough terrain and unpaved access roads
Suction pipe and gravity valve allow rapid filling from open sources like rivers or reservoirs

Buyer Profile

Who It Is for

Municipal water departments and public works agencies in developing regions
Construction and quarry contractors managing dust and water needs on site
Agricultural cooperatives and irrigation managers in drought-prone areas
Emergency response teams during natural disasters requiring rapid water transport
Municipal sanitation departments for street cleaning and environmental protection
Private water haulers supplying water to remote industrial or residential zones

Operating Problems

Problems It Solves

Lack of piped water infrastructure in remote or newly developed areas
High cost of installing permanent water lines for temporary or seasonal needs
Inadequate dust control on unpaved roads during construction or dry seasons
Slow water delivery from fixed tanks due to lack of mobile pumping capability
Limited access to water sources that are not connected to a central supply
Need for a multi-purpose vehicle that can carry water, spray roads, and irrigate fields

Where It Works

Application Scenarios

Municipal water supply teams delivering drinking water to remote villages with no piped network
Construction sites needing water for dust control and concrete mixing in dry climates
Agricultural operations using the truck for irrigation in fields without permanent water lines
Drought relief operations in arid regions where water must be transported over long distances
Road maintenance crews using the front and rear sprayers to clean streets and suppress dust
Farmers applying water to high trees or orchards using the rear high cannon for vertical reach

Engineering

Technical Features

4x2 HOWO chassis with single row cabin and left hand drive for local traffic compliance
YN4100QBZL 110hp diesel engine, 3298ml displacement, Euro 3 emission standard
5 forward, 1 reverse manual transmission with 7.00R16 tires and spare
5000 litre carbon steel water tank with 5mm wall thickness and internal welds
Water pump with suction pipe and gravity valve for fast filling from open sources
Rear working platform with fire connector and mounting points for spray nozzles
Front and rear spray nozzles for road cleaning and dust suppression
Max speed of 90 km/h suitable for short-distance urban and rural transport
Overall dimensions of 5950 x 2000 x 2450 mm for tight maneuvering in narrow areas
Gross vehicle weight of approximately 7470 kg and net weight of approximately 3470 kg

Specifications

Technical Data


Chassis	Sinotruk HOWO 4x2
Engine	China Yunnei Power YN4100QBZL, 110hp, diesel
Transmission	5 forward, 1 reverse, manual
Overall Dimensions	5950 x 2000 x 2450 mm
Water Tank Capacity	5000 L
Pump	Standard water pump with suction pipe
Spray Function	Front and rear spray, left and right side spray
Working Platform	Rear platform with fire connector
Tires	7.00R16, 6 pcs with spare
Max Speed	90 km/h
Gross Vehicle Weight	Approx. 7470 kg
Net Weight	Approx. 3470 kg
Loading Capacity	Approx. 5000 kg
Wheelbase	3360 mm
Cab Configuration	Single row, 2-3 passengers, power steering, no air conditioner
Drive Configuration	Left hand drive
Lead Time	20 days
Shipping Port	China main port
Payment	T/T

Build Materials

Materials

Aluminium alloy components on the rear working platform and spray nozzles for corrosion resistance
Rubber seals on the manhole and valve connections to prevent leaks
Steel frame and substructure for the water tank and pump mounting
Stainless steel fittings available on request for potable water applications

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk and inspected for correct wheelbase and drive configuration
Tank shell is cut, rolled, and welded with internal clapboards to reduce surge
Tank is pressure tested and leak tested before welding is completed
Pump and suction pipe are mounted and aligned to the driveline
Rear working platform and spray nozzles are assembled and secured to the subframe
Cabin and body are painted in fire service red or customer specified colour
Final assembly includes electrical wiring, gauges, and control switches
All systems are tested on the factory apron including pump flow, spray pattern, and filling speed

Testing

Quality Control

Every truck undergoes 100 percent testing before delivery
Tank is pressure tested and leak tested in-house to ensure no defects
Pump and spray systems are tested for flow rate, pressure, and nozzle alignment
Photos and videos of the finished truck are sent to the buyer before balance payment
Compliance with GB39.5 general specification for water tanker vehicles
All welds inspected using non-destructive testing methods for structural integrity

Build to Order

Customization Options

Tank material can be changed from carbon steel to stainless steel for potable water
Tank colour and logo applied free of charge to match customer branding
Spray nozzle configuration can be adjusted for front, rear, or side spray patterns
Rear platform can be modified to carry additional equipment like hoses or nozzles
Left or right hand drive chassis available based on local traffic rules
Manufacture to customer supplied technical drawings and specifications

Comparison

How It Compares With the Alternatives

8x4 water tanker with 10000 L tank	Higher capacity but less maneuverable in narrow urban streets and higher fuel cost
Used water truck with no pump	Lower initial cost but requires external pump for filling and slower discharge
Water truck with only front spray	Limited cleaning coverage; rear and side sprayers improve efficiency in road maintenance

Operating Notes

Use Guide

Confirm left or right hand drive at order stage to match local traffic regulations
Fill the tank only through the manhole or suction pipe to prevent contamination
Use the gravity valve to drain the tank completely after use in freezing conditions
Prime the pump before first use and check for air locks during operation
Inspect the rear platform and spray nozzles before each use to ensure clear flow
Free operator training is available at the factory before shipment

Buyer Questions About This Truck

What is the lead time for this water truck?

Generally 20 days after the advance payment is received. The exact date depends on chassis availability and equipment list.

What are your payment terms?

T/T with 30 percent as deposit and 70 percent before delivery. Photos and videos of the finished truck are sent before the balance is paid.

Do you supply right hand drive?

Yes. The chassis is ordered in left or right hand drive to match local traffic rules. Confirm this at order stage.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year. Core parts on some products are guaranteed for two years. Overseas engineers make regular return visits and provide technical training before delivery.

Can the spray system be modified?

Yes. The front, rear, and side spray nozzles can be adjusted or removed based on your operational needs. Send your layout preference at order stage.
