Home/ All Trucks/ Asphalt Synchronous Chip Sealer Truck/Sinotruk Howo 24m3 Asphalt Spreader and Distributor Truck Tanzania

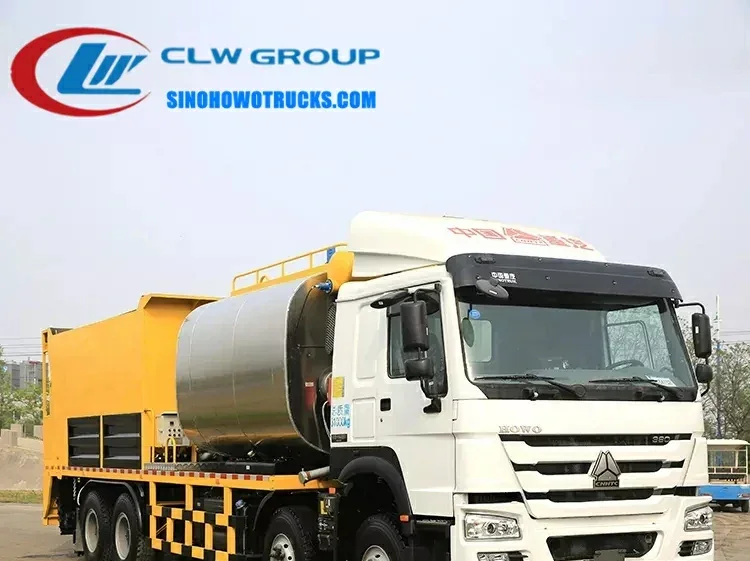

Sinotruk HOWO 24m3 asphalt spreader and distributor truck in operation with asphalt spray and gravel spreading

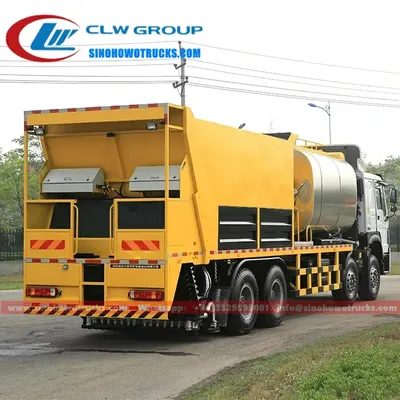

Rear view of the HOWO asphalt spreader showing the 14m3 gravel silo and 10m3 asphalt tank

Cab interior of the HOWO asphalt spreader with touch screen control panel and dual system interface

Asphalt Synchronous Chip Sealer Truck

Sinotruk Howo 24m3 Asphalt Spreader and Distributor Truck Tanzania

Name: Sinotruk Howo 24m3 Asphalt Spreader and Distributor Truck Tanzania
Brand: Sinotruk HOWO

The Sinotruk HOWO 24m3 Asphalt Spreader and Distributor Truck is a dual-tank vehicle built on an 8x4 HOWO chassis for simultaneous asphalt binder spraying and aggregate spreading. It is designed for road maintenance and chip sealing operations in regions with limited access to centralized paving plants, such as rural highways, feeder roads, and urban repair zones in developing markets. The truck delivers consistent, high-coverage application with adjustable spray width and real-time control of bitumen flow based on vehicle speed. It operates in environments where road surfaces are exposed to heavy traffic, extreme heat, and frequent maintenance cycles.

Request A Quote Email Specification

Key Benefits

10m3 asphalt tank with 50mm insulation and 1mm outer stainless steel for stable temperature control
14m3 gravel silo uses gravity flow for consistent stone distribution without mechanical agitation
32 nozzles with individual computer control allow precise, adjustable spray width from 2 to 6 metres
Dual control system with cab touch screen and rear platform backup ensures reliable operation
Full Power PTO drives the asphalt pump and burner system for continuous operation
WD615.47 engine delivers 371 HP with Euro II emissions and long service intervals
371 HP engine and 10-speed manual gearbox handle heavy loads on unpaved and uneven terrain
Automatic blowing device clears asphalt residue from the tank and lines after use
Insulated tank maintains asphalt temperature within two degrees per hour during transport

Buyer Profile

Who It Is for

Municipal and regional road authorities in East Africa and Sub-Saharan Africa
Contractors bidding on road maintenance and chip sealing tenders in developing countries
National transport departments managing rural and feeder road networks
Private road maintenance firms operating in low infrastructure regions
Government agencies equipping local road units with durable, low-maintenance vehicles
Infrastructure development contractors working on road upgrades in remote areas

Operating Problems

Problems It Solves

Lack of access to centralized asphalt plants forces long transport times and material cooling
Inconsistent spray patterns from manual or single-point distributors lead to poor bonding
High maintenance costs from poorly insulated tanks and mechanical failures in hot climates
Limited control over aggregate spread rate causes uneven surface texture and premature wear
Single control point leads to operator error and inconsistent application quality
High downtime due to clogged lines or uncontrolled temperature drop in the asphalt tank

Where It Works

Application Scenarios

Rural road maintenance teams in Tanzania and East Africa with no access to fixed paving plants
Municipal road repair crews working on feeder roads and secondary highways with high traffic wear
Contractors performing chip sealing on newly laid asphalt surfaces to improve skid resistance
Emergency resurfacing after heavy rains or flood damage on unpaved or partially paved roads
Road rehabilitation projects in remote mining or agricultural zones where transport is limited
Public works departments managing seasonal road maintenance with tight budgets and limited equipment

Engineering

Technical Features

32 nozzles with independent computer control allow real-time adjustment of spray width and flow
Dual control system: cab touch screen and rear platform with backup function
Triple gear pump CPC4-50-20-16 with proportional valve EFRD-G03-160-05-31 for precise flow regulation
Asphalt pump QGB950 driven by 05-110BD40 motor with full power PTO integration
Burner G20 delivers 200,000 kcal/hour to maintain asphalt viscosity during application
Heat transfer oil pump RY32-32-160 circulates heat through the tank insulation layer
Speed sensor Ni5-G12 adjusts asphalt flow rate automatically based on vehicle speed
Temperature controller Pt100 monitors asphalt temperature in real time
Insulation layer thickness of 50mm with 1mm outer stainless steel shell minimizes heat loss
Gravity flow stone spreading method eliminates mechanical wear and reduces maintenance

Specifications

Technical Data


Chassis	Sinotruk HOWO 8x4, model ZZ1317N4667W
Engine	WD615.47, 371 HP, 9726 ml displacement
Transmission	HW19710, 10 speed manual
Overall Size	12000 x 2500 x 3860 mm
Wheelbase	1800+4600+1350 mm
Curb Weight	21280 kg
Fuel Type	Diesel
Emission Standard	Euro II
Max Speed	90 km/h
Asphalt Tank Capacity	10 m3
Gravel Silo Capacity	14 m3
Insulation Thickness	50 mm
Outer Tank Material	1 mm stainless steel
PTO Type	Full Power PTO
Asphalt Pump	QGB950
Pump Motor	05-110BD40
Proportional Valve	EFRD-G03-160-05-31
Burner	G20, 200,000 kcal/hour
Heat Transfer Oil Pump	RY32-32-160
Number of Nozzles	32
Spray Width	2 to 6 metres adjustable
Control System	Cab touch screen + rear platform backup
Temperature Controller	Pt100
Speed Sensor	Ni5-G12
Tire Specification	295/80R22.5
Number of Tires	12 + 1 spare
Driver’s Cab	Single row, flat head with bunk
Lead Time	20 days
Shipping Port	China main port
Payment	T/T

Build Materials

Materials

1 mm stainless steel outer shell for asphalt tank with 50 mm insulation layer
Carbon steel frame and substructure for chassis and body support
Stainless steel piping and valves for asphalt delivery system
Aluminium alloy components on the rear working platform and control housing
High-temperature resistant rubber seals on all tank access points
Fire-resistant insulation material in the tank wall and around the burner

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk and wheelbase is verified against the tank layout drawing
Asphalt tank is fabricated from 1 mm stainless steel with 50 mm insulation and welded in place
Gravel silo is assembled from carbon steel with internal baffles to prevent bridging
All piping, pumps, and valves are installed and pressure tested before integration
Control system is programmed with speed-based flow logic and dual interface calibration
Burner and heat transfer system are tested for consistent temperature maintenance
Tank and silo are insulated and sealed, then coated with protective finish
Final assembly includes cab mounting, PTO connection, and control panel installation
Full system test is run on the factory apron with simulated spray and stone spread

Testing

Quality Control

All tanks and pressure components are tested for leaks and structural integrity
Control system is tested under simulated field conditions with speed and flow variation
Temperature control system verified to maintain asphalt within two degrees per hour
100 percent test before delivery with photos and videos sent to buyer before balance payment
Burner and heat transfer system tested for stable operation at full load
Insulation layer thickness measured and confirmed at multiple points on the tank

Build to Order

Customization Options

Asphalt and gravel tank capacities can be adjusted to match project requirements
Tank colour and logo applied free of charge to match client branding
Left or right hand drive chassis available to match local traffic rules
Control system can be modified to include additional sensors or data logging
Additional nozzles or spray patterns can be added for specialized applications
Manufacture to customer supplied technical drawings and specifications

Comparison

How It Compares With the Alternatives

6x4 asphalt spreader with 8m3 tank	Lower capacity and less stability on rough terrain but easier to maneuver in urban areas
Manual chip sealer with hand-held sprayer	Slower and less consistent application but lower initial cost and simpler maintenance
Single tank asphalt distributor with separate stone spreader	Higher operational complexity and longer setup time but lower cost per unit

Operating Notes

Use Guide

Confirm chassis drive configuration and hand of drive before order to match local road rules
Fill asphalt tank only through the designated inlet and keep the air vent clear
Preheat the asphalt to 140–160°C before application and maintain temperature during transport
Use the cab touch screen to set spray width and flow rate based on vehicle speed
Engage the full power PTO before starting the asphalt pump and burner
After use, activate the automatic blowing device to clear lines and tank residue

Buyer Questions About This Truck

What is the lead time for this asphalt spreader?

Generally 20 days after the advance payment is received. The exact date depends on chassis availability and equipment configuration.

Can the tank capacity be changed?

Yes. The standard asphalt tank is 10m3 and gravel silo is 14m3. We can adjust both to meet your project volume needs.

What are your payment terms?

T/T with 30 percent deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.

Do you supply right hand drive?

Yes. The chassis is ordered in left or right hand drive to match your traffic regulations. Confirm this at order stage because it cannot be changed later.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year and core parts on some products for two years. Our overseas engineers make regular return visits and provide technical training and manuals before delivery.

Can the control system be upgraded?

Yes. The system supports additional sensors and data logging. Let us know your requirements at order stage for integration.
