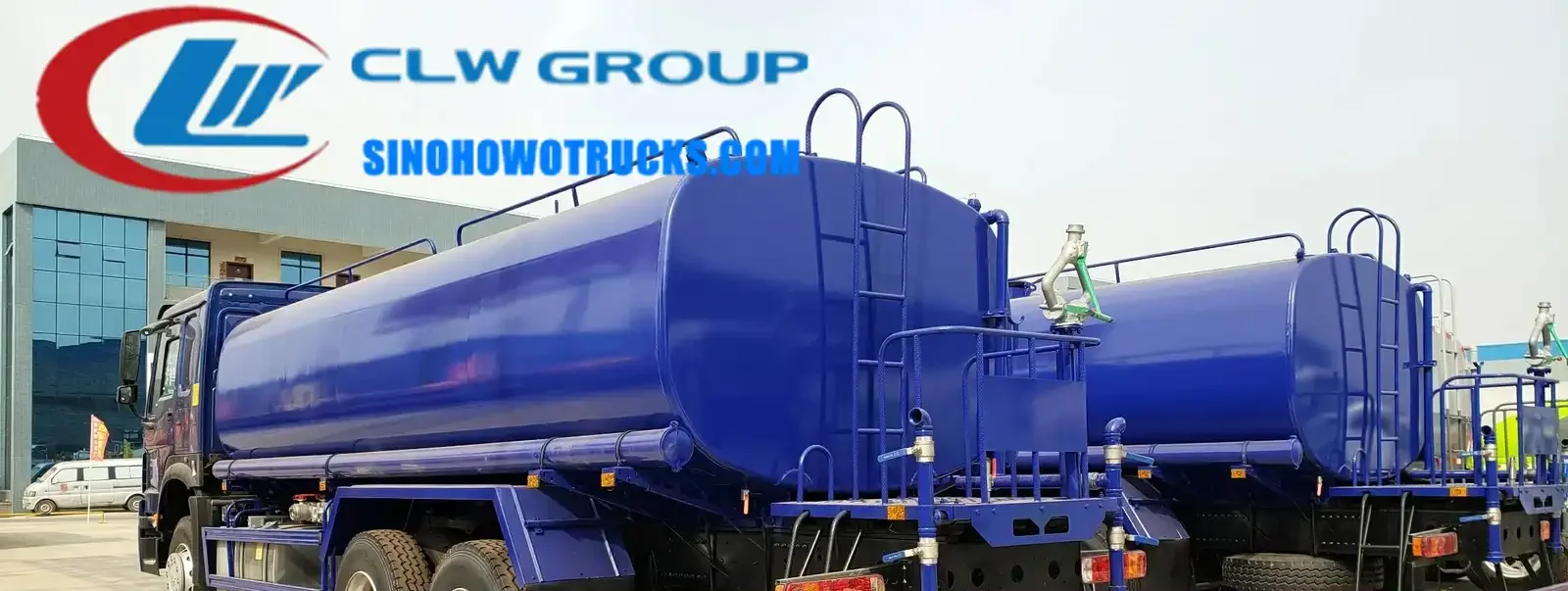

Sinotruk HOWO 6x4 water pumper truck in Ecuador with 25000 litre tank and front, rear and side sprayers

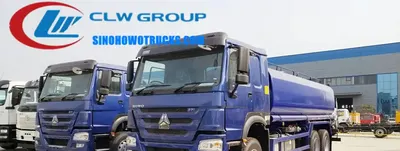

Rear view of the HOWO water tanker showing the water cannon and spray nozzles

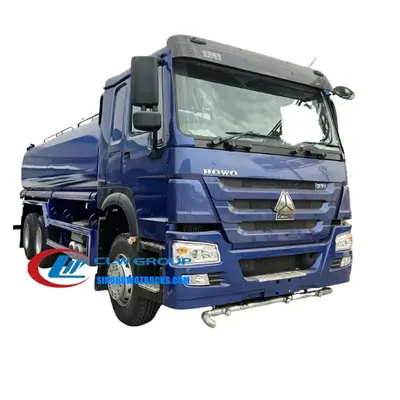

Side view of the HOWO water truck with front and side sprayers in operation

Sinotruk Howo 20 tons water pumper truck Ecuador

Name: Sinotruk Howo 20 tons water pumper truck Ecuador
Brand: Sinotruk HOWO

The Sinotruk HOWO 20 ton water pumper truck is a 25000 litre water transport vehicle built on a 6x4 HOWO chassis with a 270 HP Weichai diesel engine and 9 speed manual gearbox. It is designed for construction sites, agricultural irrigation, drought relief, and municipal road cleaning where reliable water delivery and spraying are required. The truck can draw water from sources up to 7 metres deep and fill the tank in under 15 minutes. It is equipped with front, rear and side sprayers for street cleaning and a water cannon with a range of at least 35 metres for high tree watering or dust suppression.

Request A Quote Email Specification

Key Benefits

25000 litre Q235B carbon steel tank holds enough water for 20 ton load capacity and multiple irrigation or cleaning cycles
Weichai 270 HP engine delivers reliable performance with no overhaul needed within 500000 km
9 forward and 1 reverse gear manual gearbox ensures smooth operation on uneven terrain
Front, rear and side sprayers cover a width of at least 14 metres for efficient road cleaning
Water cannon reaches a range of at least 35 metres for high tree and large area watering
Pneumatic brake system and power assisted steering improve safety and handling on long hauls
Left hand drive cabin with row and half layout meets local traffic regulations in Ecuador and similar markets

Buyer Profile

Who It Is for

Construction companies managing large-scale civil projects without on-site water
Agricultural cooperatives and irrigation contractors in arid zones
Municipal public works departments responsible for street cleaning and dust control
Government agencies running drought relief and emergency water supply programs
Landscaping and park management teams maintaining urban green spaces
Farming cooperatives using the same truck for water transport and pesticide application

Operating Problems

Problems It Solves

Lack of permanent water supply at remote construction or farming sites
Long refill cycles when water sources are more than 7 metres deep
Inadequate coverage from fixed sprinkler systems on large or irregularly shaped areas
Need for multiple vehicles to handle water transport, spraying, and pesticide application
Poor performance on rough terrain due to weak chassis or underpowered engine
High maintenance costs from engines that require overhaul before 500000 km

Where It Works

Application Scenarios

Construction sites in remote areas without access to municipal water supply
Agricultural irrigation projects in drought-prone regions requiring mobile water delivery
Municipal road cleaning operations in cities and towns with high dust and debris levels
Drought relief efforts where water must be transported over long distances
Landscaping and park maintenance teams needing to water high trees and large green areas
Farming operations requiring pesticide spraying with the same vehicle after water transport

Engineering

Technical Features

Weichai 270 HP diesel engine with EURO III emission standard
9 forward and 1 reverse gear manual transmission for consistent power delivery
Pneumatic braking system with power assisted steering for safe handling
Front, rear and side sprayers with a minimum coverage width of 14 metres
Water cannon with a minimum range of 35 metres for high reach applications
Suction height of more than 7 metres allows intake from shallow or low-pressure sources
Full tank fill time under 15 minutes using the built-in pump system
Self-flow valve, fire joint and two water pipes included in standard equipment
5mm thick Q235B carbon steel tank with welded internal structure for durability

Specifications

Technical Data


Chassis	SINOTRUK HOWO 6x4 left hand drive
Engine	Weichai 270 HP diesel, EURO III
Gearbox	9 forward and 1 reverse manual
Overall Size	9900 x 2500 x 3400 mm
Gross Vehicle Weight	25000 kg
Curb Weight	10605 kg
Wheelbase	4600 + 1350 mm
Cabin	Row and half, left hand drive
Tank Volume	25000 Litres / 25m3
Tank Material	5mm Q235B carbon steel
Pump Suction Height	>7 metres
Full Tank Fill Time	<15 minutes
Sprinkler Width	≥14 m (front/rear/side)
Water Cannon Range	≥35 m
Tire Size	12.00R20, 10 pieces with 1 spare
Maximum Speed	90 km/h
Brake System	Pneumatic
Steering Gear	Power assisted
Fuel Type	Diesel
Axle Load	6000 / 12000 kg
Approach/Departure Angle	16° / 22°
Lead Time	20 days
Shipping Port	China main port
Payment	T/T

Build Materials

Materials

5mm Q235B carbon steel tank with internal welded clapboards for surge control
Aluminium alloy panels used on the superstructure for corrosion resistance
Stainless steel tank available on request for potable water applications
Pneumatic brake system with high durability components for long life
12.00R20 tires with steel belts for off-road and long-distance use

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk and wheelbase is verified against the tank drawing
Tank shell is cut, rolled and welded with internal clapboards to reduce liquid surge
Tank is pressure tested and leak tested before leaving the welding shop
Pump system and suction piping are installed and aligned with the driveline
Sprayers and water cannon are mounted on the rear and side platforms
Superstructure is assembled with aluminium panels and sealed for weather resistance
Body is shot blasted, primed and painted in the customer’s chosen colour
All systems are tested on the factory apron including pump flow, spray coverage and cannon range
Photos and videos of the finished truck are sent to the buyer before balance payment

Testing

Quality Control

Every truck is 100 percent tested before delivery
Tank complies with GB39.5 general specification for water transport vehicles
Pump and spray systems are tested under full load and maximum range conditions
Photos and videos of the finished truck are sent to the buyer before the balance payment
Pressure and non-destructive testing available in-house for pressure vessel projects

Build to Order

Customization Options

Tank material can be changed from Q235B carbon steel to stainless steel for potable water
Tank volume can be adjusted to match the customer’s water demand and load capacity
Left or right hand drive chassis available to match local traffic regulations
Tank colour and logo applied free of charge
Spray system configuration can be modified for front-only, rear-only, or side-only operation
Additional equipment such as pesticide sprayers or fire hoses can be added on request

Comparison

How It Compares With the Alternatives

4x2 water tanker with 15000 L tank	Lower load capacity and shorter range but better fuel efficiency and easier to drive in tight urban areas
Water truck with fixed spray nozzles only	Less flexible for different cleaning or irrigation needs but simpler to maintain
Used imported water tanker	Lower upfront cost but higher long-term maintenance and parts availability issues

Operating Notes

Use Guide

Confirm the chassis drive configuration and hand of drive before ordering to match local regulations
Fill the tank only through the manhole or pump inlet; keep the air breather valve clear
Prime the pump at no more than 7 metres suction depth and expect full flow within 15 minutes
Use the water cannon only after the tank is full and the pump is running at full speed
Drain the tank and pump after use in freezing conditions to prevent damage
Free operator training is available at the factory before shipment

Buyer Questions About This Truck

What is the lead time for this water pumper truck?

Generally 20 days after the advance payment is received. The exact date depends on chassis availability and the equipment list you specify.

Can the tank be made of stainless steel?

Yes. The standard tank is Q235B carbon steel. Stainless steel is available on request. Let us know the water quality and storage duration for confirmation.

What are your payment terms?

T/T with 30 percent as deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.

Do you supply right hand drive?

Yes. The chassis is ordered in left or right hand drive to match your traffic regulations. Confirm this at order stage because it cannot be changed later.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR or CIF.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year and core parts on some products for two years. Our overseas engineers make regular return visits and provide technical training and manuals before delivery.

Can the spray system be changed?

Yes. Send us your preferred spray pattern and coverage requirements and we will adjust the system accordingly.
