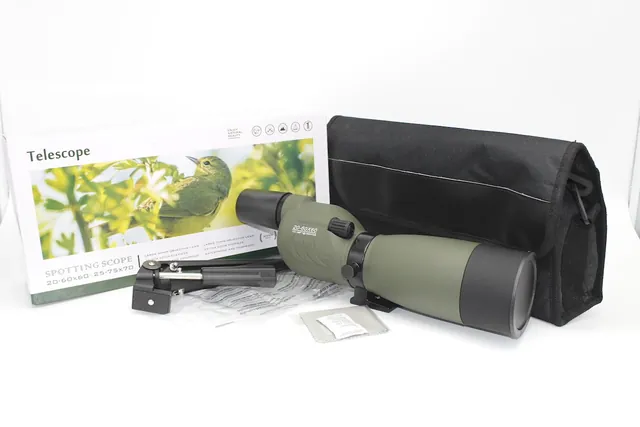

Waterproof Spotting Scope SPM01 Straight Head 20-60x60
The SPM01 Straight Head 20-60x60 is a nitrogen filled roof prism spotting scope rated IPX6~IPX7, built for brands that sell into wet or variable weather environments. It shares its optical system with the non-waterproof version of the same model, so a buyer can run two visually identical SKUs with different performance levels off one proven platform. Standard build is BK7 prisms with fully multi coated green+blue optics, a centre focus wheel, twist-up eyecups, and tripod adaptability. It is designed for use in birding, hunting, and long-distance observation.
| Model | SPM01 |
|---|---|
| Magnification | 20-60x |
| Objective Diameter | 60 mm |
| Prism System | Roof, BK7 or BAK4 optional |
| Coating | Fully Multi Coated (Green+Blue) |
| Waterproof and Fogproof | Yes, nitrogen filled, IPX6~IPX7 |
| Focus System | Centre focus |
| Eyecups | Twist-up |
| Tripod Adaptable | Yes |
| Manufactured In | Chongqing, China |
| Standard Quotation Basis | FOB Chongqing Port |
Key Benefits
Nitrogen filled body sealed to IPX6~IPX7, which prevents internal fogging in rain, spray, and sudden temperature changes
Shares an optical platform with the non-waterproof version, so a second performance tier needs no new optical tooling
20-60x magnification range allows detailed observation at distance without losing field of view
60 mm objective diameter gathers more light than smaller models, improving image brightness in low light
Twist-up eyecups let eyeglass wearers set eye relief without removing glasses
SPM01 20-60x60: Tripod adaptable, so the same SKU serves hand-held use and long static observation
Where It Is Used
Birdwatching in wetland and forest environments where rain and humidity are common
Hunting and wildlife observation in cold or wet seasons where fogging would ruin the view
Marine and coastal watching from shore or deck where spray and salt exposure are constant
Long static observation sessions from a tripod where stability and clarity are critical
Use inside large viewers or observation domes where a straight head design fits better
Who It Is For
- Optics brands that need a waterproof 20-60x60 anchor model under their own label
- Importers replacing a non-waterproof 60 mm model that fails in wet conditions
- Amazon and e-commerce sellers who need an IPX6~IPX7 claim they can actually defend
- Outdoor and hunting retail chains building a mid tier house brand
- Buyers who already stock the non-waterproof version and want a second performance tier
Problems It Solves
Internal fogging that makes a spotting scope useless within minutes of a temperature change
SPM01 20-60x60: Returns caused by water ingress in models sold as water resistant but not nitrogen filled
The cost of developing a new optical system when only the performance level needs to change
Eye relief complaints from customers who wear glasses
Uncertain carton sizing that breaks a freight or FBA cost model
Technical Features
- SPM01 20-60x60: Roof prism (DCF) layout with BK7 prisms as the standard build
- Fully multi coated green+blue coating across the optical train
- Nitrogen purged body sealed to IPX6~IPX7
- Centre focus wheel with a right eye dioptre adjustment
- Twist-up eyecups for use with or without glasses
- Tripod adaptable through a standard adapter thread
- Straight head design for direct viewing and use in large viewers
Materials
- SPM01 20-60x60: BK7 optical glass prisms as the standard specification
- BAK4 optical glass prisms available as an option
- Fully multi coated green+blue optics across all lens surfaces
- Nitrogen fill inside a sealed body
- Rubber armour housing on the body and eyepiece
How It Is Made
Optical element grinding and coating to the agreed fully multi coated recipe
SPM01 20-60x60: Prism cementing and alignment
Body assembly on the roof spotting scope line in the Chongqing factory
Nitrogen purge and sealing
Collimation and image check
IPX6~IPX7 immersion verification before packing
Quality Control
- SPM01 20-60x60: Collimation checked on every assembled unit before it leaves the line
- Waterproof verification against the IPX6~IPX7 rating after nitrogen filling
- In-process checks by Shinyzen staff based twenty minutes from the factory
- Buyer led factory audit and pre shipment inspection can be arranged on request
Customisation Options
- Coating changed from the standard green+blue to all blue or all green
- Prism specification changed between BK7 and BAK4
- Coating on prisms and penta prisms specified separately
- Own logo, brand name, private label and packing method on the body and packaging
- Packing method and retail box design to the buyer's artwork
- Rubber housing colour and texture can be customised
Compared With Other Models
- Non-waterproof SPM01 Straight Head 20-60x60
- Identical optical system and identical appearance; choose between them on performance level, not on image quality
- SPM01 20-60x60 Porro Prism Model
- The porro model is bulkier and not waterproof; it has a different optical layout and is not nitrogen filled
- SPM01 20-60x60 with 50 mm objective
- The 50 mm model gathers less light and has a narrower field of view; the 60 mm is better for low light and long distance
- SPM01 20-60x60 with angled head
- The angled head model is better for ground use and sharing; the straight head is better for large viewers and tripod mounting
Use Guide
- Adjust the eyecups down when wearing glasses and up when not
- Set the focus wheel until the image is sharp on both eyes
- Use the right eye dioptre ring to fine tune the focus for the right eye
- SPM01 20-60x60: Mount on a tripod through an adapter for observation sessions longer than a few minutes
- Rinse salt spray off with fresh water and dry the body before storage
- Avoid submerging the scope in water, even though it is rated IPX6~IPX7
Questions About the Waterproof Spotting Scope SPM01 Straight Head 20-60x60
Is the SPM01 20-60x60 really waterproof or only water resistant?
It is nitrogen filled and rated IPX6~IPX7, which is full waterproof and fogproof in Shinyzen terms. Models described as daily-life water resistant have no nitrogen fill and are a different specification.
What is the difference between the waterproof and non-waterproof version?
The optical system and appearance are identical. The difference is the nitrogen fill and sealing, which makes the waterproof version fogproof and operational under water.
Can we put our own brand on it?
Yes. Logo, brand name, private label and packing method are all customisable. Different customisation changes the cost, so send your artwork and we will quote against it.
Can the coating and prism be changed?
Yes. The standard build is fully multi coated green+blue with BK7 prisms. All blue or all green coating is available, and BAK4 can replace BK7. Prism and penta prism coatings can be specified separately.
Where is it made and on what terms do you quote?
It is produced in our own factory in Chongqing, China. Quotations are normally based on FOB Chongqing Port unless you ask for other terms.
Can you ship straight to an Amazon warehouse?
Yes. Shipping direct to Amazon warehouses is supported alongside sea freight, air freight and courier.
Quote the Waterproof Spotting Scope SPM01 Straight Head 20-60x60
Send the quantity, the branding you need and the destination. We reply with a specification sheet and an FOB Chongqing price.
