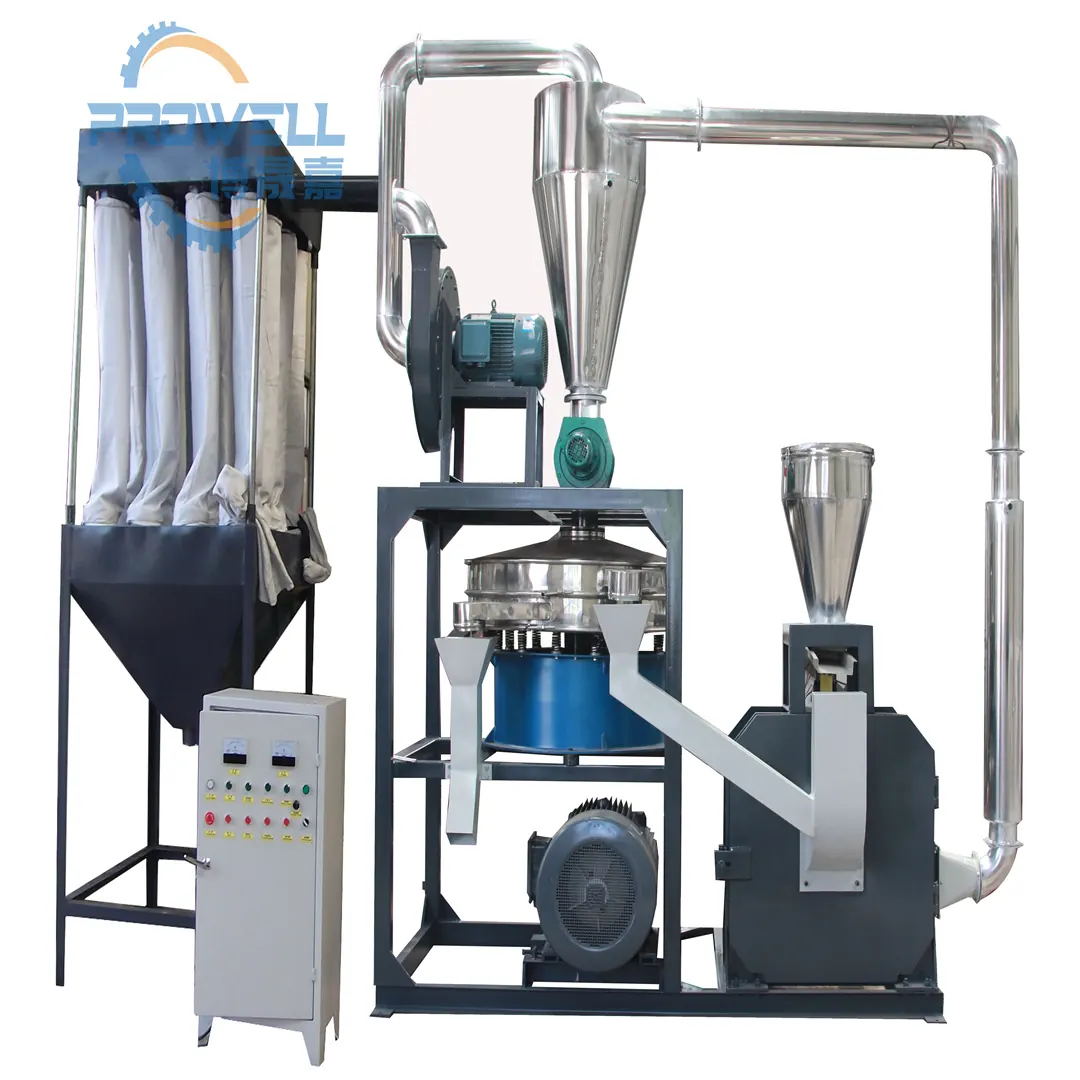

SMW Plastic Pulverizer Hard PVC Plastic Grinding Machine
The new SMW Plastic PVC pulverizer is a turbo pulverizer with a cutter head diameter of 400mm-800mm.
Flake and regrind that is too coarse will not plasticize evenly in the extruder or mixer.
How this machine is used
The new SMW Plastic PVC pulverizer is a turbo pulverizer with a cutter head diameter of 400mm-800mm.
It is mainly used in the field of rigid PVC recycling, the recycling of proportional PVC pipes, PVC profiles, WPC sheet profiles and other scraps.

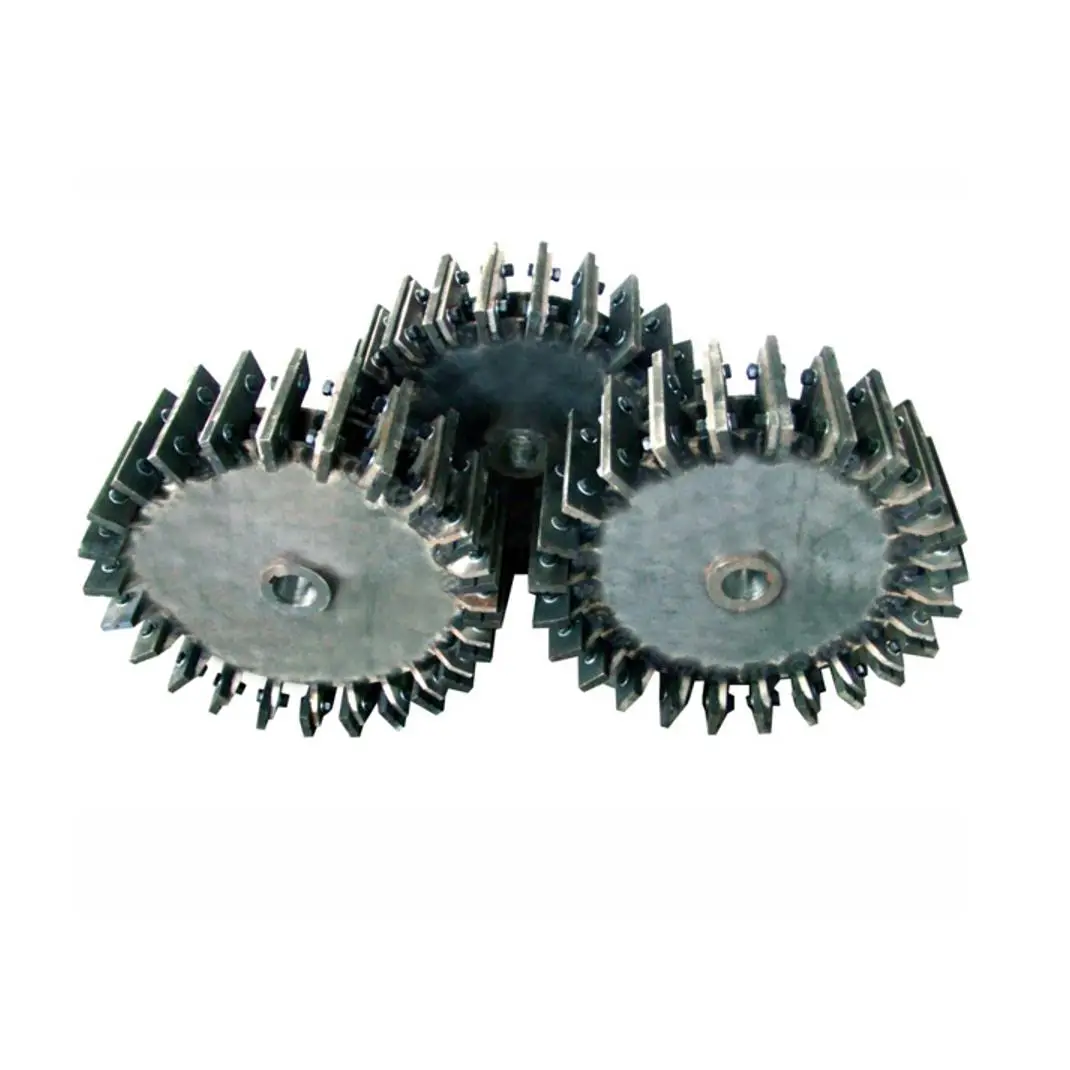

SMW plastic pulverizer is also known as PVC pulverizer, PVC pulverizer, hard plastic pulverizer Working principle: In the high-speed rotating airflow, the cutter head of the plastic mill is thrown to the tooth plate due to the centrifugal force, and the material is crushed by collision and friction between the blades and the tooth plate.
The fine powder is sent out with the air flow, and the coarse material close to the tooth plate cannot be discharged due to the obstruction of the baffle, and continues to pulverize until the powder material is discharged with the wind.
Published specifications
| Turbo-type | ||||
|---|---|---|---|---|
| Item Model | SMW-400 | SMW-500 | SMF-600 | SMF-800 |
| Main Motor(KW/hp) | 30/40 | 37/50 | 45/60 | 75/100 |
| Total Power(KW/hp) | 30/40 | 44/59 | 54/72 | 88/118 |
| Vibration Sieve | No | ZDS-1000 | ZDS-1000 | ZDS-1200 |
| Capacity(kg/h) | 50-120 | 80-280 | 120-380 | 200-800 |
| Dimensions(mm) | 2200x1500x1600 | 3000x2800x3900 | 3200x3000x4200 | 3500x3200x4500 |
| Weight(kg) | 1000 | 1680 | 2280 | 2880 |
Questions plants usually ask
What problem does the SMW Plastic Pulverizer Hard PVC Plastic Grinding Machine address?
Flake and regrind that is too coarse will not plasticize evenly in the extruder or mixer.
Can Prowell customize the SMW Plastic Pulverizer Hard PVC Plastic Grinding Machine?
Yes. The source plant states equipment is 100% customizable — pot volume, impeller, motor and discharge are sized to the recipe.
How do I request a quotation?
WhatsApp or email Jarvis with material, bulk density, kg/batch or kg/hour, and any heating/cooling requirement. Use [email protected] or +86 185 5118 6172.
Are the published models the only sizes?
The tables on this page are the models printed on the original Prowell listing. Other sizes are discussed against your batch weight.
