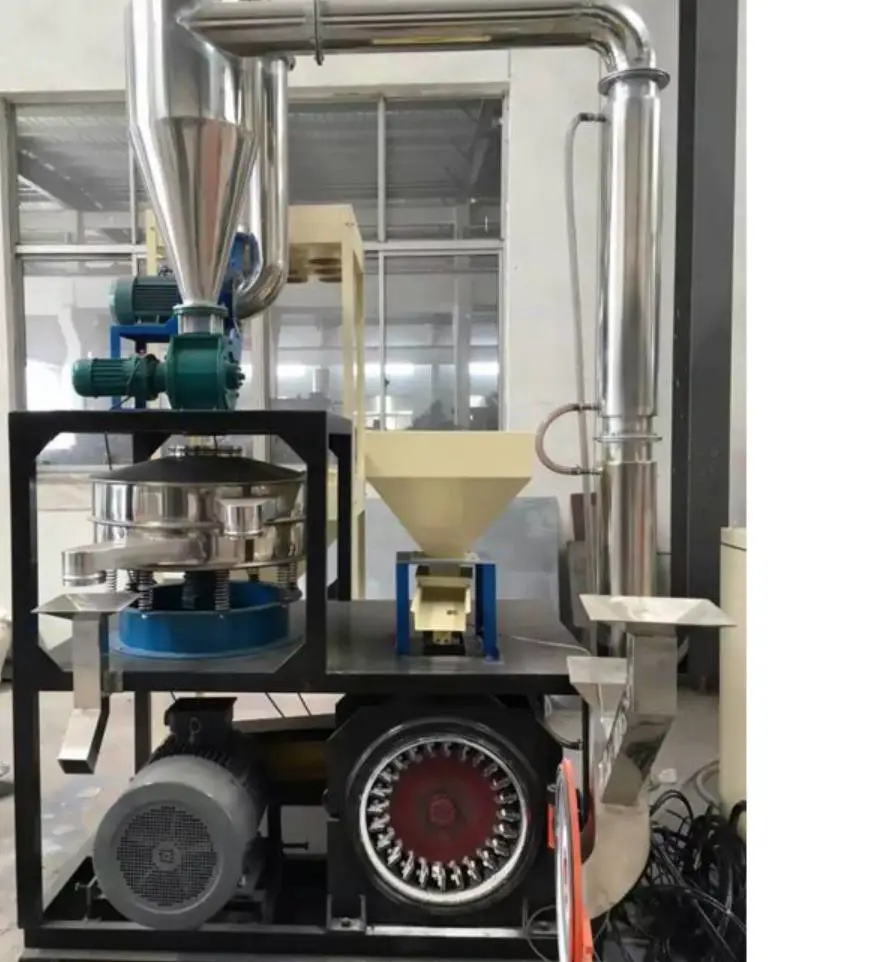

PVC Knife Disc Grinding Machine Plastic Grinder
A high-speed rotating blade disc is installed in the grinding chamber of the Plastic Knife Disc Grinding Machine.
Flake and regrind that is too coarse will not plasticize evenly in the extruder or mixer.
How this machine is used
A high-speed rotating blade disc is installed in the grinding chamber of the Plastic Knife Disc Grinding Machine.
Like the blades of the fan, there is also a ring of fixed knives with teeth on the outside.
The material is driven by the knives in the grinding chamber, and collides, rubs and extrudes between the fixed knives into powder.
The fixed knives are all made of alloy disposable.
Published specifications
| No | SMP400 | SMP500 | SMP600 | SMP800 |
|---|---|---|---|---|
| Blade Diameter mm | 400 | 500 | 600 | 800 |
| Blade PCS： | 18 | 24 | 26 | 40 |
| Motor kw | 22/30 | 37 | 55 | 75 |
| Output kg/h | 50-350 | 100-600 | 150-800 | 250-1250 |
| Speed r/min | 2980R | 2980R | 2980 | 2980 |
| Shaker Size: | LD800 | LD1000 | LD1000 | LD1200 |
| Actual power consumption: degrees | <30 | <36 | <52 | <68 |
| Dimensions cm | 190*210*320 | 235*220*350 | 275*230*350 | 290*330*370 |
| Weight kg | 1200 | 1600 | 2200 | 3500 |
Questions plants usually ask
What problem does the PVC Knife Disc Grinding Machine Plastic Grinder address?
Flake and regrind that is too coarse will not plasticize evenly in the extruder or mixer.
Can Prowell customize the PVC Knife Disc Grinding Machine Plastic Grinder?
Yes. The source plant states equipment is 100% customizable — pot volume, impeller, motor and discharge are sized to the recipe.
How do I request a quotation?
WhatsApp or email Jarvis with material, bulk density, kg/batch or kg/hour, and any heating/cooling requirement. Use [email protected] or +86 185 5118 6172.
Are the published models the only sizes?
The tables on this page are the models printed on the original Prowell listing. Other sizes are discussed against your batch weight.
