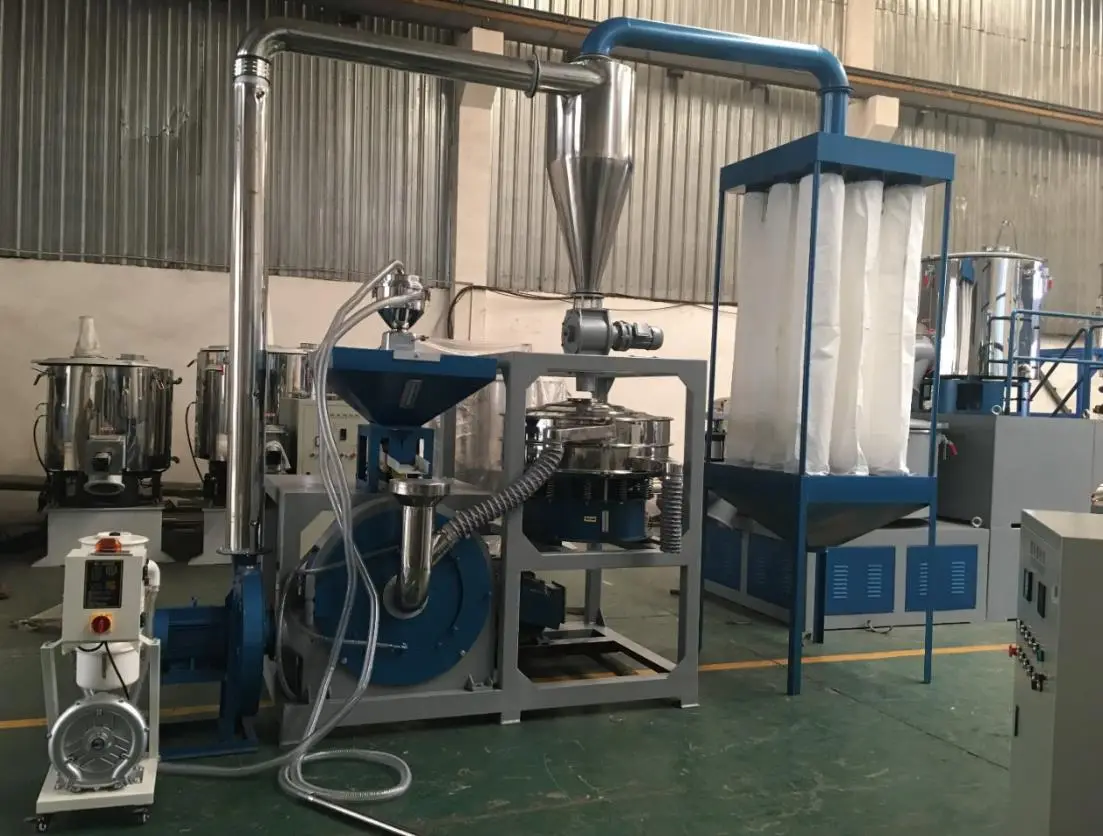

Plastic PE Grinding Machine PP PET Pulverizer Machine
There are two grinding discs on the Plastic PE Grinding Machine, each with sharp teeth.
Flake and regrind that is too coarse will not plasticize evenly in the extruder or mixer.
How this machine is used
There are two grinding discs on the Plastic PE Grinding Machine, each with sharp teeth.
One disc is fixed, which is a fixed disc, and the other disc is rotating at high speed, which is a moving disc.
The discs are quickly cut into fine powder and discharged.
The feature of this Grinding Machine is that it can quickly grind various soft plastics with strong toughness into powders of different fineness, such as HDPE\LLDPE\PET\PC\ABS\PP\PA\soft PVC, etc.
Published specifications
| No | MF400 | MF500 | MF600 | MF800 |
|---|---|---|---|---|
| Grinding Disc mm | 400 | 500 | 600 | 800 |
| Grinding Disc Material: | SKD II | SKD II | SKDII | SKDII |
| Main Motor kw | 22/30 | 37 | 55 | 75 |
| Output kg/h | 50-150 | 100-300 | 150-400 | 250-650 |
| Speed r/min | 2980R | 2980R | 2980 | 2980 |
| Shaker No | LD800mm | LD1000mm | LD1000 | LD1200 |
| Actual power consumption: degrees | <30 | <36 | <52 | <68 |
| Dimensions cm | 180*150*320 | 195*170*350 | 220*200*350 | 270*230*370 |
| Weight kg | 1200 | 1600 | 2200 | 3500 |
Questions plants usually ask
What problem does the Plastic PE Grinding Machine PP PET Pulverizer Machine address?
Flake and regrind that is too coarse will not plasticize evenly in the extruder or mixer.
Can Prowell customize the Plastic PE Grinding Machine PP PET Pulverizer Machine?
Yes. The source plant states equipment is 100% customizable — pot volume, impeller, motor and discharge are sized to the recipe.
How do I request a quotation?
WhatsApp or email Jarvis with material, bulk density, kg/batch or kg/hour, and any heating/cooling requirement. Use [email protected] or +86 185 5118 6172.
Are the published models the only sizes?
The tables on this page are the models printed on the original Prowell listing. Other sizes are discussed against your batch weight.
