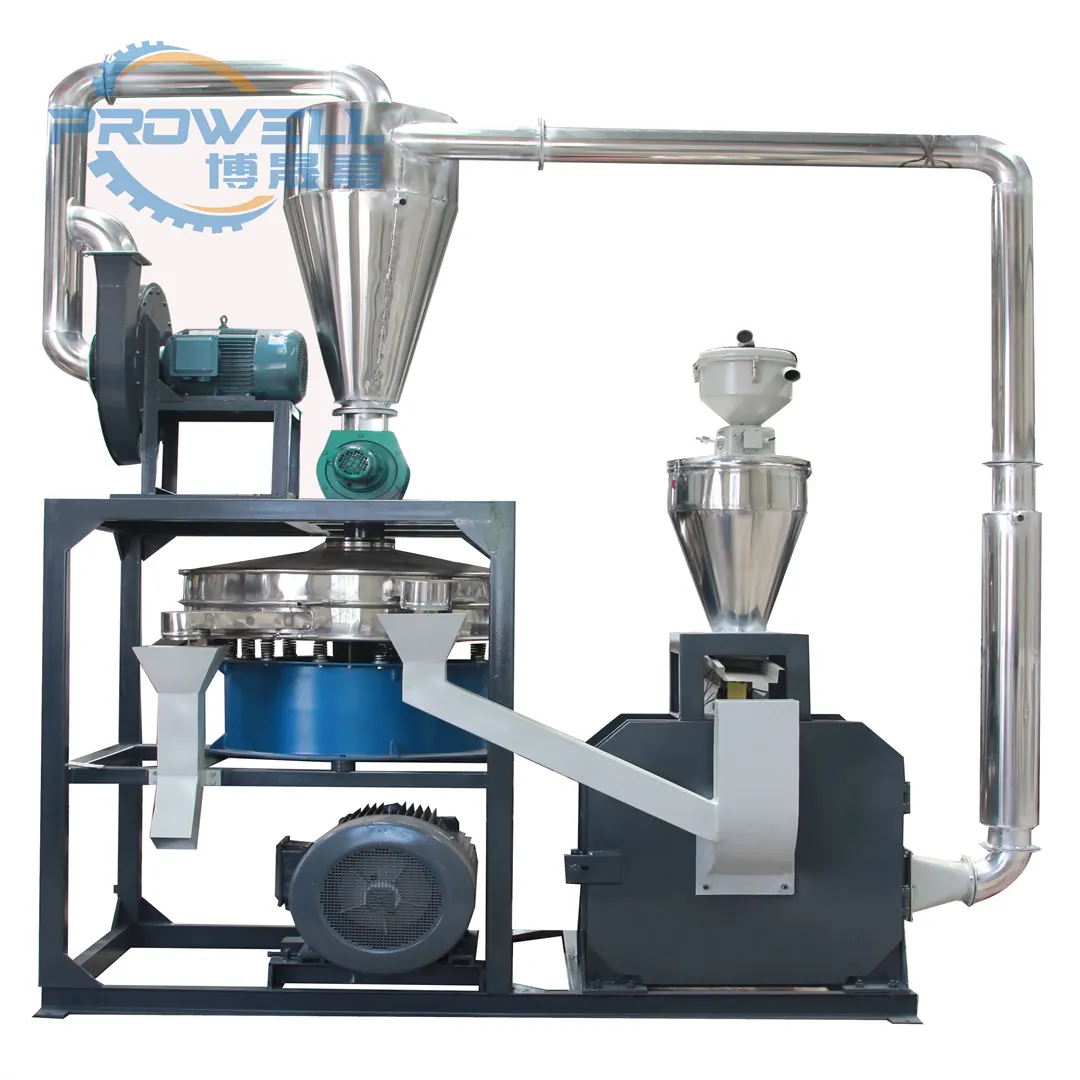

Automatic PE Flakes Pulverizer Machine Grinding Machine

PE Flakes Pulverizer Machine Features: Fully automatic MF series plastic pulverizer is a series of disc type plastic pulverizers with the characteristics of high output and low energy consumption.

It is used for powder processing of grinding polyethylene PE, polypropylene PP, polystyrene PS, ABS and other materials ●New grinding disc design, high output, strong wear resistance, twice the lifespan of ordinary grinding discs.

●Using the newly designed special bearing to achieve high speed ●Easy installation and maintenance, can be cleaned by opening the door cover ●The grinding process is completely sealed, no dust leakage ●Fully automation, automatic feeding, discharging and sorting The adjustment of the grinding gap is easy, just use the feeler gauge and adjusting bolt to adjust accurately ●The cooling system of the main engine adopts the combination of air and water for cooling ●Reasonable design, small cross section of grinding chamber, material is immediately caught and ground as soon as it enters, and is quickly moved out, avoiding the heating and decomposition of materials, so as to have higher output PE Plastic Pulverizer Machine Grinding Machine Plastic Pulverizer different Baldes for different material PE Flakes Pulverizer Machine Tech Details： No MF400 MF500 MF 600 MF 800 Grinding Disc（mm） 400 500 600 800 Motor Power(kw) 22-30 37-45 45-55 75-90 Fan Power（kw） 2.2 3 5.5 7.5 Cooling Way Fan Cooling、Water Cooling Shaker ZDS-800 ZDS-1000 ZDS-1200 ZDS-1200 Output(kg/h) 50-120 100-300 200-400 400-800 Dimensions（mm） 3800*1600*3800 3900*1700*3900 4000*1800*4000 4300*1900*4300 Weight（kg） 1600 1800 2200 3200
