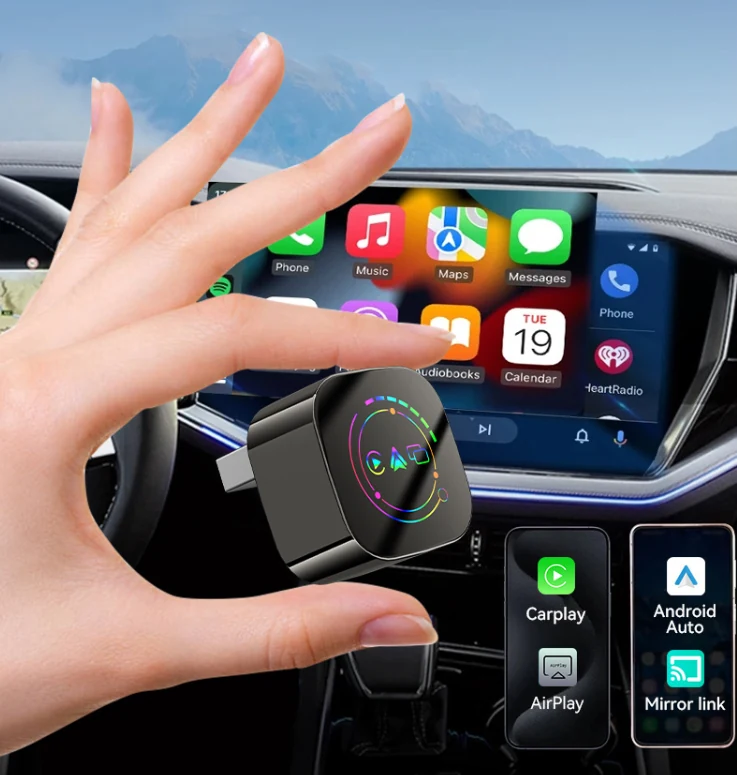

Q1AF 3 In 1 Wireless CarPlay Adapter At 7 g
Mirroring added to wireless CarPlay and Android Auto in a 7 g ABS shell.
The Q1AF is the lightest mirroring adapter we build. At 7 g in ABS on a V851S CPU, it adds Android Mirrorlink or iPhone AirPlay to wireless CarPlay and Android Auto, chosen as a variant at order. It is the model to specify when the programme is price-led and the freight bill is measured per gram.
| CPU | V851S |
|---|---|
| Shell material | ABS |
| Connection | Wi-Fi 6 + Bluetooth 5.0 |
| Power input | 5V 1A-2.1A |
| Powered interface | USB |
| Net weight | 7 g |
| Usage | Plug and play |
| Phone OS | iOS 10+, Android 13.0+ |
| Interconnection | Wireless CarPlay and Android Auto + Mirrorlink or AirPlay |
| Applicable vehicle | Original car supporting wired CarPlay and compatible with the CarPlay protocol |
Why Buyers Specify This Model
7 g In ABS
The lightest 3 in 1 in the range, and light enough that a side-facing USB port takes no strain.
Mirroring At An Entry Price
ABS instead of metal keeps the unit cost down while keeping Mirrorlink or AirPlay in the specification.
Current Compatibility Floor
iOS 10 and above, Android 13.0 and above, on Wi-Fi 6 with Bluetooth 5.0.
Two Variants
Order the Mirrorlink build or the AirPlay build depending on which platform your market runs.
Problems It Solves
Metal Shells Price You Out
ABS at 7 g holds the same V851S CPU and the same function set as the metal Q1AS at a lower landed cost.
Freight Eats The Margin
Seven grams per unit is the lightest mirroring option we can ship.
The Basic Dongle Does Not Mirror
This is the cheapest route into mirroring across our adapter range.
Who It Is For
- Volume marketplace sellers
- Promotional and corporate gifting buyers
- Distributors in price-sensitive markets
Application Scenarios
- Price-led retail programmes that still need mirroring
- High-volume promotional and gift channels
- Compact dash installations
- Single-platform markets
Technical Features
- Wireless CarPlay and wireless Android Auto
- Android Mirrorlink or iPhone AirPlay, chosen by variant
- Wireless screen mirroring
- Wi-Fi 6 with Bluetooth 5.0
- V851S CPU
- ABS shell at 7 g
Customization Options
- User interface logo
- Bluetooth broadcast name
- Silkscreen artwork
- Colour box
- Instruction manual
Low MOQ OEM and ODM accepted. Our own mould workshop handles size, material and function changes.
Comparison With Other Models
The Q1AF is the ABS sibling of the Q1AS: identical CPU and function set, 7 g against 17 g, at a lower cost and without the metal and glass finish. Against the 4 in 1 line it carries one mirroring protocol rather than two. Against the 2 in 1 Q1BD, which is 6 g and even cheaper, the Q1AF adds mirroring for one extra gram.
Use Guide
- Choose the variant at order: Mirrorlink or AirPlay
- Confirm the vehicle has factory wired CarPlay
- Plug the adapter into the car USB port
- Pair over Bluetooth then Wi-Fi on first connection
- Mirror with the vehicle parked
- Subsequent journeys reconnect automatically
Quality Control And Warranty
Every unit passes three inspection gates: IQC on incoming material, IPQC on the line and FQC before packing. The model ships with CE, RoHS and FCC documentation, carries a twelve month warranty against manufacturing defects, and any quality issue receives a proposed solution within 48 hours.
Download the certificates and test reports before you place an order.
Services That Apply
Other Models Worth Comparing
3 In 1 Adapter Q1AS
CarPlay and Android Auto plus your choice of Mirrorlink or AirPlay, in a 17 g metal and glass shell.
View Specifications
4 In 1 Adapter Q1BF
The same four protocols as the Q1BP in a 10 g aluminium and glass shell.
View Specifications
2 In 1 Adapter Q1BD
The lightest adapter we build, in aluminium alloy and glass, on its own CPU platform.
View SpecificationsQuestions About The 3 In 1 Adapter Q1AF
Is ABS durable enough
Yes for normal in-cabin use. In consistently hot climates or where the unit stays plugged in all summer we recommend the aluminium alloy Q1AS.
Which variant sells better
It depends entirely on the phone platform split in your market. Tell us the country and we will tell you what other buyers there order.
Does it support Android 12
The specification states Android 13.0 and above for this model. The 2 in 1 line covers Android 12.0 and above.
Can it be sold as a branded gift item
Yes. Silkscreen artwork, interface logo, Bluetooth name, colour box and manual are all customisable, and the 7 g weight suits gift packaging.
Quote The 3 In 1 Adapter Q1AF
Send the quantity, the destination market and any branding you need. We will confirm price, lead time and the certification position for your country.
