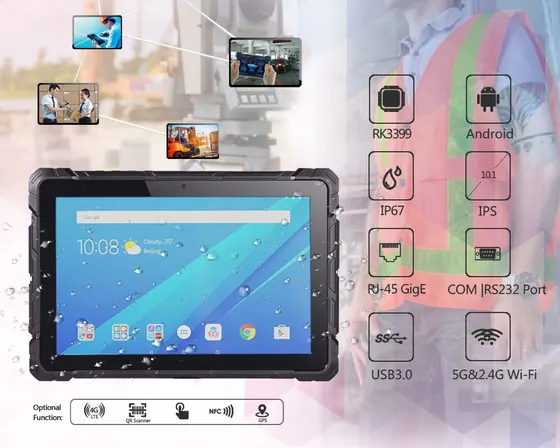

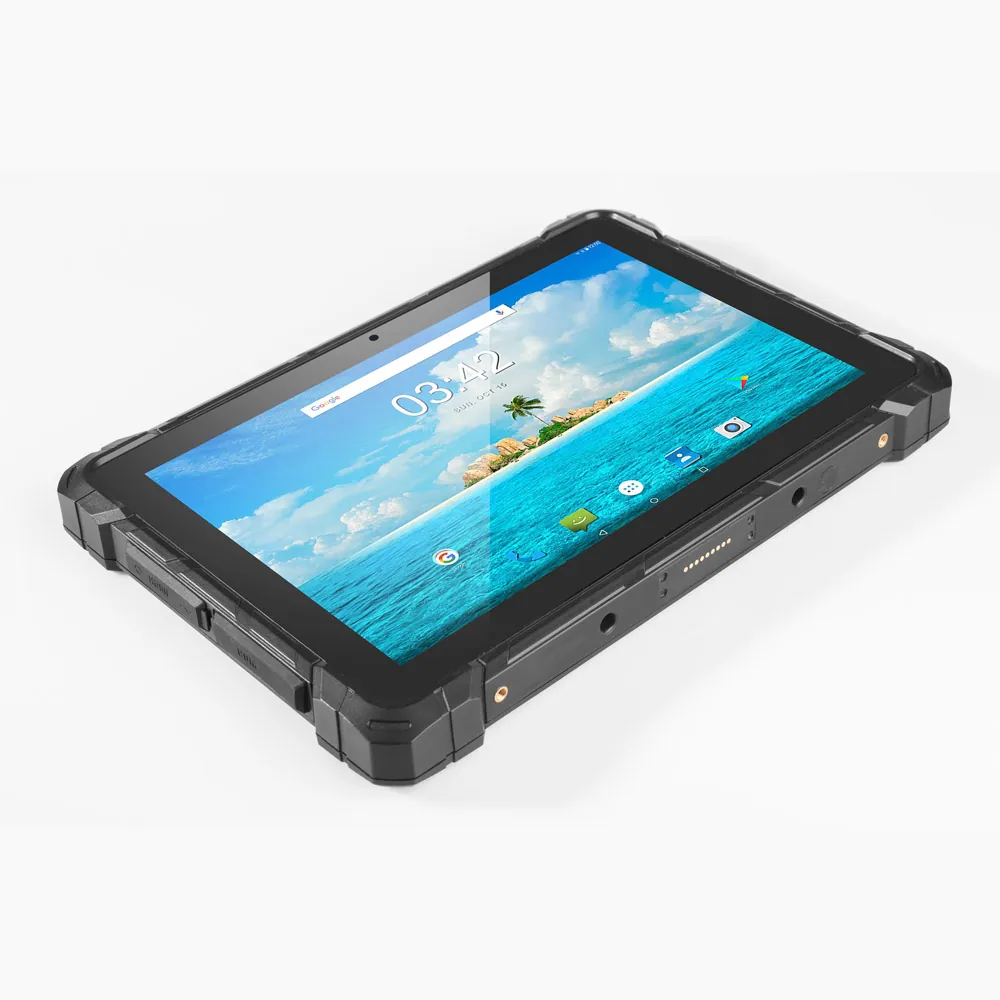

10.1″ Android Rugged Tablet PC
- 10.1″ 1920*1200 IPS Panel with Projective Capacitive Touch screen
- Dual-core Cortex-A72 + Quad-core Cortex-A53 CPU
- Android 7.1 or above OS
- IP67 Waterproof Enclosure
- 1*RJ45 GbE LAN
- Dual Camera Design(front, rear)
Working with RESUN on this model
- Customised I/O, IP65 front bezel, 7H anti-scratch panel, open frame or flat screen housing.
- RFID, NFC, front camera and barcode reader can be integrated.
- Multiple CPU, memory, storage and operating system options.
- Two-year warranty on computer and monitor hardware.
| CPU | RK3399 Dual-core Cortex-A72 + Quad-core Cortex-A53 |
| CPU Speed | Up to 1.8GHz |
| GPU | Mali-T864 GPU |
| Memory Support | 4GB |
| Storage support | eMMC 64GB |
Display
| Screen Size | 10.1″ IPS LCD |
| Resolution | 1200*1920 |
| Screen Ratio | 16:10 |
| Brightness | 400 nits |
Touch Screen
| Touch Screen | Projected Capacitive G+G Multi-Touch) |
External I/O ports
| USB | USB2.0 TypeA*1 Micro USB2.0 (Debug port)*1 USB 3.0*1 |
||
| Ethernet / LAN | 1*RJ45 GbE LAN | ||
| Video Outputs | 1* Mini HDMI 1.4 | ||
| Docking Connector | USB2.0*1pc ; DC IN * 1pc (Optional) | ||
| Other Ports | 1*TF Slot (up to 128GB) | ||
| Audio | 1x 3.5mm Headphone Jack | ||
Power
| Standard Power Adapter | DC 12V/3A |
Battery
| Type | Rechargeable lithium polymer 3.7V/12000mAh Battery |
| Operating Time | Over 8 hours (FHD local video display) |
Operating Systems
| Android | Android 7.1 or above |
Expansion Slots
| video card support | ARM Mali T720 |
| SD card | 1x Micro SD Slot |
| Other | Pogo Pin Expansion |
Multimedia
| Speakers | 8Ω/1W Speaker |
| Camera | Front: 2MP, Rear: 5MP |
| Microphone | Built-in Microphone |
| G-sensor | Built-in |
Android Rugged Tablet PC
Android Rugged Tablet
Rugged Tablet with Android
Android Rugged Tablet PC
Ask about the EB-117R
Send the configuration you need — CPU, memory, storage, operating system, I/O and quantity — and RESUN Electronics Co., Ltd. will confirm the build and quote it.
Other Android Panel PC models
See all 5
- Face recognition temperature meansurement solution.
- 8 inch LCD Display
- Melexis Infrared Camera Temperature Measurement
7"- 7 inch IPS 10-Point Capactive Touch Screen, with
- 1280*800 resolution;
- NXP i.MX 6DualLite 800MHz,
7"- 7 inch Android Industrial Panel PC
- Powered by RK3288 Quad Core CPU
- Based on Android 7.1 OS
9.7"- 9.7″ Waterproof IP64 Rated Panel PC – Rugged Industrial Tablet
- Waterproof. Shockproof. IP64 rating Sealed.
- Built with military grade components to withstand conditions that would cause a consumer grade tablet to fail
Frequently Asked Questions
Can this model be customised?
Yes. RESUN is an OEM/ODM manufacturer, so I/O, housing, mounting, touch technology, IP rating, RFID or NFC, camera and barcode reader can be changed to suit the application.
What is the lead time and minimum quantity?
Both depend on the configuration and the volume. Send your requirement to +86-1351-0185730 or through the contact page and the sales team will confirm.
Is a sample available before production?
Yes. The custom design route includes sample making and sample approval before mass production; for a standard configuration a sample unit can be quoted directly.
What warranty applies?
Two years from the date of purchase against manufacturing and material defects on computer and monitor hardware.
