7 inch Android PoE Embedded Industrial PC
- 7 inch IPS 10-Point Capactive Touch Screen, with
- 1280*800 resolution;
- NXP i.MX 6DualLite 800MHz,
- 1G RAM，
- 8G ROM，
- Android 5.1.1 OS, Linux Debian 8.0,

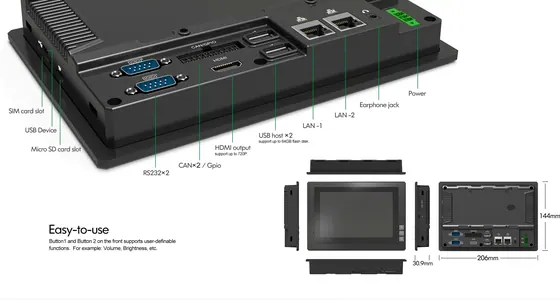

- Lan port *2,
- RS232/GPIO/CAN/LAN/USB2.0/HDMI interfaces,
- Micro SD (TF) card storage
- Optional Functions
- 3G/4G (built-in);
- Wi-Fi 802.11 b/g/n & Bluetooth 4.0 (built-in);
- PoE (built-in);
- RS485/RS422.
Working with RESUN on this model
- Customised I/O, IP65 front bezel, 7H anti-scratch panel, open frame or flat screen housing.
- RFID, NFC, front camera and barcode reader can be integrated.
- Multiple CPU, memory, storage and operating system options.
- Two-year warranty on computer and monitor hardware.
7 inch Android Embedded Touch Screen PC built-in PoE

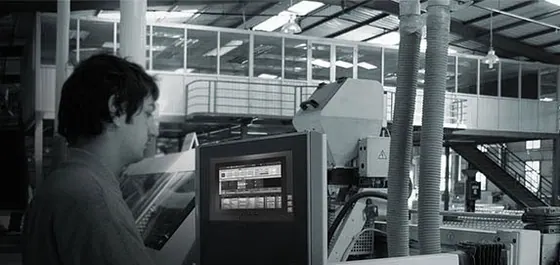

This Embedded Industrial PC based on Linux, Android OS, it can be applied as embedded control device in many industry, such as, Warehouse management, Intelligent Industrial Control, human machine interface, portable medical device…etc.

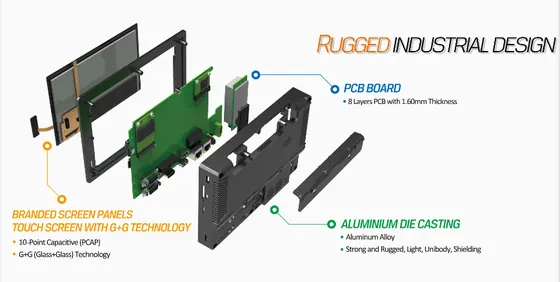

The PoE Embedded Touch Screen Computer device utilizes a 7 inch1280*800 resolution screen, also integrated with Projective Capacitive Touch (PCT) , G+G (Glass + Glass) technology and is powered by a NXP i.MX 6DualLite 800MHz ARM Cortex-A9 Dual Core CPU, it provides high performance processor, graphics and connectivity. This HMI multi-touch Panel PC also features Power Over Ethernet (PoE).
| Configuration | Specifications | |
| Display | 7 inch IPS LCD Panel | |
| Touch Panel | Capacitive Touch Screen | |
| Physical Resolution | 1280*800 resolution | |
| Brightness | 400cd/㎡ | |
| Contrast | 800:1 | |
| Viewing Angle | 140°/160°（H/V） | |
| System Hardware | CPU: NXP i.MX 6DualLite 800MHz ARM cortex-A9 processor
ROM: 8GB FLASH RAM: 1GB LPDDR3 GPU: 3D Vivante GC880 35Mtri/s 266Mpxl/s Open GL ES 2.0 OS: Android 5.1.1 / Linux Debian 8.0 |
|
| Interfaces | SIM card | 1.8V/2.95V, SIM |
| TF card | 1.8V/2.95V, up to 64G | |
| USB | USB host 2.0×2
USB Device 2.0 (OTG)×1 |
|
| CAN | CAN2.0b×2 | |
| GPIO | Input×4, Output×6 (See section “3. Extended Cable Definition” for details.) | |
| HDMI output | HDMI 1.4 | |
| LAN | 100M×2 (Note: If one LAN port for Intranet, the other LAN port for Internet; Both of them need to be customized under Android OS.Only LAN port1 is available when the both LAN ports are using simultaneously under Android OS. ) |
|
| Serial Port | RS232×4 or RS232×3, RS485×1 or RS232×2, RS485×1,RS422×1 | |
| Ear Jack | 1 | |
| Optional Function | Wi-Fi | 802.11a/b/g/n 2.4GHZ |
| Bluetooth | Bluetooth 4.0 2402MHz~2480MHz | |
| 3G/4G | (See section 1.4 for details) | |
| POE | 25W | |
| Multimedia | Audio | MP3/AAC/AAC+/WAV/FLAC/APE/
AMR/MP4/MOV/F4V… |
| Video | Encode: 1080p30 H.264 BP/Dual 720p encoding | |
| Decode: 1080p30 + D1 | ||
| Input Voltage | DC 9~36V | |
| Power Consumption | Overall ≤ 10W
Standby ≤ 4W |
|
| Working Temperature | -20℃~60℃ | |
| Storage Temperature | -30℃~70℃ | |
| Dimension (LWD) | 206×144×30.9mm | |
Industrial PC
embedded pc
industrial android pc
Embedded Industrial PC
Ask about the EB-71APC
Send the configuration you need — CPU, memory, storage, operating system, I/O and quantity — and RESUN Electronics Co., Ltd. will confirm the build and quote it.
Other Android Panel PC models
See all 5
- Face recognition temperature meansurement solution.
- 8 inch LCD Display
- Melexis Infrared Camera Temperature Measurement
7"- 7 inch Android Industrial Panel PC
- Powered by RK3288 Quad Core CPU
- Based on Android 7.1 OS
9.7"- 9.7″ Waterproof IP64 Rated Panel PC – Rugged Industrial Tablet
- Waterproof. Shockproof. IP64 rating Sealed.
- Built with military grade components to withstand conditions that would cause a consumer grade tablet to fail
10.1"- 10.1″ 1920*1200 IPS Panel with Projective Capacitive Touch screen
- Dual-core Cortex-A72 + Quad-core Cortex-A53 CPU
- Android 7.1 or above OS
Frequently Asked Questions
Can this model be customised?
Yes. RESUN is an OEM/ODM manufacturer, so I/O, housing, mounting, touch technology, IP rating, RFID or NFC, camera and barcode reader can be changed to suit the application.
What is the lead time and minimum quantity?
Both depend on the configuration and the volume. Send your requirement to +86-1351-0185730 or through the contact page and the sales team will confirm.
Is a sample available before production?
Yes. The custom design route includes sample making and sample approval before mass production; for a standard configuration a sample unit can be quoted directly.
What warranty applies?
Two years from the date of purchase against manufacturing and material defects on computer and monitor hardware.
