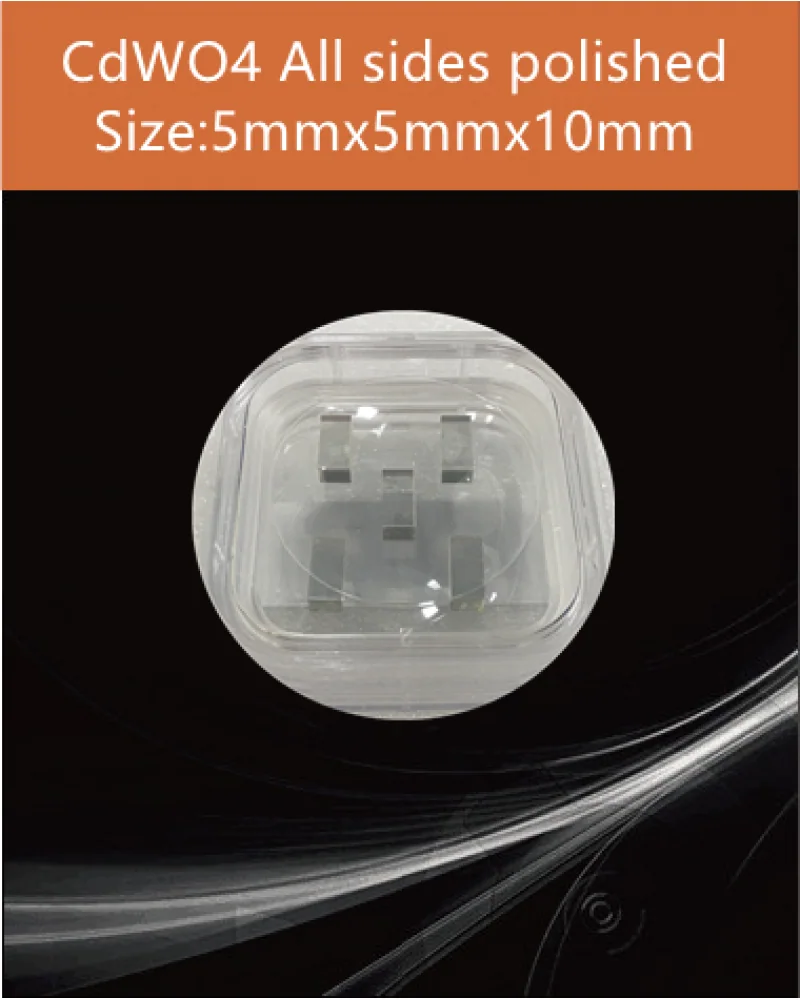

CdWO4 scintillation crystal
5x5x10 mm all sides polished
CdWO4 crystal, CdWO4 scintillator, CWO scintillation crystal, Cadmium Tungstate crystal, 5x5x10mm
$110.00
List price published by the factory; confirmed on quotation.
Item Details
| Product code | 5x5x10 mm all sides polished |
|---|---|
| Dimension | 5 mm (length) x 5 mm (width) x 10 mm (height) |
| Polish | all sides polished |
| Tolerance | ±0.02 mm |
| Brand | EPIC Crystal |
| Availability | In Stock |
| List price | $110.00 |
| Made in | Kunshan, Jiangsu, China |
Specification
- Dimension: 5 mm (length) x 5 mm (width) x 10 mm (height)
- Polish: all sides polished
- Tolerance: ±0.02 mm
Features
- Low afterglow
- Withstands high energy radiation damage
- High density, high Z scintillator
- Suitable for low activity counting applications
- Relatively high light yield
Main Applications
- Security inspection
- X-ray computed Tomography
- High-energy physics
- Nuclear medicine
CWO Scintillator Description
Cadmium tungstate (CdWO4) crystal is a high density, high atomic number scintillator with relatively high light yield. The emission maximum is at 475nm and the total light output is 12 to 15 photons/keV. The light yield relative to NaI(Tl) is 30 to 50%
Customized CdWO4 Scintillation Crystal
Besides the scintillation crystals growth furnace, we also own completed further process equipment, included line cutting, inner circle cutting, grinding and polished machine, and with our advanced technical capability, we are able to handle complicated and special design from clients, like the through hole, reflector coating, matrix design, and so on.
For more information please visit www.epic-crystal.com, or you could directly contact our sales [email protected]
Related CdWO4 Items
All 21 in CdWO4
6x6x15 mm packed with reflective coating$150.00
6x6x3mm all sides polished$120.00
8x10x9 mm packed with reflective coating$127.40
diameter 10x1mm both sides polished$190.00
dia.19x13.5mm all sides polished$396.00
diameter 50mm x 50mm two sides polished$2,650.00
5mm x 5mm x3mm all sides polished$122.00
CdWO4 10.5x10.5x10.5mm$180.00Questions About 5x5x10 mm all sides polished
Answers based on the information published by EPIC Crystal. Anything not listed here should be confirmed with our sales team.
What is 5x5x10 mm all sides polished?
5x5x10 mm all sides polished is a CdWO4 scintillation crystal from Epic Crystal Company Limited, Dimension: 5 mm (length) x 5 mm (width) x 10 mm (height).
What is the listed price and minimum quantity?
The list price published for this item is $110.00. Prices are confirmed on quotation.
Can this be made in another size or finish?
Yes. Cutting, lathing, grinding, polishing and array assembly are in-house, so a different dimension, surface finish, reflector coating or array layout can be quoted from your drawing.
How do I order 5x5x10 mm all sides polished?
Email [email protected] with the item and quantity, or call +86 512-5013-5884.
Quote 5x5x10 mm all sides polished
Send the material, the dimensions, the surface finish and the quantity you need. Custom shapes, arrays and reflector coatings are part of what we do.
