CdWO4 scintillation crystal

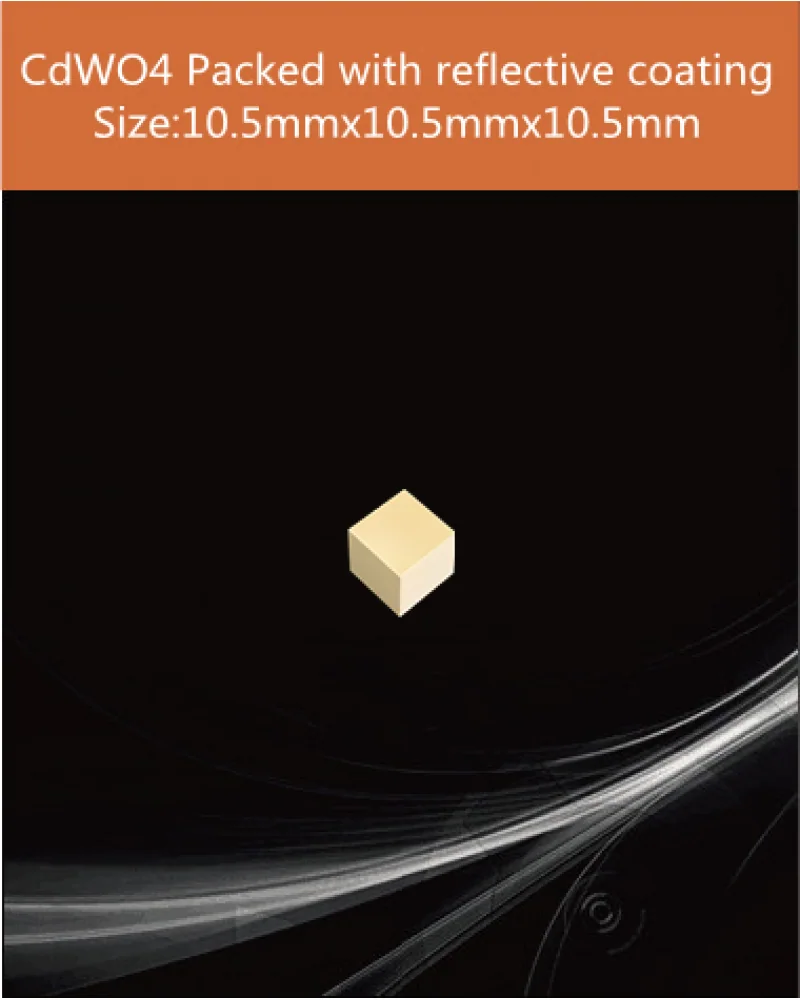

CdWO4 10.5x10.5x10.5mm
CdWO4 crystal, CdWO4 scintillator, CWO scintillation crystal, Cadmium Tungstate crystal, 10.5x10.5x10.5mm
$180.00
List price published by the factory; confirmed on quotation.
Item Details
| Dimension | 10.5 mm (length) x 10.5 mm (width) x 10.5 mm (height) |
|---|---|
| Polish | packed with reflective coating |
| Tolerance | ±0.02 mm |
| List price | $180.00 |
| Made in | Kunshan, Jiangsu, China |
Specification
- Dimension: 10.5 mm (length) x 10.5 mm (width) x 10.5 mm (height)
- Polish: packed with reflective coating
- Tolerance: ±0.02 mm
Features
- Low afterglow
- Withstands high energy radiation damage
- High density, high Z scintillator
- Suitable for low activity counting applications
- Relatively high light yield
Main Applications
- Security inspection
- X-ray computed Tomography
- High-energy physics
- Nuclear medicine
CWO Scintillator Description
Cadmium tungstate (CdWO4) crystal is a high density, high atomic number scintillator with relatively high light yield. The emission maximum is at 475nm and the total light output is 12 to 15 photons/keV. The light yield relative to NaI(Tl) is 30 to 50%
Customized CdWO4 Scintillation Crystal
Besides the scintillation crystals growth furnace, we also own completed further process equipment, included line cutting, inner circle cutting, grinding and polished machine, and with our advanced technical capability, we are able to handle complicated and special design from clients, like the through hole, reflector coating, matrix design, and so on.
For more information please visit www.epic-crystal.com, or you could directly contact our sales [email protected]
Related CdWO4 Items
All 21 in CdWO4
Questions About CdWO4 10.5x10.5x10.5mm
Answers based on the information published by EPIC Crystal. Anything not listed here should be confirmed with our sales team.
What is CdWO4 10.5x10.5x10.5mm?
CdWO4 10.5x10.5x10.5mm is a CdWO4 scintillation crystal from Epic Crystal Company Limited, Dimension: 10.5 mm (length) x 10.5 mm (width) x 10.5 mm (height).
What is the listed price and minimum quantity?
The list price published for this item is $180.00. Prices are confirmed on quotation.
Can this be made in another size or finish?
Yes. Cutting, lathing, grinding, polishing and array assembly are in-house, so a different dimension, surface finish, reflector coating or array layout can be quoted from your drawing.
How do I order CdWO4 10.5x10.5x10.5mm?
Email [email protected] with the item and quantity, or call +86 512-5013-5884.
Quote CdWO4 10.5x10.5x10.5mm
Send the material, the dimensions, the surface finish and the quantity you need. Custom shapes, arrays and reflector coatings are part of what we do.
