CdWO4 scintillation crystal

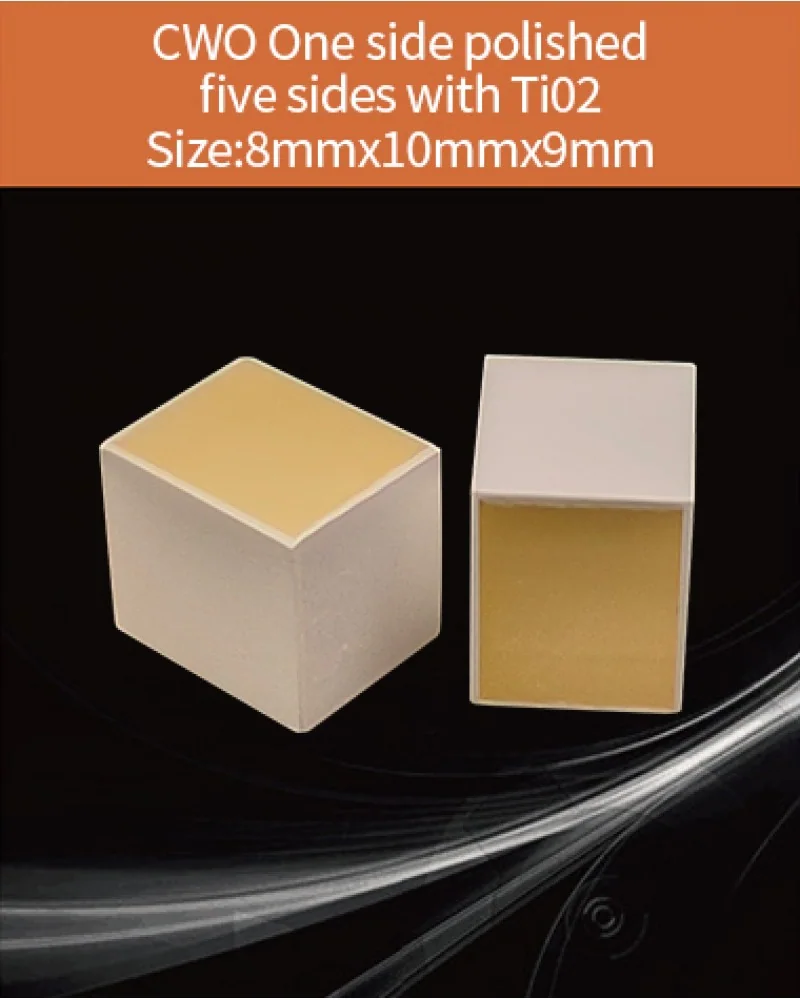

8x10x9 mm packed with reflective coating
CdWO4 crystal, CdWO4 scintillator, CWO scintillation crystal, Cadmium Tungstate crystal, 8x10x9mm with Tio2 reflection
$127.40
List price published by the factory; confirmed on quotation.
Item Details
| Product code | 8x10x9 mm packed with reflective coating |
|---|---|
| Dimension | 8 mm (length) x 10 mm (width) x 9 mm (height) |
| Polish | packed with TiO2 reflective coating |
| Tolerance | ±0.02 mm |
| Brand | EPIC Crystal |
| Availability | In Stock |
| List price | $127.40 |
| Made in | Kunshan, Jiangsu, China |
Specification
- Dimension: 8 mm (length) x 10 mm (width) x 9 mm (height)
- Polish: packed with TiO2 reflective coating
- Tolerance: ±0.02 mm
Features
- Low afterglow
- Withstands high energy radiation damage
- High density, high Z scintillator
- Suitable for low activity counting applications
- Relatively high light yield
Main Applications
- Security inspection
- X-ray computed Tomography
- High-energy physics
- Nuclear medicine
CWO Scintillator Description
Cadmium tungstate (CdWO4) crystal is a high density, high atomic number scintillator with relatively high light yield. The emission maximum is at 475nm and the total light output is 12 to 15 photons/keV. The light yield relative to NaI(Tl) is 30 to 50%
Customized CdWO4 Scintillation Crystal
Besides the scintillation crystals growth furnace, we also own completed further process equipment, included line cutting, inner circle cutting, grinding and polished machine, and with our advanced technical capability, we are able to handle complicated and special design from clients, like the through hole, reflector coating, matrix design, and so on.
For more information please visit www.epic-crystal.com, or you could directly contact our sales [email protected]
Related CdWO4 Items
All 21 in CdWO4
diameter 10x1mm both sides polished$190.00
dia.19x13.5mm all sides polished$396.00
diameter 50mm x 50mm two sides polished$2,650.00
5mm x 5mm x3mm all sides polished$122.00
CdWO4 10.5x10.5x10.5mm$180.00
10x10x10 mm all sides polished$170.00
CdWO4 10x10x3.2mm$106.00
CdWO4 10x3x2mm all sides polished$104.00Questions About 8x10x9 mm packed with reflective coating
Answers based on the information published by EPIC Crystal. Anything not listed here should be confirmed with our sales team.
What is 8x10x9 mm packed with reflective coating?
8x10x9 mm packed with reflective coating is a CdWO4 scintillation crystal from Epic Crystal Company Limited, Dimension: 8 mm (length) x 10 mm (width) x 9 mm (height).
What is the listed price and minimum quantity?
The list price published for this item is $127.40. Prices are confirmed on quotation.
Can this be made in another size or finish?
Yes. Cutting, lathing, grinding, polishing and array assembly are in-house, so a different dimension, surface finish, reflector coating or array layout can be quoted from your drawing.
How do I order 8x10x9 mm packed with reflective coating?
Email [email protected] with the item and quantity, or call +86 512-5013-5884.
Quote 8x10x9 mm packed with reflective coating
Send the material, the dimensions, the surface finish and the quantity you need. Custom shapes, arrays and reflector coatings are part of what we do.
