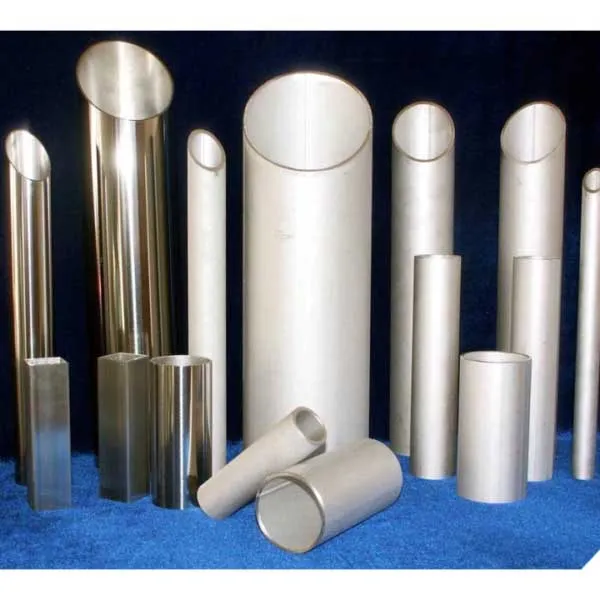

Stainless Steel Pipe Suppliers T4 Tube

Stainless Steel Pipe Suppliers T4 Tube IS ACCORDING TO UN STANDARD EN10216-5  EXCUTIVE STANDARD, EN10881 METERIAL STANDARD,KCM SPECIAL STEEL CO.,LTD CAN PRODUCE STAINLESS STEEL PIPE D3/T3 ,D4/T4 FOR ANY BUYER.

     WHAT IS Stainless Steel Pipe Suppliers T4 Tube?  THE MAIN CONTENT IS THE OUT DIAMETER AND WALL THICKNESS,LET ME INTRODUCE IT AS FOLLOWS:

OUT DIAMETER AND WALL THICKNESS TOLERENCE

    THE STAINLESS STEEL PIPES’ OD AND W.T SHOULD BE IN TOLERENCE (TABLE 1 IS HOT FINISHED STAINLESS STEEL PIPES,TABLE 2 IS COLD FINISHED STAINLESS STEEL PIPE SUPPLIER T4 TUBE AND T3 TUBE).FROM T1 TO T4 AND D1 TO D4 TOLERENCE GRADE IS ACCORDING TO STANDARD EN ISO 1127.

         TABLE1  HOT FINISHED STAINLESS STEEL PIPES OUT DIAMETER AND WALL THICKNESS  TOLERENCE REQUEST:

OD	OD TOLERENCE		W.T  TOLERENCE
MM	TOLERENCE GRADE	TOLERENCE ACCEPTED	TOLERENCE GRADE	TOLERENCE ACCEPTED
30≤OD≤219.1	D2	±1% OR ±0.5mm (PICK THE MAX DATA FROM THEM)	T1	±15% OR ±0.6mm (PICK THE MAX DATA FROM THEM)          b
			T2	±12.5% OR ±0.4mm (PICK THE MAX DATA FROM THEM)
219.1＜OD≤610	D1	±1% OR ±0.75mm (PICK THE MAX DATA FROM THEM) a		+22.5% -15%     c
			T1	±15% OR ±0.6mm (PICK THE MAX DATA FROM THEM)          d
			T2	±12.5% OR ±0.4mm (PICK THE MAX DATA FROM THEM)          e
a  WHEN U PLACE ORDER,U SHOULD FIX THE PIPE’S FORM, IN THE SATUATION,OD TOLERENCE ACCEPTED AT ±0.6% BUT THE OD≤100MM. b  USE IN WT≤0.01OD AND WT≤4MM c  USE IN WT≤0.05OD d  USE IN WT   0.05OD＜WT≤0.09OD e  USE IN WT＞0.09OD REMARKS: OD= OUT DIAMETER   WT=WALL THICKNESS

TABLE 2 COLD FINISHED STAINLESS STEEL PIPES OUT DIAMETER AND WALL THICKNESS  TOLERENCE REQUEST

OD≤219.1MM		WT TOLERENCE
TOLERENCE GRADE	TOLERENCE ACCEPTED	TOLERENCE GRADE	TOLERENCE ACCEPTED
D3	±0.75% OR ±0.3mm (PICK THE MAX DATA FROM THEM)	T3	±10% OR ±0.2mm (PICK THE MAX DATA FROM THEM)
D4 a	±0.5% OR ±0.1mm (PICK THE MAX DATA FROM THEM)	T4	±7.5% OR ±0.15mm (PICK THE MAX DATA FROM THEM)
a  TOLERENCE GRADE D4 AND T4 IS ONLY FOR COLD FINISHED STAINLESS STEEL PIPE SUPPLIERS T4 TUBE.

Stainless Steel Pipe Suppliers T4 Tube CHEMICAL COMPOSITIONS:

Stainless Steel Pipe Suppliers T4 Tube FIXED LENGTH TOLERENCE.

LENGTH L (MM)	TOLERENCE
L ≤ 6000	+ 5MM – 0
6000 ≤ L ≤ 12000	+10MM -0
L≥ 12000	+ DISCUSS WITH US -0

Stainless Steel Pipe Suppliers T4 Tube PACKING:   PLSATIC BY BUNDLES ,WOODEN CASE OR AS PER CUSTOMER REQUEST

DELIVERY: IN 10-30 DAYS

Stainless Steel Pipe Suppliers T4 Tube SIZE AVAILABLE: OD:6-610MM   WT:1-40MM

Stainless Steel Pipe Suppliers T4 Tube APPLICATIONS:

●  USE IN  CHEMICAL INDUSTRY

●  USE IN  MARINE INDUSTRY

●  USE IN  SHIPBUILDING INDUSTRY

●  USE IN  WATER INDUSTRY

●  USE IN  ONSHORE AND OFFSHORE

●  USE IN  POWER STATION INDUSTRY

●  USE IN  PRESSURE PIPE LINE

●  USE IN  FOOD INDUSTRY

●  USE IN  STEEL INDUSTRY

●  USE IN  AUTOMOTIVE INDUSTRY

●  USE IN  OIL AND GAS INDUSTRY

●  USE IN  PAPER INDUSTRY

●  USE IN  OIL FIELD PIPE LINE AND HEAT EXCHANGERS

●  USE IN  FLUE GAS DESULFURIZATION EQUIPMENT

●  USE IN  PULP MILL DIDESTERS

●  USE IN  CHIP PRE-STEAMING VESSELS

● USE IN  PHMARMACEUTICAL  INDUSTRY
