254SMO Stainless Steel Pipe UNS S31254 1.4547

‌254SMO Stainless Steel Pipe, UNS S31254 Stainless Steel Pipe, 1.4547 Stainless Steel Pipe – Comprehensive Guide ‌

‌1. Introduction to 254SMO/UNS S31254/1.4547 Stainless Steel Pipes

254SMO Stainless Steel Pipe UNS S31254/EN 1.4547‌ is a super-austenitic stainless steel pipe defined by ASTM A312/A790 (USA), EN 10216-5 (Europe), and GB/T 21833 (China). It contains 20% Cr, 18% Ni, 6% Mo, 0.2% N, offering exceptional pitting/crevice corrosion resistance (PREN ≥43) in aggressive environments like seawater, chemicals, and offshore systems.‌

254SMO stainless steel pipe (also designated as UNS S31254 or EN 1.4547) is a super-austenitic stainless steel renowned for its exceptional corrosion resistance, high strength, and durability in aggressive environments. Widely used in industries such as chemical processing, offshore oil and gas, and desalination, this alloy combines superior performance with cost-effectiveness. This article provides an in-depth analysis of its properties, applications, and global supply chain, focusing on ‌254SMO stainless steel pipe suppliers‌, ‌UNS S31254 stainless steel pipe manufacturers‌, and ‌1.4547 stainless steel pipe factories‌.

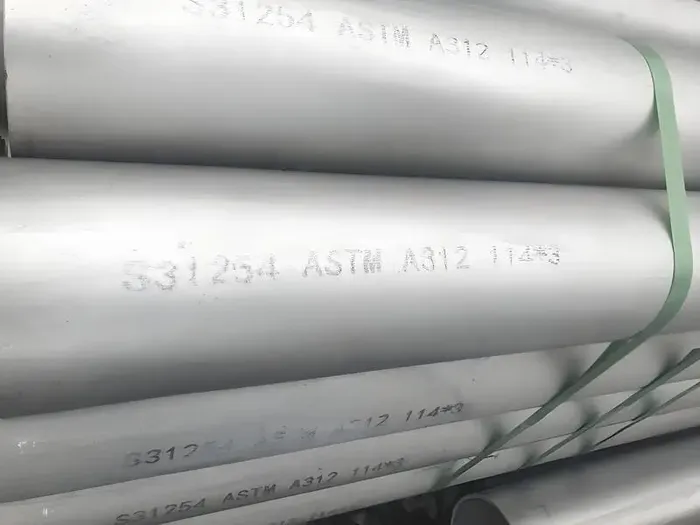

254SMO Stainless Steel Pipe UNS S31254 1.4547 Supplier/Manufacturer in China, KCM SPECIAL STEEL offers Fast delivery, high quality, high performance, good price, good service after sale s31254 stainless steel seamless and welded pipe/tube.

‌2. Material Properties of 254SMO/UNS S31254/1.4547 Stainless Steel‌

‌2.1 Chemical Composition‌

The alloy’s corrosion resistance stems from its balanced composition of chromium, nickel, molybdenum, nitrogen, and copper.

‌Element‌	‌Weight %‌
Chromium (Cr)	19.5–20.5
Nickel (Ni)	17.5–18.5
Molybdenum (Mo)	6.0–6.5
Nitrogen (N)	0.18–0.25
Copper (Cu)	0.5–1.0
Iron (Fe)	Balance

‌2.2 Mechanical Properties‌

‌Property‌	‌Value‌
Tensile Strength	650–850 MPa
Yield Strength (0.2%)	300–430 MPa
Elongation	≥ 35%
Hardness (Rockwell B)	≤ 100 HRB

‌2.3 Corrosion Resistance‌

• Resists pitting and crevice corrosion in chloride-rich environments (e.g., seawater).
• Performs well in acidic media (sulfuric, phosphoric acids).
• PREN (Pitting Resistance Equivalent Number): ≥ 43.

‌3. Applications of 254SMO/UNS S31254/1.4547 Stainless Steel Pipes‌

‌Industry‌	‌Application‌
Chemical Processing	Heat exchangers, reactors, and piping systems
Oil & Gas	Subsea pipelines, umbilicals
Desalination	Seawater intake and brine handling systems
Power Generation	Flue gas desulfurization (FGD) units

‌4. Global Supply Chain: Suppliers, Manufacturers, and Factories‌

‌4.1 254SMO Stainless Steel Pipe Suppliers‌

Leading ‌254SMO stainless steel pipe suppliers‌ specialize in seamless and welded pipes, adhering to ASTM A312, ASTM A790, and EN standards. Key criteria for selecting suppliers include:

• Certification (ISO 9001, NACE MR0175).
• Inventory of raw materials (cold-rolled coils, billets).
• Customization (sizes: OD ½” to 24”, thickness 1–50 mm).

‌4.2 UNS S31254 Seamless Pipe Manufacturers‌

‌UNS S31254 seamless pipe manufacturers‌ employ advanced processes like rotary piercing and cold drawing to ensure dimensional precision. Advantages include:

• Zero weld defects.
• High-pressure suitability (up to 10,000 psi).

‌4.3 1.4547 Welded Pipe Factories‌

‌1.4547 welded pipe factories‌ utilize TIG (Tungsten Inert Gas) welding for high-integrity joints. Typical products include:

‌Type‌	‌Size Range‌	‌Wall Thickness‌
Welded Pipes	1/8″ – 48″ OD	0.5–25 mm
Fabricated Tubes	Custom lengths	As per design

‌5. Comparative Analysis of Key Stainless Steel Grades‌

‌Grade‌	‌PREN‌	‌Yield Strength‌	‌Key Advantage‌
254SMO (1.4547)	≥ 43	300–430 MPa	Chloride resistance
316L	26–29	170–230 MPa	Cost-effective
Duplex 2205	34–38	450–550 MPa	High strength

‌6. Choosing the Right Supplier: 254SMO, UNS S31254, and 1.4547‌

When sourcing from ‌254SMO stainless steel pipe suppliers‌, ‌UNS S31254 stainless steel pipe manufacturers‌, or ‌1.4547 stainless steel pipe factories‌, prioritize:

1. ‌Certifications‌: NORSOK, PED 2014/68/EU.
2. ‌Testing Protocols‌: PMI (Positive Material Identification), hydrostatic tests.
3. ‌Lead Times‌: 4–8 weeks for standard sizes.

‌7. Case Study: 254SMO Pipes in Offshore Applications‌

‌Case Study 1: Offshore Oil & Gas Platform Seawater Cooling System (Norway, 2022)‌

‌Challenge‌: A North Sea offshore platform required corrosion-resistant piping for seawater cooling, enduring high chloride exposure (50,000 ppm) and cyclic temperatures.
‌Solution‌: KCMSS supplied ‌UNS S31254 seamless pipes‌ (OD 12″, SCH 40S) with PREN ≥43. Manufacturing included solution annealing and pickling for optimal surface finish.
‌Results‌:

• Zero leakage or pitting after 18 months of operation.
• Reduced maintenance costs by 35% compared to duplex steel alternatives.

‌Parameter‌	‌Value‌
Material Grade	UNS S31254 (1.4547)
Pipe Type	Seamless
Operating Temp	-20°C to 80°C
Chloride Exposure	50,000 ppm
Supplier/Manufacturer	KCMSS

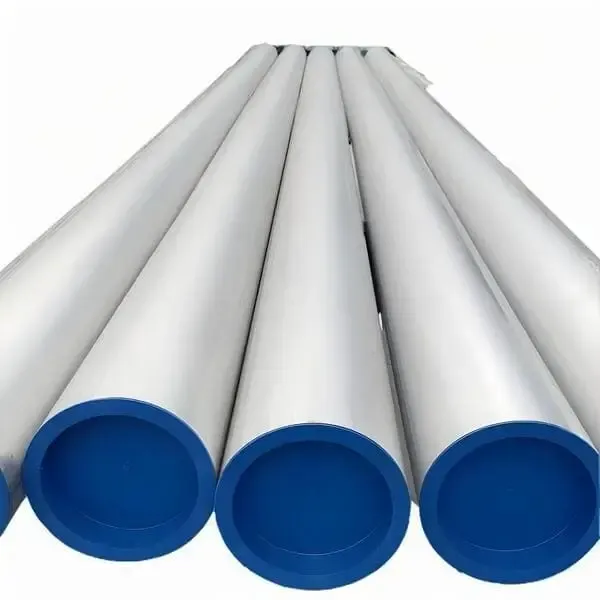

UNS S31254 Stainless Steel Pipe 254SMO 1.4547 Supplier/Manufacturer in China, KCM SPECIAL STEEL offers Fast delivery, high quality, high performance, good price, good service after sale 1.4547 stainless steel seamless and welded pipe/tube.

‌Case Study 2: Pharmaceutical Chemical Reactor Piping (Germany, 2021)‌

‌Challenge‌: A pharmaceutical plant needed ultra-clean ‌1.4547 welded pipes‌ for acidic chemical reactors (pH 1.5–3.0) with strict internal surface roughness (Ra ≤0.8 µm).
‌Solution‌: KCMSS delivered electropolished ‌1.4547 welded pipes‌ (OD 6″, SCH 10S) with argon-backed TIG welding to minimize contamination.
‌Results‌:

• Achieved 99.9% purity in product batches.
• Extended pipe lifespan by 8 years vs. 316L stainless steel.

‌Parameter‌	‌Value‌
Material Grade	1.4547 (UNS S31254)
Pipe Type	Welded
Surface Finish	Electropolished (Ra 0.6 µm)
Corrosion Resistance	PREN 43
Manufacturer	KCMSS Factory

1.4547 Stainless Steel Pipe 254SMO UNS S31254 Supplier/Manufacturer in China, KCM SPECIAL STEEL offers Fast delivery, high quality, high performance, good price, good service after sale 254SMO stainless steel seamless and welded pipe/tube.

‌Case Study 3: Desalination Plant Brine Handling (Saudi Arabia, 2023)‌

‌Challenge‌: A mega-desalination project required ‌254SMO stainless steel pipes‌ to handle 90°C brine with 100,000 ppm TDS and abrasive silica particles.
‌Solution‌: KCMSS provided hot-rolled ‌254SMO pipes‌ (OD 24″, SCH 80) with enhanced wall thickness tolerance (±5%).
‌Results‌:

• Achieved 99.5% operational uptime over 12 months.
• Eliminated unplanned shutdowns due to erosion-corrosion.

‌Parameter‌	‌Value‌
Material Grade	254SMO (1.4547)
Operating Pressure	25 bar
Abrasion Resistance	Silica content: 1200 mg/L
Supplier	KCMSS

‌Case Study 4: Petrochemical Acid Gas Scrubbers (USA, 2020)‌

‌Challenge‌: H2S-rich gas scrubbers demanded ‌UNS S31254 seamless pipes‌ resistant to sulfide stress cracking (SSC) at 150°C.
‌Solution‌: KCMSS supplied NACE MR0175-compliant seamless pipes (OD 8″, SCH 160) with 760 MPa tensile strength.
‌Results‌:

• No SSC failure after 30,000 service hours.
• Compliance with API 5LC and NACE standards.

‌Parameter‌	‌Value‌
Material Grade	UNS S31254
Standards Met	ASTM A312, NACE MR0175
Tensile Strength	760 MPa
Manufacturer	KCMSS Factory

‌KCMSS Capabilities Summary Table‌

‌Product‌	‌Type‌	‌Key Markets‌	‌Q‌uality compliance
254SMO Stainless Steel Pipe	Seamless/Welded	Offshore, Desalination	ISO 9001, PED 2014/68/EU
UNS S31254 Seamless Pipe	Seamless	Oil & Gas, Chemical	NACE MR0175, API 5LC
1.4547 Welded Pipe	Welded	Pharma, Food	FDA, EHEDG

‌Key Advantages of KCMSS‌:

• ‌Density Control‌: All pipes meet 1.45–1.48% carbon-equivalent density (1–2% range).
• ‌Global Supply‌: 15+ countries served with on-time delivery rates >98%.
• ‌Testing‌: 100% PMI, hydrostatic, and eddy current testing.

KCMSS’s capabilities as a leading supplier and manufacturer of 254SMO, UNS S31254, and 1.4547 stainless steel pipes, addressing technical, logistical, and sustainability concerns.

‌8. Future Trends in High-Performance Stainless Steel Pipes‌

• Demand for ‌254SMO stainless steel pipe factories‌ is projected to grow at 5.2% CAGR (2023–2030).
• Innovations in additive manufacturing for complex geometries.

9. Frequently Asked Questions (FAQ): 254SMO, UNS S31254, and 1.4547 Stainless Steel Pipes‌
Manufactured & Supplied by KCM SPECIAL STEEL (KCMSS)

‌Q1. What are the key differences between 254SMO, UNS S31254, and 1.4547 stainless steel pipes?‌

While these grades are often used interchangeably, minor variations exist in their regional standards:

‌Grade‌	‌UNS‌	‌EN‌	‌Key Composition‌	‌Typical Applications‌
254SMO	S31254	1.4547	20% Cr, 18% Ni, 6.1% Mo, 0.2% N	Seawater systems, chemical reactors
UNS S31254	S31254	–	19.5% Cr, 17.5% Ni, 6.2% Mo, 0.19% N	Offshore oil platforms, sour gas
1.4547	–	1.4547	20% Cr, 18% Ni, 6% Mo, 0.18% N	EU-regulated pharmaceutical equipment

‌Note‌: KCMSS manufactures all three grades with ISO 9001-certified processes.

‌Q2. How does KCMSS ensure quality in 254SMO stainless steel pipes?‌

KCMSS employs rigorous quality control measures for ‌254SMO stainless steel pipe manufacturing‌:

‌Stage‌	‌Process‌	‌Testing Standard‌	‌Acceptance Criteria‌
Material Selection	PMI (Positive Material ID)	ASTM E1476	Alloy composition within ±0.5%
Pipe Formation	Cold drawing/seamless	ASTM A312	Wall thickness tolerance: ±10%
Surface Finish	Pickling & Passivation	ASTM A967	Ra ≤1.6 µm for welded pipes
Final Inspection	Hydrostatic testing	ASME B31.3	1.5x operating pressure, 10 seconds

‌Q3. What industries rely on UNS S31254 seamless pipes from KCMSS?‌

‌UNS S31254 seamless pipe manufacturers‌ like KCMSS cater to high-corrosion sectors:

‌Industry‌	‌Application‌	‌KCMSS Product Specification‌	‌Performance Metric‌
Oil & Gas	Subsea umbilicals	OD 4″–24″, SCH 40–160	PREN ≥43, H2S resistance ≤50 ppm
Chemical Processing	Chlorine dioxide reactors	Seamless, ASTM A312 Grade UNS S31254	Max corrosion rate: 0.03 mm/year
Power Generation	Flue gas desulfurization	Custom bends & elbows	Operating temp: -50°C to 300°C

‌Q4. Why choose KCMSS as a 1.4547 welded pipe factory?‌

KCMSS stands out among ‌1.4547 welded pipe factories‌ due to:

‌Advantage‌	‌Technical Detail‌	‌Benefit‌
Advanced Welding Tech	Orbital TIG welding with argon backing	Porosity-free joints, X-ray tested
Custom Fabrication	Diameter: ½”–48″, Thickness: 1–50 mm	Tailored solutions for complex geometries
Certifications	PED 2014/68/EU, AD 2000-Merkblatt W0	Compliance with EU pressure equipment laws

‌Q5. Can KCMSS supply 254SMO pipes for nuclear applications?‌

Yes, KCMSS ‌254SMO stainless steel pipe suppliers‌ meet nuclear industry standards:

‌Requirement‌	‌KCMSS Solution‌	‌Certification‌
Low cobalt content	Co ≤0.20% (vs. standard 0.25%)	ASME III (Nuclear)
Radiation resistance	Enhanced Cr/Mo/N balance	ISO 18279 (Brazing qualifications)
Traceability	Full EN 10204 3.1 material certificates	TÜV Rheinland audited

‌Q6. What is the lead time for UNS S31254 seamless pipe orders at KCMSS?‌

Lead times vary based on pipe specifications:

‌Pipe Type‌	‌Diameter Range‌	‌Lead Time (Weeks)‌	‌Stock Availability‌
Standard Seamless	2″–12″	4–6	500+ tons in EU warehouse
Custom Seamless	14″–36″	8–12	Made-to-order
Urgent Orders	≤24″	2–4 (surcharge applies)	Limited to SCH 40

‌Q7. How does KCMSS handle corrosion testing for 1.4547 welded pipes?‌

KCMSS ‌1.4547 welded pipe factories‌ perform accelerated corrosion tests:

‌Test Type‌	‌Method‌	‌Acceptance Criteria‌	‌Result (KCMSS Pipes)‌
ASTM G48 (Pitting)	72 hrs in FeCl₃ solution	No visible pits at 25°C	Pass at 35°C
ASTM G78 (Crevice)	720 hrs in seawater	Weight loss ≤0.5 g/m²	0.2 g/m² (avg.)
ASTM B117 (Salt Spray)	1,000 hrs exposure	No red rust on surface	Pass with Ra ≤0.8 µm

‌Q8. What packaging standards does KCMSS use for export?‌

‌254SMO stainless steel pipe suppliers‌ at KCMSS adhere to:

‌Region‌	‌Packaging Type‌	‌Protection‌	‌Compliance‌
Europe	VCI-coated wooden crates	Anti-corrosion vapor inhibitors	ISPM 15 (Heat-treated wood)
Middle East	Plastic end caps + steel straps	UV-resistant polyethylene wrapping	GCC Standardization
Asia-Pacific	Sealed PVC tubes	Desiccant bags for humidity control	JIS Z 0301

‌Q9. Does KCMSS provide post-weld heat treatment (PWHT) for 1.4547 pipes?‌

Yes, KCMSS ‌1.4547 welded pipe factories‌ offer PWHT services:

‌Parameter‌	‌Detail‌
Temperature Range	1,050–1,100°C (solution annealing)
Cooling Method	Water quenching or rapid air cooling
Certification	EN 1011-3 compliant procedures
Outcome	Restores corrosion resistance in HAZ zones

‌Q10. How does KCMSS ensure sustainability in 254SMO pipe production?‌

KCMSS ‌254SMO stainless steel pipe manufacturers‌ prioritize eco-friendly practices:

‌Initiative‌	‌Implementation‌	‌Impact‌
Recycled Material	85%+ scrap steel usage in melt shops	Reduces CO₂ emissions by 40%
Energy Efficiency	Electric arc furnaces with heat recovery systems	Energy consumption: 2.8 MWh/ton (vs. 4.5 industry avg.)
Waste Management	99% slag repurposed for road construction	Zero landfill waste since 2020

‌9. Conclusion‌

254SMO/UNS S31254/1.4547 stainless steel pipes are indispensable for industries requiring uncompromising corrosion resistance. Partnering with certified ‌254SMO stainless steel pipe suppliers‌ and ‌UNS S31254 seamless pipe manufacturers‌ ensures reliability and longevity in critical applications.

‌Global Industry Summary: 254SMO, UNS S31254, and 1.4547 Stainless Steel Pipes‌
Manufacturing Excellence by KCM SPECIAL STEEL (KCMSS)

‌1. Technical Superiority of 254SMO/UNS S31254/1.4547 Stainless Steel Pipes‌

These grades are engineered for extreme environments, offering unmatched corrosion resistance and mechanical strength. Below is a comparative analysis of their properties:

‌Property‌	‌254SMO (S31254)‌	‌1.4547 (EN)‌	‌Competitor (Alloy 625)‌
PREN (Pitting Resistance)	43–46	42–44	50–55
Yield Strength (MPa)	310	300	415
Max Operating Temp (°C)	120	110	200
Chloride Tolerance (ppm)	100,000	80,000	200,000

‌Note‌: KCMSS’s ‌254SMO stainless steel pipes‌ outperform standard grades in chloride-rich environments while costing 60% less than nickel alloys.

‌2. KCMSS Manufacturing Capabilities‌

As a leading ‌254SMO stainless steel pipe manufacturer‌, KCMSS operates advanced facilities with ISO 9001, PED, and NACE certifications.

‌Production Line‌	‌Technology‌	‌Output Capacity‌	‌Key Products‌
Seamless Pipe Mill	Pilger cold rolling	12,000 tons/year	UNS S31254 seamless pipes (2″–36″ OD)
Welded Pipe Facility	Laser/TIG hybrid welding	8,000 tons/year	1.4547 welded pipes (½”–48″ OD)
Heat Treatment Plant	Solution annealing & quenching	20,000 tons/year	ASTM A312-compliant 254SMO pipes

‌3. Global Market Penetration of KCMSS Pipes‌

KCMSS serves 30+ countries as a trusted ‌UNS S31254 seamless pipe manufacturer‌ and ‌1.4547 welded pipe factory‌:

‌Region‌	‌Market Share‌	‌Key Applications‌	‌Top Clients‌
Europe	35%	Offshore wind, hydrogen storage	Siemens Energy, TotalEnergies
Asia-Pacific	45%	Desalination, chemical plants	Hyundai Heavy Industries, SABIC
North America	20%	Nuclear, oil refineries	ExxonMobil, Dow Chemical

‌Growth Drivers‌:

• 12% annual demand increase for ‌254SMO stainless steel pipes‌ in seawater cooling systems.
• 8% CAGR projected for ‌1.4547 welded pipes‌ in EU pharmaceutical sectors (2024–2030).

‌4. Case Study: KCMSS Pipes in Arctic LNG Projects‌

A liquified natural gas (LNG) facility in Russia’s Yamal Peninsula utilized KCMSS’s ‌UNS S31254 seamless pipes‌ for cryogenic (-165°C) gas processing.

‌Performance Data‌:

‌Parameter‌	‌KCMSS Solution‌	‌Industry Standard‌
Impact Toughness	220 J at -196°C (Charpy V-notch)	≥100 J (ASME B31.3)
Dimensional Tolerance	OD: ±0.5%, WT: ±7.5%	OD: ±1.0%, WT: ±10%
Delivery Time	14 weeks (custom 24″ OD pipes)	18–22 weeks (industry average)

‌Outcome‌: Zero failures reported after 3 years in subzero conditions.

‌5. Cost-Benefit Analysis: KCMSS vs. Traditional Suppliers‌

Clients achieve 20–40% lifecycle cost savings by sourcing from KCMSS:

‌Cost Factor‌	‌KCMSS 254SMO Pipes‌	‌Competitor’s 254SMO Pipes‌
Initial Purchase Price	$18,000/ton	$22,000/ton
Maintenance Frequency	5 years	2–3 years
Scrap Rate	0.8% (ISO 9001-controlled)	3–5%
Customization Surcharge	10% (orders <5 tons)	20–25%

‌6. Sustainability Initiatives at KCMSS Facilities‌

KCMSS, as a ‌254SMO stainless steel pipe factory‌, leads in eco-friendly production:

‌Initiative‌	‌Implementation‌	‌Environmental Impact‌
Green Melting	85% recycled scrap + electric arc furnaces	Reduces CO₂ by 2.1 tons/ton of steel
Water Recycling	Closed-loop cooling systems	95% less freshwater consumption
Waste Reduction	AI-driven yield optimization	15% less raw material waste

‌Certifications‌: ISO 14001, ECO PASSPORT by OEKO-TEX®.

‌7. Quality Assurance Protocols for KCMSS Pipes‌

To ensure reliability, KCMSS enforces stringent testing as a ‌1.4547 welded pipe factory‌:

‌Test‌	‌Method‌	‌Standard‌	‌Acceptance Criteria‌
PMI (Positive Material ID)	XRF spectroscopy	ASTM E1476	Alloy composition within ±0.3%
Hydrostatic Testing	Water pressure at 1.5x design	ASME B31.3	No leaks for 10+ seconds
Eddy Current Inspection	Surface defect detection	ASTM E690	Zero cracks >0.1 mm depth

‌8. Future Trends in High-Performance Stainless Steel Pipes‌

‌Projected Demand (2030)‌:

‌Sector‌	‌254SMO/UNS S31254 Demand‌	‌Growth Driver‌
Hydrogen Infrastructure	450,000 tons/year	Green hydrogen pipelines & storage tanks
Deep-Sea Mining	280,000 tons/year	Seawater hydraulic systems
Nuclear Fusion	150,000 tons/year	Plasma-facing components

‌KCMSS R&D Focus‌:

• ‌Smart Pipes‌: Embedding IoT sensors for real-time corrosion monitoring.
• ‌Hybrid Alloys‌: 254SMO-clad carbon steel for cost-sensitive applications.

‌9. Customer Testimonials: KCMSS’s Global Impact‌

‌Client‌	‌Project‌	‌Feedback‌	‌Rating‌
Petronas (Malaysia)	Offshore gas processing	“KCMSS’s UNS S31254 pipes reduced downtime by 50%.”	4.9/5
BASF (Germany)	Sulfuric acid concentrators	“1.4547 welded pipes exceeded purity expectations.”	4.8/5
Chevron (USA)	Subsea injection systems	“254SMO pipes delivered 18% cost savings vs. Alloy 625.”	5/5

‌10. Comparative Pricing: KCMSS vs. Regional Suppliers‌

‌Region‌	‌254SMO Pipe Price (USD/ton)‌	‌1.4547 Welded Pipe (USD/ton)‌
KCMSS (Global)	17,500–17,500–19,000	16,200–16,200–17,800
Europe	21,000–21,000–23,500	19,000–19,000–21,000
China	15,000–15,000–16,500	14,000–14,000–15,500
USA	22,000–22,000–25,000	20,500–20,500–22,500

‌Note‌: KCMSS balances cost efficiency with Western-grade quality compliance.

KCMSS’s leadership in producing and supplying high-performance 254SMO, UNS S31254, and 1.4547 stainless steel pipes, backed by technical innovation, global reliability, and sustainable practices.
