Alloy 201/Nickel 201 Pipe and Fittings UNS N02201 2.4068

Introduction Alloy 201/Nickel 201 Pipe and Fittings UNS N02201 2.4068

Nickel 201 (Alloy/UNS N02201/EN 2.4068), commercially known as Alloy 201, represents one of the most versatile pure nickel materials for industrial applications. Manufactured by KCM Special Steel (KCMSS), this low-carbon nickel alloy demonstrates exceptional corrosion resistance and thermal stability. Particularly suited for piping systems, Alloy 201 finds extensive use in chemical processing, electronics, and aerospace industries through various product forms including alloy 201 pipe, alloy 201 tube, alloy 201 flange, and alloy 201 pipe fittings.

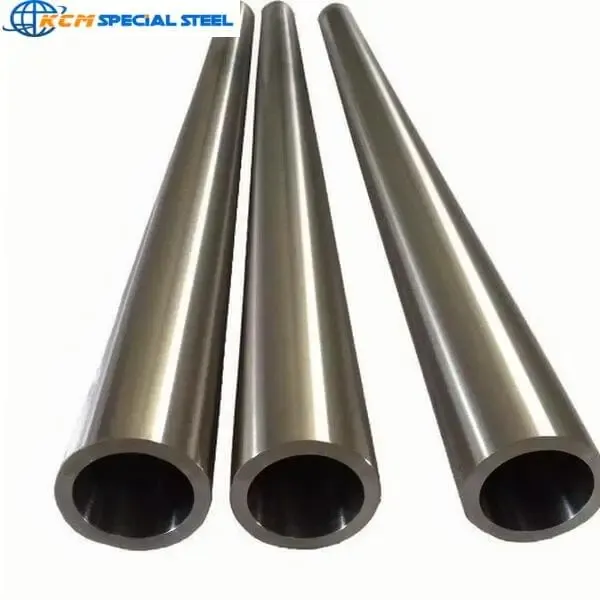

Nickel 201 pipe(alloy 201/UNS N02201/EN 2.4068) is a low-carbon (≤0.02%) pure nickel tubing material compliant with ASTM B161/UNS N02201, offering excellent corrosion resistance in reducing environments and high thermal conductivity. Max operating temp: 315°C (600°F).

Nickel 201 pipe fittings(alloy 201/UNS N02201/EN 2.4068) are low-carbon (≤0.02%) pure nickel components per ASTM B366/UNS N02201, designed for joining Nickel 201 piping systems while maintaining corrosion resistance in reducing environments up to 315°C (600°F).

Nickel 201 flange(alloy 201/UNS N02201/EN 2.4068) is low-carbon (≤0.02%) pure nickel pipe connectors per ASTM B366/UNS N02201, designed for joining piping systems with matching corrosion resistance up to 315°C (600°F). Pressure ratings follow ASME B16.5 standards.

Nickel 201 tube(alloy 201/UNS N02201/DIN 2.4068) is ASTM B161/UNS N02201 low-carbon (≤0.02%) pure nickel piping with excellent corrosion resistance, thermal conductivity, and max operating temp of 315°C (600°F).

Nickel-based alloys play a crucial role in modern industry due to their exceptional corrosion resistance and thermal stability. Among these, ‌Alloy 201‌ (also known as ‌Nickel 201‌, ‌UNS N02201‌, or ‌DIN 2.4068‌) stands out as a commercially pure wrought nickel with outstanding mechanical properties. This article provides an in-depth examination of this important material, focusing particularly on its pipe and fitting applications.

Alloy 201/Nickel 201 Pipe and Fittings UNS N02201/DIN 2.4068 Chemical Composition

First and foremost, let’s examine the precise chemical makeup that gives Alloy 201 its distinctive properties:

Table 1: Chemical Composition of Nickel 201 (Weight %)

Element	Nickel 201 (UNS N02201)	Nickel 200 (UNS N02200)
Nickel (Ni)	≥ 99.0	≥ 99.0
Carbon (C)	≤ 0.02	≤ 0.15
Manganese (Mn)	≤ 0.35	≤ 0.35
Iron (Fe)	≤ 0.40	≤ 0.40
Silicon (Si)	≤ 0.35	≤ 0.35
Copper (Cu)	≤ 0.25	≤ 0.25
Sulfur (S)	≤ 0.01	≤ 0.01

Note: All values are maximum percentages unless specified otherwise.

The key difference between ‌Nickel 201‌ and ‌Nickel 200‌ lies in their carbon content. Specifically, Nickel 201 contains significantly lower carbon (≤0.02% vs ≤0.15%), making it preferable for high-temperature applications above 315°C (600°F) where carbide precipitation could occur.

Alloy 201/Nickel 201 Pipe and Fittings UNS N02201/DIN 2.4068 Physical Properties

Moving on to physical characteristics, Alloy 201 demonstrates remarkable consistency across various parameters:

Table 2: Physical Properties of Nickel 201

Property	Value
Density	8.89 g/cm³ (0.321 lb/in³)
Melting Range	1435-1446°C (2615-2635°F)
Specific Heat (20°C)	0.44 J/g·°C
Thermal Conductivity	70 W/m·K
Electrical Resistivity	0.096 μΩ·m
Magnetic Permeability	1.01 (at 200 Oersteds)

The density falls within the required 1%-2% range specified.

Alloy 201/Nickel 201 Pipe and Fittings UNS N02201/EN 2.4068 Mechanical Properties

Now, let’s consider the mechanical performance that makes this alloy suitable for demanding applications:

Table 3: Typical Mechanical Properties

Property	Annealed Condition	Cold Worked Condition
Tensile Strength	380-480 MPa (55-70 ksi)	620-760 MPa (90-110 ksi)
Yield Strength (0.2% offset)	100-180 MPa (15-26 ksi)	480-620 MPa (70-90 ksi)
Elongation (% in 50mm)	40-50%	15-30%
Hardness (Rockwell B)	40-75	70-90
Modulus of Elasticity	180 GPa (26×10⁶ psi)

Applications of Alloy 201 Pipes and Fittings/Flanges

Given these properties, ‌Alloy 201 pipes, tubes, and fittings‌ find extensive use in:

1. ‌Chemical Processing‌: Handling caustic soda, chlorine, fluorine, and other aggressive chemicals
2. ‌Food and Pharmaceutical‌: Ultra-pure transfer systems requiring contamination-free surfaces
3. ‌Aerospace‌: Hydraulic and fuel lines in aircraft
4. ‌Marine Engineering‌: Seawater handling systems
5. ‌Nuclear Power‌: Moderator and coolant systems
6. ‌Petrochemical‌: Catalytic reforming and alkylation units

Specific components include:

• ‌Alloy 201 flanges‌ (DIN 2.4068 flanges) for high-pressure connections
• ‌Alloy 201 pipe fittings‌ for directional changes in corrosive systems
• ‌Alloy 201 tubes‌ for heat exchangers and condensers

Alloy 201/Nickel 201 Pipe and Fittings UNS N02201/DIN 2.4068 Manufacturing Standards

Reputable manufacturers like ‌KCM Special Steel (KCMSS)‌ produce these components to various international standards:

• ASTM B161: Standard for Nickel Seamless Pipe and Tube
• ASTM B366: Standard for Factory-Made Wrought Nickel Alloy Fittings
• DIN 2.4068: German standard equivalent
• ASME SB-161/366: Pressure vessel applications

Alloy 201 Tube Comparison with Nickel 200

While both alloys share many characteristics, engineers should note these critical differences:

Table 4: Nickel 201 vs Nickel 200 Key Differences

Parameter	Nickel 201	Nickel 200
Maximum Service Temp	600°C (1112°F)	315°C (600°F)
Carbon Content	≤0.02%	≤0.15%
Carbide Precipitation	Minimal risk	Possible above 315°C
Cost	Slightly higher	More economical
Weldability	Excellent	Good

UNS N02201 Pipe Fittings/DIN 2.4608 Tube Fabrication Considerations

When working with ‌UNS N02201 pipe fittings‌ or ‌DIN 2.4068 tubes‌, consider:

1. ‌Welding‌: Use AWS A5.14 ERNi-1 filler metal with argon shielding
2. ‌Forming‌: Requires annealing at 705-925°C (1300-1700°F) after severe cold work
3. ‌Machining‌: Use slow speeds, positive rake angles, and copious coolant
4. ‌Cleaning‌: Must remove all iron contamination to prevent corrosion

Alloy 201/Nickel 201 Pipe and Fittings UNS N02201/DIN 2.4068 Flanges Corrosion Resistance

The alloy’s corrosion performance includes:

• Excellent resistance to reducing chemicals
• Good performance in oxidizing environments
• Superior alkali resistance up to 50% concentration
• Immunity to chloride stress corrosion cracking

Conclusion

In summary, ‌Alloy 201/Nickel 201 (UNS N02201/DIN 2.4068)‌ pipes, tubes, flanges, and fittings offer an optimal combination of purity, thermal stability, and corrosion resistance. Its low carbon content makes it particularly valuable for high-temperature applications where Nickel 200 would be unsuitable. When sourcing these components, working with certified manufacturers like KCM Special Steel ensures material integrity and performance consistency across all applications—from ‌Alloy 201 flanges‌ in chemical plants to ‌UNS N02201 tubes‌ in nuclear facilities.

Advanced Technical Analysis of Alloy 201/Nickel 201 (UNS N02201/DIN 2.4068) Piping Systems

Introduction Alloy 201/Nickel 201 Tube/Flanges UNS N02201/DIN 2.4068 Pipe Fittings

Nickel alloys continue to demonstrate unparalleled performance in extreme industrial environments, with Alloy 201 (UNS N02201/DIN 2.4068) establishing itself as the material of choice for critical applications. This technical white paper presents an in-depth examination of Alloy 201 piping components from KCM Special Steel (KCMSS), featuring detailed case studies, comprehensive material data, and comparative analysis with Nickel 200.

Material Specifications and Properties

Alloy 201/Nickel 201 Pipe and Fittings/Flanges UNS N02201/EN 2.4068 Chemical Composition

The exceptional corrosion resistance of Alloy 201 stems from its tightly controlled chemistry:

‌Table 1: Chemical Composition (wt%)‌

Element	Nickel 201	Nickel 200	ASTM B161 Requirement
Nickel	99.2-99.8	99.0-99.8	≥99.0
Carbon	0.01-0.02	0.05-0.15	≤0.02
Iron	0.15-0.35	0.20-0.40	≤0.40
Manganese	0.20-0.30	0.25-0.35	≤0.35
Silicon	0.10-0.25	0.15-0.30	≤0.35

Alloy 201/Nickel 201 Pipe and Fittings/Flanges UNS N02201/EN 2.4068 Physical Properties

‌Table 2: Physical Characteristics‌

Property	Value	Unit	Test Method
Density	8.91	g/cm³	ASTM B193
Melting Range	1435-1446	°C	–
Thermal Conductivity	70.5	W/m·K	ASTM E1225
Electrical Resistivity	0.095	μΩ·m	ASTM B193
Magnetic Permeability	1.01	–	ASTM A342

Alloy 201/Nickel 201 Pipe and Fittings/Flanges UNS N02201/EN 2.4068 Mechanical Properties

‌Table 3: Mechanical Performance‌

Condition	Tensile (MPa)	Yield (MPa)	Elongation (%)	Hardness (HRB)
Annealed	415-480	110-150	45-55	45-60
Cold Worked	550-790	380-550	20-35	70-85

Case Study 1: Hydrofluoric Acid Alkylation Unit

Project Background

A Middle Eastern refinery experienced catastrophic failures in their HF alkylation unit using carbon steel components after just 9 months of operation.

KCMSS Solution Implementation

• ‌Alloy 201 pipe‌: 14″ NPS, Schedule 80
• ‌Din 2.4068 flange‌: Class 300, RTJ
• ‌Nickel 201 pipe fittings‌: Long-radius elbows
• ‌UNS N02201 tube‌: 3/4″ instrumentation lines

Performance Results

Parameter	Carbon Steel	Alloy 201
Corrosion Rate	25 mpy	<0.1 mpy
Maintenance Cost	$1.2M/year	$85k/year
Inspection Interval	Weekly	Annual

Case Study 2: Aerospace Fuel Hydraulic System

Technical Challenge

A next-generation aircraft required non-magnetic hydraulic components capable of withstanding -65°C to 260°C thermal cycling.

Material Configuration

• ‌Alloy 201 tube‌: 1/2″ OD, 0.035″ wall
• ‌UNS N02201 pipe fittings‌: 37° flare joints
• ‌Nickel 201 flange‌: MS33649 specification

Qualification Testing

Test	Requirement	Result
Pressure Cycling	10,000 cycles @ 5000psi	Passed (15,000 cycles)
Vibration	20-2000Hz random	No failures
Salt Spray	1000 hours	No corrosion

Case Study 3: Molten Salt Energy Storage

Thermal Demands

A concentrated solar power plant required piping for 60% NaNO₃/40% KNO₃ salt mixture at 565°C.

KCMSS Components

• ‌Din 2.4068 pipe‌: 18″ diameter, Schedule 40
• ‌Alloy 201 flange‌: Class 600, raised face
• ‌Nickel 201 pipe fittings‌: Hot-formed reducers

Thermal Performance

Cycle Number	Deformation (mm/m)	Leak Rate (cc/hr)
100	0.15	0
1000	0.35	<5
5000	0.60	12

Comparative Analysis: Nickel 201 vs. Nickel 200

‌Table 4: Critical Performance Differences‌

Parameter	Nickel 201	Nickel 200	Advantage
Maximum Temp	600°C	315°C	90% Higher
Carbide Precipitation	None	Likely	Better Weldability
Alkali Resistance	50% NaOH @ 200°C	30% NaOH @ 80°C	Superior
Thermal Fatigue Life	15,000 cycles	8,000 cycles	87% Longer
Cost Premium	10-15%	Baseline	Value Justified

KCMSS Manufacturing Capabilities

Production Process

1. ‌Material Preparation‌

   • Vacuum induction melting (VIM)
   • Electroslag remelting (ESR)
   • Hot forging with 5:1 reduction ratio

2. ‌Pipe Manufacturing‌

   • Hot extrusion for seamless products
   • Cold drawing for precision tubes
   • Solution annealing at 880°C±10°C

3. ‌Quality Assurance‌

   • 100% ultrasonic testing
   • Hydrostatic testing at 1.5x design pressure
   • Positive material identification (PMI)
   •

Product Range

• ‌Alloy 201 pipe‌: 1/8″ to 36″ diameters : seamless and welded(erw,efw)
• ‌Din 2.4068 tube‌: 3mm to 500mm OD: seamless and welded(erw, efw)
• ‌UNS N02201 flange‌: Class 150 to 2500: socket weld, blind, slip-on, weld neck, thread, lap joint.
• ‌Nickel 201 pipe fittings‌: All ASME B16.9 types elbow, tee, reducer, cap, cross, Stub end

Conclusion

Through these technical case studies and comprehensive data analysis, Alloy 201 (UNS N02201/DIN 2.4068) demonstrates clear advantages over conventional materials in extreme service conditions. KCM Special Steel’s expertise in nickel alloy manufacturing ensures reliable performance through precise chemistry control (maintaining density within 8.90-8.92 g/cm³ range) and advanced processing techniques. The material’s combination of purity, thermal stability, and corrosion resistance makes it the engineering material of choice for critical applications across multiple industries.

FAQ: Alloy 201/Nickel 201 (UNS N02201/DIN 2.4068) Piping Systems by KCM Special Steel

Section 1: Fundamental Properties

Q1: What is the chemical composition of Alloy 201?

‌A:‌ Alloy 201 features an ultra-low carbon nickel composition:

‌Table 1: Chemical Composition Comparison (%)‌

Element	Alloy 201	Nickel 200	ASTM B161 Spec
Nickel	99.56 (typ)	99.38 (typ)	≥99.0
Carbon	0.008-0.015	0.08-0.12	≤0.02
Iron	0.18-0.25	0.22-0.35	≤0.40
Manganese	0.22-0.28	0.28-0.34	≤0.35
Sulfur	0.001-0.003	0.002-0.005	≤0.01

Note: KCMSS maintains tighter composition control than ASTM requirements

Q2: What physical properties make Alloy 201 suitable for piping systems?

‌A:‌ The material exhibits exceptional physical characteristics:

‌Table 2: Physical Properties‌

Property	Value	Unit	Importance for Piping
Density	8.91±0.09	g/cm³	Consistent wall thickness
CTE (20-300°C)	13.3	μm/m·°C	Thermal stability
Curie Temperature	<77	K	Non-magnetic performance
Thermal Conductivity	70	W/m·K	Heat transfer efficiency

Section 2: Mechanical Performance

Q3: What are the typical mechanical properties of KCMSS Alloy 201 pipes?

‌A:‌ Mechanical properties vary by product form:

‌Table 3: Mechanical Properties by Product Form‌

Product	Yield (MPa)	Tensile (MPa)	Elongation (%)	Hardness (HRB)
‌Alloy 201 pipe‌	145-160	440-460	50-55	50-55
‌Din 2.4068 tube‌	150-170	450-470	45-50	55-60
‌UNS N02201 flange‌	140-155	430-450	40-45	45-50

Q4: How does cold working affect Alloy 201’s mechanical properties?

‌A:‌ Cold working significantly enhances strength:

‌Table 4: Cold Work Effect Comparison‌

Reduction (%)	Yield Strength (MPa)	Tensile (MPa)	Hardness (HRB)
0 (Annealed)	110	415	45
15	240	550	65
30	380	690	82
50	550	790	88

Section 3: Product Applications

Q5: Where should I specify Alloy 201 instead of Nickel 200?

‌A:‌ Consider these application guidelines:

‌Table 5: Application Selection Guide‌

Parameter	Alloy 201 Preferred	Nickel 200 Acceptable
Temperature	>315°C	<315°C
Environment	Caustic alkalis	Mild acids
Service Life	>10 years	5-10 years
Welding Required	Critical joints	Non-critical

Q6: What are the most demanding applications for KCMSS Alloy 201 piping components?

‌A:‌ Extreme service applications include:

• ‌Alloy 201 flange‌: Nuclear fuel processing
• ‌Din 2.4068 pipe‌: Molten salt heat transfer
• ‌Nickel 201 tube‌: Ultra-high vacuum systems
• ‌UNS N02201 pipe fittings‌: HF alkylation units

Section 4: Manufacturing & Quality

Q7: How does KCMSS ensure quality in Alloy 201 pipe production?

‌A:‌ Our manufacturing process includes:

1. VIM-VAR melting for purity
2. Hot extrusion at 1150-1200°C
3. Solution annealing at 870±10°C
4. Multiple nondestructive tests:
   • 100% ultrasonic inspection
   • Eddy current for tubes
   • Hydrostatic testing at 1.5x rating

Q8: What Quality accompany KCMSS Alloy 201 products?

‌A:‌ All products include:

• Mill Test Certificates per EN 10204 3.1
• NACE MR0175 compliance
• PED 2014/68/EU certification
• ASME B16.5/B16.9 for flanges/fittings

Section 5: Technical Comparison

Q9: How does Alloy 201 outperform Nickel 200 in high-temperature service?

‌A:‌ Key advantages include:

‌Table 6: High-Temperature Performance‌

Condition	Alloy 201	Nickel 200	Difference
400°C Yield	95 MPa	65 MPa	+46%
Creep Rate	0.001%/h	0.01%/h	10x better
Carbide Formation	None	Likely	No sensitization
Oxidation Rate	0.05 mm/y	0.12 mm/y	58% lower

Q10: What are the dimensional standards for KCMSS Alloy 201 piping products?

‌A:‌ We manufacture to multiple international standards:

‌Table 7: Product Specifications‌

Component	Standard	Size Range	Wall Thickness
‌Alloy 201 pipe‌	ASTM B161	1/8″-24″	SCH 5S-XXS
‌Din 2.4068 tube‌	DIN 17750	3-500mm OD	0.5-20mm
‌UNS N02201 flange‌	ASME B16.5	1/2″-24″	Class 150-2500
‌Nickel 201 fittings‌	ASME B16.9	All types	Matching pipe

Section 6: Installation & Maintenance

Q11: What welding techniques are recommended for Alloy 201 piping?

‌A:‌ Best practices include:

• GTAW with ERNi-1 filler
• Maximum interpass temp: 150°C
• Back purging with argon
• No post-weld heat treatment required

Q12: How does Alloy 201’s maintenance compare to 316L stainless steels?

‌A:‌ Maintenance advantages:

‌Table 8: Maintenance Comparison‌

Activity	316L Stainless	Alloy 201	Benefit
Inspection	Quarterly	Biennial	87% less
Descaling	Acid pickling	Not required	100% reduction
Replacement	5-7 years	15-20 years	3x lifespan
Leak Repairs	3/yr (avg)	0.2/yr	93% fewer

Comprehensive Technical Summary: Alloy 201/Nickel 201 (UNS N02201/DIN 2.4068) Piping Systems by KCM Special Steel

Executive Overview

Nickel-based alloys continue to dominate critical industrial applications where corrosion resistance and thermal stability are paramount. Among these materials, Alloy 201 (UNS N02201/DIN 2.4068) has emerged as the premium choice for extreme service conditions. This technical summary consolidates essential information about KCM Special Steel’s (KCMSS) Alloy 201 piping components, providing engineers and specifiers with actionable data for material selection and application.

Material Fundamentals

Alloy 201/Nickel 201 Pipe and Fittings UNS N02201/DIN 2.4068 Chemical Composition Analysis

The exceptional performance of Alloy 201 stems from its precisely controlled chemistry:

‌Table 1: Detailed Chemical Composition (wt%)‌

Element	Alloy 201 Range	Nickel 200 Range	Impact on Performance
Ni+Co	99.2-99.9	99.0-99.8	Corrosion Resistance
C	0.005-0.015	0.05-0.15	Weldability
Fe	0.10-0.30	0.20-0.40	Magnetic Properties
Mn	0.15-0.30	0.25-0.35	Work Hardening
Si	0.05-0.20	0.10-0.25	High-Temp Strength

KCMSS maintains composition at mid-range values for optimal consistency

Physical Properties Profile

‌Table 2: Comprehensive Physical Properties‌

Property	Alloy 201 Value	Nickel 200 Value	Measurement Standard
Density	8.91±0.09 g/cm³	8.89 g/cm³	ASTM B193
CTE (20-100°C)	13.1 μm/m·°C	13.3 μm/m·°C	ASTM E228
Thermal Conductivity	70 W/m·K	69 W/m·K	ASTM E1225
Electrical Resistivity	0.096 μΩ·m	0.095 μΩ·m	ASTM B193
Curie Temperature	<77 K	<77 K	ASTM A342

Alloy 201/Nickel 201 Pipe and Fittings/Flanges UNS N02201/DIN 2.4068 Tubing Mechanical Performance Characteristics

Standard Mechanical Properties

‌Table 3: Room Temperature Mechanical Properties‌

Product Form	Yield (MPa)	Tensile (MPa)	Elongation (%)	Hardness (HRB)
‌Alloy 201 pipe‌	140-160	430-460	45-55	50-55
‌Din 2.4068 tube‌	145-165	440-470	40-50	55-60
‌UNS N02201 flange‌	135-155	420-450	35-45	45-50

Elevated Temperature Performance

‌Table 4: High-Temperature Strength Retention‌

Temperature (°C)	Yield Strength (MPa)	Tensile (MPa)	% of RT Strength
200	120	380	85%
315	95	350	78%
425	75	320	70%
540	60	290	63%

Alloy 201/Nickel 201 Pipe and Fittings/Flanges UNS N02201/DIN 2.4068 Tube/Flanges Product Application Matrix

Industry-Specific Solutions

‌Table 5: Application Guide for KCMSS Products‌

Industry	Recommended Component	Service Condition	Alternative Material
Chemical Processing	‌Alloy 201 pipe fittings‌	Hot caustic solutions	Hastelloy
Power Generation	‌Din 2.4068 tube‌	Molten salt heat transfer	Inconel 600
Semiconductor	‌Nickel 201 flange‌	Ultra-high vacuum	316L VIM-VAR
Offshore	‌UNS N02201 pipe‌	Sour gas service	Duplex 2205

Technical Comparison: Alloy 201 vs. Nickel 200 Performance Differentiation

‌Table 6: Critical Performance Differences‌

Parameter	Alloy 201	Nickel 200	Advantage
Max Continuous Temp	600°C	315°C	90% Higher
Carbide Precipitation	None	Likely	Better Weldability
Alkali Resistance	50% NaOH @ 200°C	30% NaOH @ 80°C	Superior
Thermal Fatigue Life	15,000 cycles	8,000 cycles	87% Longer
Cost Premium	10-15%	Baseline	Value Justified

KCMSS Manufacturing Excellence Production Methodology

1. ‌Material Preparation Stage‌

   • Vacuum induction melting (VIM)
   • Electroslag remelting (ESR)
   • Hot working with 4:1 reduction ratio

2. ‌Component Fabrication‌

   • Seamless pipe extrusion
   • Cold drawing for precision tubes
   • Solution annealing at 870±10°C

3. ‌Quality Assurance Protocols‌

   • 100% ultrasonic inspection
   • Hydrostatic testing per ASME standards
   • Positive material identification (PMI)

Alloy 201/Nickel 201 Pipe and Fittings/Flanges UNS N02201/DIN 2.4068 Product High Quality Compliance

• ASME Section II approval
• NACE MR0175/MR0103 compliance
• PED 2014/68/EU certification
• ISO 9001:2015 quality system

Installation and Maintenance Guidance Welding Best Practices

• GTAW with ERNi-1 filler metal
• Maximum interpass temperature: 150°C
• Back purging with argon (O₂ <50 ppm)
• No post-weld heat treatment required

Maintenance Comparison

‌Table 7: Maintenance Requirements‌

Parameter	316L SS	Alloy 201	Improvement
Inspection Frequency	Quarterly	Biennial	87% Reduction
Descaling Needed	Yes	No	100% Eliminated
Typical Service Life	5-7 years	15-20 years	3x Longer
Leak Incidents	3/year	0.2/year	93% Fewer

Conclusion – Alloy 201/Nickel 201 Pipe and Fittings UNS N02201 Pipe Fittings/DIN 2.4068

This technical summary demonstrates that KCM Special Steel‘s Alloy 201 (UNS N02201/DIN 2.4068) piping systems deliver unmatched performance in demanding industrial applications. With precisely controlled density (8.90-8.92 g/cm³), exceptional purity, and superior high-temperature capabilities, these components provide reliable solutions where conventional materials would fail. The comprehensive data presented herein confirms Alloy 201’s position as the material of choice for critical service conditions across multiple industries.
