Diesel Oxidation Catalyst Substrate
DOC substrateDOC.
Drawings and CAD files on request — email them to [email protected] and we will quote against your print.
Product Overview

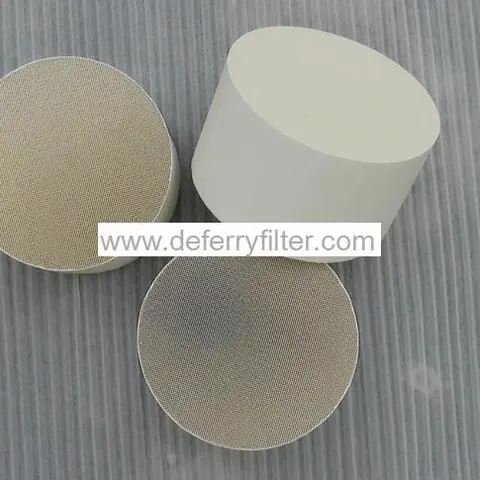

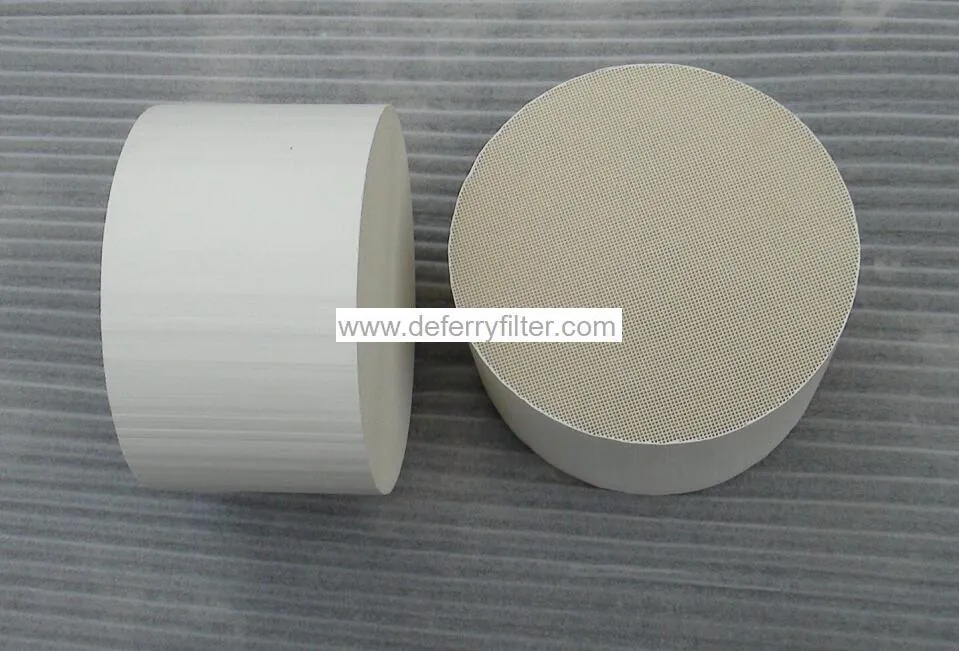

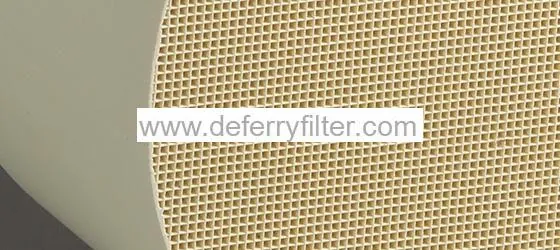

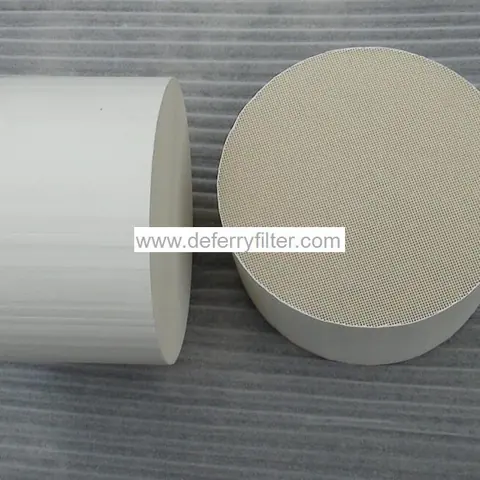

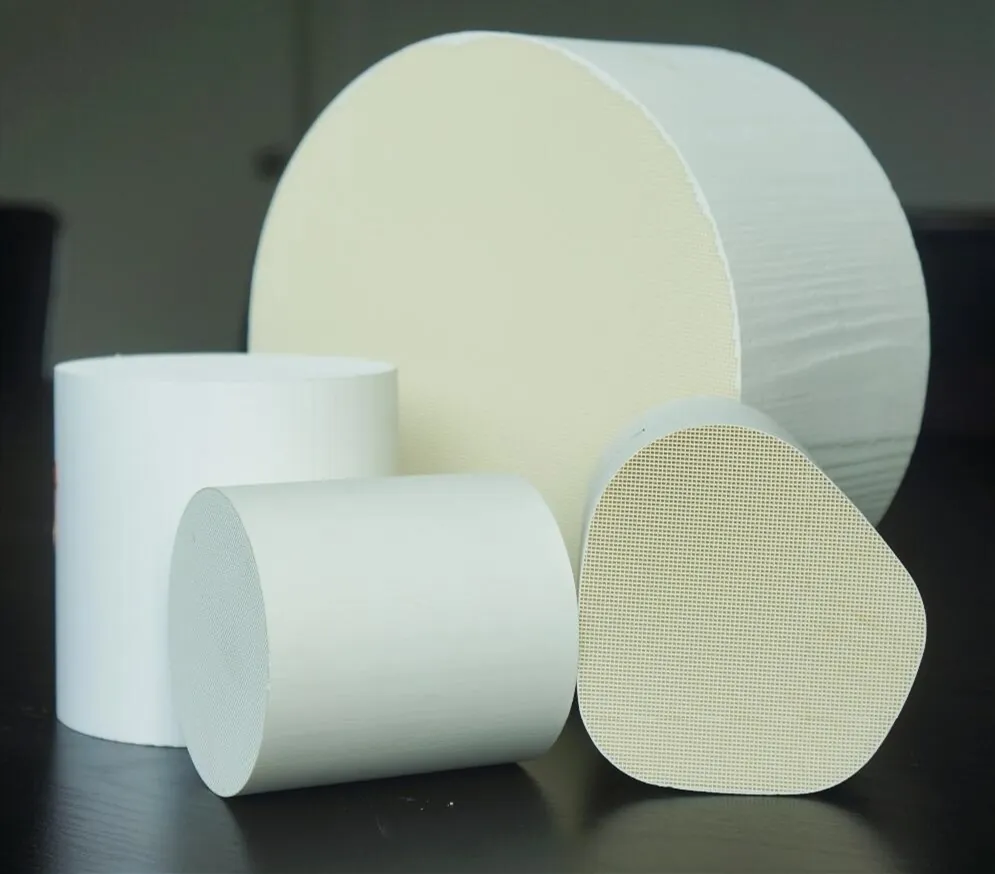

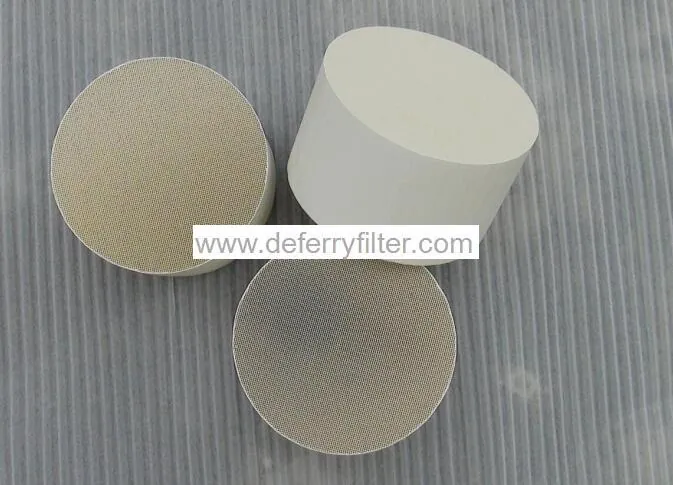

DEFERRY®'s Diesel Oxidation Catalyst(DOC) Substrate are made of cordierite material, our DOC substrate specifically developed for various diesel engine emission control covered from on-road vehicles application to off-road construction or mining application. Our high efficiency and performance stability DOC products have been recognized in light bus, city bus, medium truck and heavy truck applications.
Current product offer covers diameter from 144 mm to 381 mm as a single DOC which would be perfect solution for diesel engine displacement from 0.5 to 25 liters.
Specifications
| Hole density | Dimension | Volume （ Liter) |
|---|---|---|
| 100CPSI-400CPSI | φ144×152.4 | 2.482 |
| 100CPSI-400CPSI | φ150×100 | 1.767 |
| 100CPSI-400CPSI | φ165×100 | 2.138 |
| 100CPSI-400CPSI | φ170×100 | 2.270 |
| 100CPSI-400CPSI | φ190×100 | 2.835 |
| 100CPSI-400CPSI | φ190×152.4 | 4.321 |
| 100CPSI-400CPSI | φ194.5×100 | 2.971 |
| 100CPSI-400CPSI | φ190×200 | 5.670 |
| 100CPSI-400CPSI | φ228×100 | 4.083 |
| 100CPSI-400CPSI | φ240×76.2 | 3.447 |
| 100CPSI-400CPSI | φ240×100 | 4.524 |
| 100CPSI-400CPSI | φ267×127 | 7.110 |
| 100CPSI-400CPSI | φ286×127 | 8.158 |
| 100CPSI-400CPSI | φ305×127 | 9.278 |
| 100CPSI-400CPSI | Φ381×127 | 14.479 |
Questions About This Product
Are the dimensions on this page the full range?
How do I get a price?
Is Deferry certified?
Quote Diesel Oxidation Catalyst Substrate
Send the quantity and either the dimensions or the OE number. We reply with specification, lead time and price.
