Product Overview

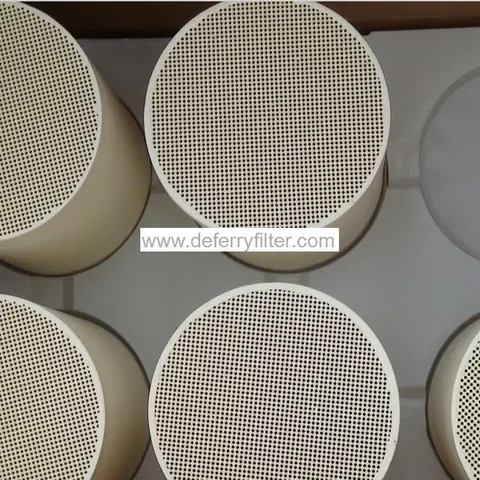

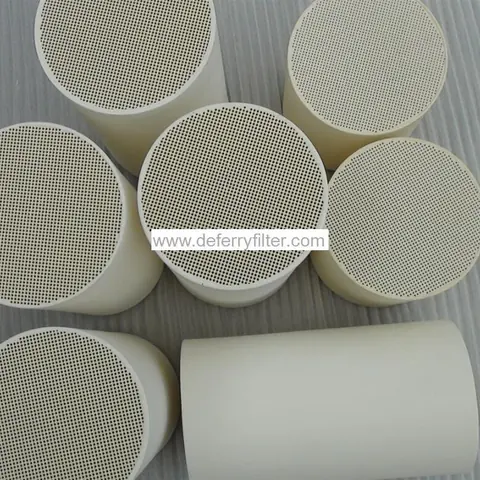

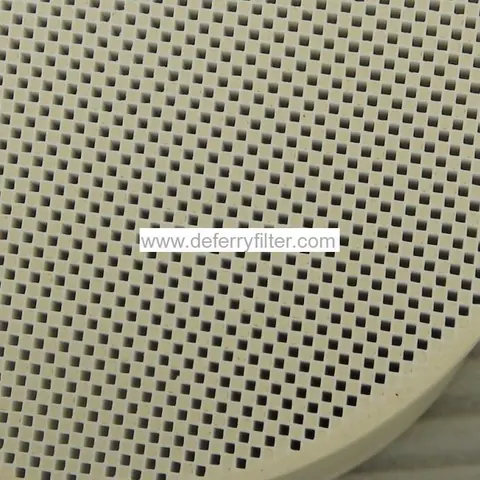

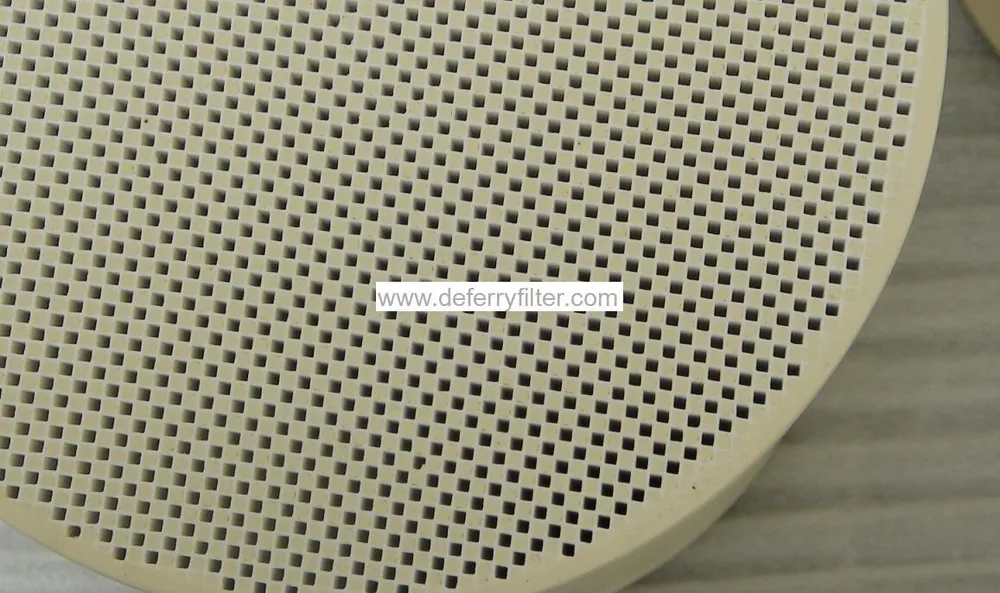

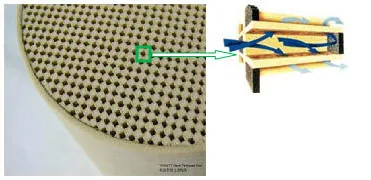

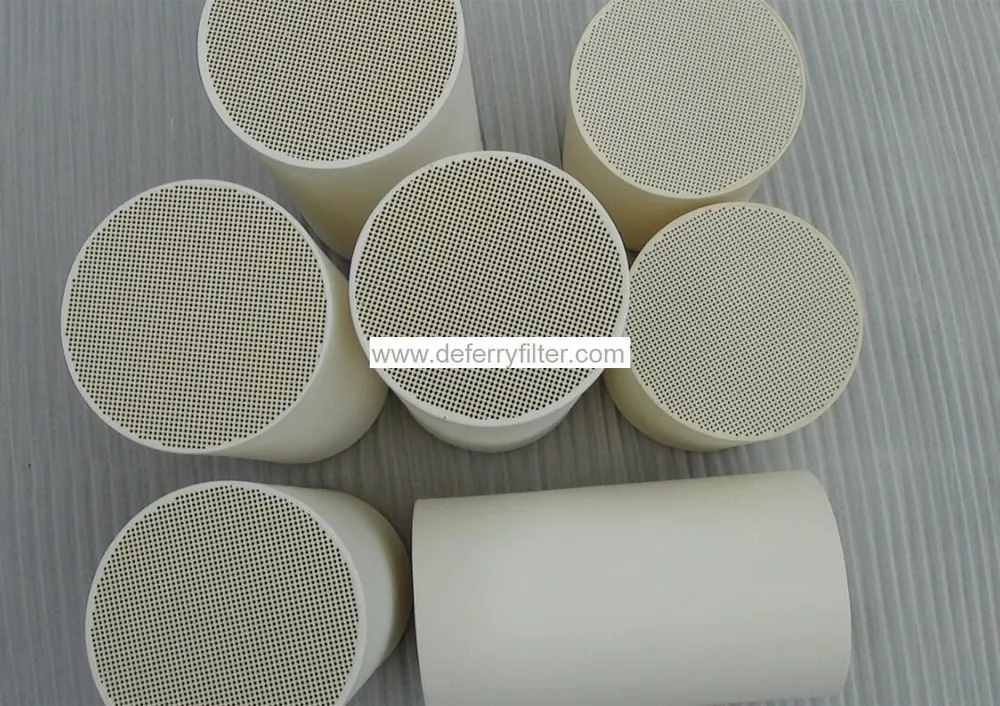

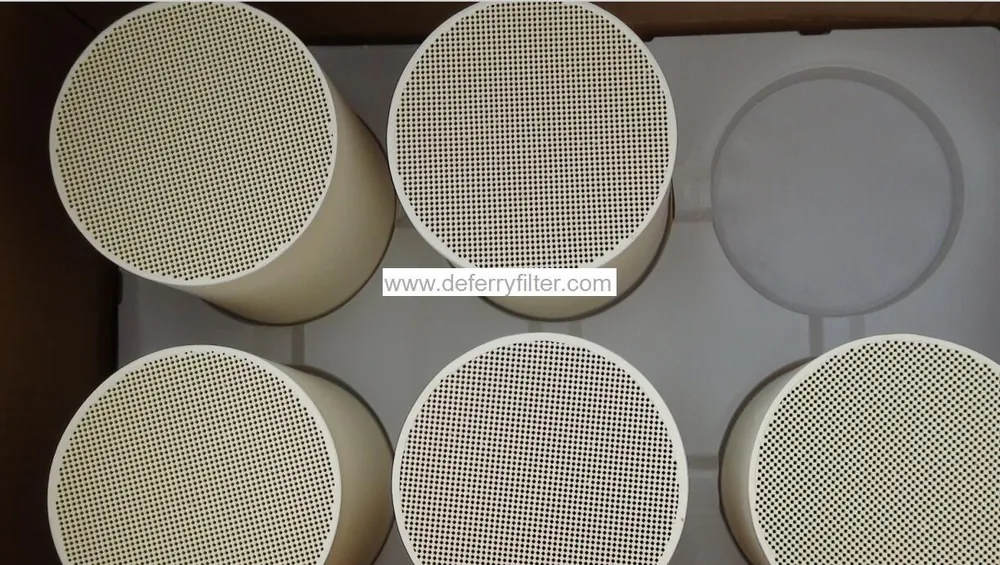

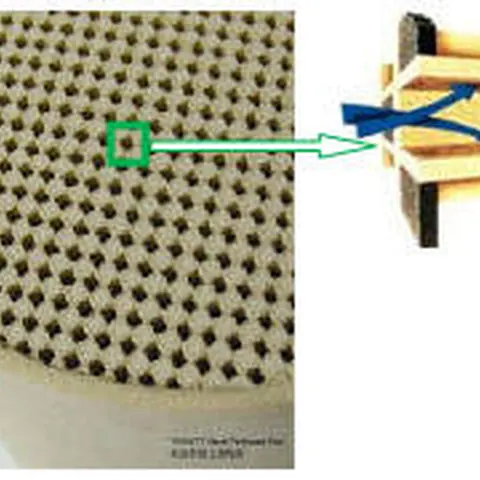

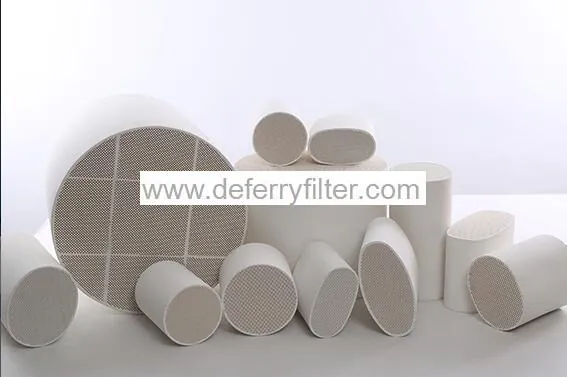

Deferry®'s Cordierite Diesel Particulate Filters (DPFs) are designed to reduce emissions of particulate matter (PM) from diesel engines, It's an economic porous wall flow type ceramic filter, and it's available for diesel particulate mater removal from the diesel engine's exhaust.
Our cordierite DPFs is made from modified cordierite ( 2MgO-Al2O3-5SiO2 )material. Current our full series has both 100 and 200 CPSI option and size is from 1.0 liters to 44 liters.
Our Product Highlights
- High filtration efficiency:≥90%
- Low coefficient of thermal expansion (CTE)
- Low thermal shock resistance
- Low back pressure
- Outstanding durability
- Low pressure drop
Main Applications
- On-Road Passenger/Medium/Heavy-Duty Vehicles
- Stationary Engines
- Power Generation
- Dust Control
- Mining Equipment
- Construction
- Marine
- Material Handling
- Diesel Locomotive
Specifications
| Shape | Dimension (mm) | Volume (Liter) |
|---|---|---|
| Round | φ93×153 | 1.0394 |
| Round | φ127×152.4 | 1.9308 |
| Round | φ144×150 | 2.4432 |
| Round | φ144×152.4 | 2.4823 |
| Round | φ150×150 | 2.6511 |
| Round | φ144×254 | 4.1372 |
| Round | φ190×200 | 5.6713 |
| Round | φ190×203 | 5.7556 |
| Round | φ228×305 | 12.4542 |
| Round | φ240×100 | 4.5245 |
| Round | φ240×240 | 10.8588 |
| Round | φ240×305 | 13.7997 |
| Round | φ260×305 | 16.1954 |
| Round | φ267×305 | 17.0792 |
| Round | Φ286×267 | 17.1550 |
| Round | φ286×305 | 19.5965 |
| Round | φ286×355 | 22.8098 |
| Round | φ286×381 | 24.4763 |
| Round | Φ305×305 | 22.287 |
| Round | Φ305×381 | 27.840 |
| Round | Φ381×381 | 43.438 |
| Oval | 188×103×145 | 2.2055 |
| Oval | 207×101×200 | 3.282 |
| Racetrack | 374×270×317 | 27.0537 |
Questions About This Product
Are the dimensions on this page the full range?
The table lists the sizes currently tooled. Other sizes are quoted on request — email [email protected] with the dimension you need.
How do I get a price?
Email [email protected] with the product name, the quantity and either the dimensions or the OE number. Include the emission standard you are working to.
Is Deferry certified?
Deferry obtained ISO 9001 and ISO 14001 certificates in 2015 and runs an eight-step quality control procedure from incoming inspection through to complaint handling.
