SC/APC/UPC Fast Connector TypeF

Fast Connector

SC/APC/UPC Fast Connector TypeF

Brand
Datolink
Manufactured in
Shenzhen, Guangdong, China
Warranty
12 months
OEM and ODM
Accepted
Request A Quote Talk To An Engineer Request A Sample Email Us

Drawings and specifications can be sent by WhatsApp or to [email protected]. Replies within 12 to 24 hours on working days.

Fast Connector

Product Specifications

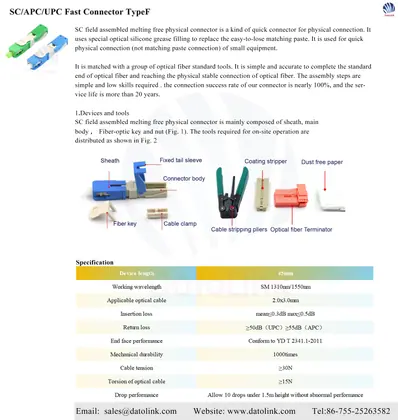

Product overviewSC field assembled melting free physical connector is a kind of quick connector for physical connection.

SC field assembled melting free physical connector is a kind of quick connector for physical connection. It uses special optical silicone grease filling to replace the easy-to-lose matching paste. It is used for quick physical connection (not matching paste connection) of small equipment.

It is matched with a group of optical fiber standard tools. It is simple and accurate to complete the standard end of optical fiber and reaching the physical stable connection of optical fiber. The assembly steps are simple and low skills required . the connection success rate of our connector is nearly 100%, and the service life is more than 20 years.



Device length 45mm
Working wavelength SM 1310nm/1550nm
Applicable optical cable 2.0×3.0mm
Insertion loss mean≤0.3dB max≤0.5dB
Return loss ≥50dB（UPC）≥55dB（APC）
End face performance Conform to YD T 2341.1-2011
Mechanical durability 1000times
Cable tension ≥30N
Torsion of optical cable ≥15N
Drop performance Allow 10 drops under 1.5m height without abnormal performance

Certification

CE, RoHS and Anatel obtained for most products, under an ISO 9001 quality management system.

Inspection

IQC on incoming materials, IPQC in process and OQC before shipment, with a pre-production sample before mass production.

Export

Exported to over 80 countries. Delivery on FOB, CFR, CIF, EXW or FCA terms.

Related Products

View all Fast Connector
L925B Mechanical spliceL925B Mechanical spliceFast ConnectorL925BP Mechanical spliceL925BP Mechanical spliceFast ConnectorSC/APC Fast Connector TypeH 0.9SC/APC Fast Connector TypeH 0.9Fast ConnectorSC/UPC Fast Connector Type NSC/UPC Fast Connector Type NFast ConnectorSC/APC Fast Connector TypeGSC/APC Fast Connector TypeGFast ConnectorSC/UPC Fast Connector TypeHSC/UPC Fast Connector TypeHFast ConnectorSC/APC Fast Connector TypeHSC/APC Fast Connector TypeHFast ConnectorSC/UPC Fast Connector Type lSC/UPC Fast Connector Type lFast Connector

Ordering SC/APC/UPC Fast Connector TypeF

Is Datolink a manufacturer or a trading company?
Datolink is a manufacturer based in Shenzhen, China. The company was officially founded in January 2013 and holds its own import and export licence. Production covers fiber optic patch cords, pigtails, adaptors, connectors, PLC splitters and fast connectors, alongside fiber test equipment and structured cabling components.
Can I order a sample of SC/APC/UPC Fast Connector TypeF before placing a bulk order?
Yes. Samples below USD 10 are available with the freight paid by the customer, and sample orders below USD 50 are accepted. That sample value is credited as a discount against the formal order.
What is the lead time and how do I place an order?
Send a list of the products you need by email or WhatsApp, including quantity and description. Datolink replies with a proforma invoice and bank details. Delivery time is generally 5 working days after payment is received.
Which payment and delivery terms do you accept?
Delivery terms: FOB, CFR, CIF, EXW and FCA. Payment methods: T/T, Alibaba, PayPal, Western Union and cash. Payment currencies: USD, EUR and CNY.
What warranty applies to SC/APC/UPC Fast Connector TypeF?
Datolink offers 12 months on fiber optic passive products. All exported products comply with international quality and safety standards. If a quality complaint arises, contact the sales team with the details; defective samples may be requested for further evaluation and testing.
Do you accept OEM and ODM orders and small quantities?
Yes. OEM and ODM orders are welcome, and small orders are accepted. Pricing is quantity based, so a larger quantity gives a better unit price.
How will the goods be shipped?
For orders under 50 kg, express couriers such as DHL, TNT, UPS and FedEx are normally used. For bulk orders, sea freight is more economical but takes longer. If you have your own forwarder in China, Datolink can deliver to your agent.
