L925B Mechanical splice

Fast Connector

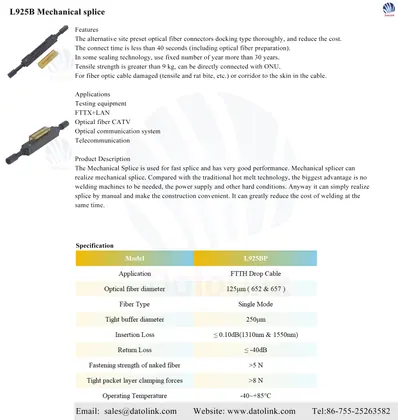

L925B Mechanical splice

The Mechanical Splice is used for fast splice and has very good performance. Mechanical splicer can realize mechanical splice, Compared with the traditional hot melt technology, the biggest advantage is no welding machines to be needed, the power supply and other hard conditions. Anyway it can simply realize splice by manual and make the construction convenient. It can greatly reduce the cost of welding at the same time.

Brand
Datolink
Manufactured in
Shenzhen, Guangdong, China
Warranty
12 months
OEM and ODM
Accepted
Request A Quote Talk To An Engineer Request A Sample Email Us

Drawings and specifications can be sent by WhatsApp or to [email protected]. Replies within 12 to 24 hours on working days.

Fast Connector

Features：

The alternative site preset optical fiber connectors docking type thoroughly, and reduce the cost.
The connect time is less than 40 seconds (including optical fiber preparation).
In some sealing technology, use fixed number of year more than 30 years.
Tensile strength is greater than 9 kg, can be directly connected with ONU.
For fiber optic cable damaged (tensile and rat bite, etc.) or corridor to the skin in the cable.

Applications：

Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication



Model

 L925BP
Application FTTH Drop Cable
Optical fiber diameter 125μm ( 652 & 657 )
Fiber Type Single Mode
Tight buffer diameter 250μm
Insertion Loss ≤ 0.10dB(1310nm & 1550nm)
Return Loss ≤ -40dB
Fastening strength of naked fiber >5 N
Tight packet layer clamping forces >8 N
Operating Temperature -40~+85°C

Certification

CE, RoHS and Anatel obtained for most products, under an ISO 9001 quality management system.

Inspection

IQC on incoming materials, IPQC in process and OQC before shipment, with a pre-production sample before mass production.

Export

Exported to over 80 countries. Delivery on FOB, CFR, CIF, EXW or FCA terms.

Related Products

View all Fast Connector
L925BP Mechanical spliceL925BP Mechanical spliceFast ConnectorSC/APC Fast Connector TypeH 0.9SC/APC Fast Connector TypeH 0.9Fast ConnectorSC/UPC Fast Connector Type NSC/UPC Fast Connector Type NFast ConnectorSC/APC Fast Connector TypeGSC/APC Fast Connector TypeGFast ConnectorSC/UPC Fast Connector TypeHSC/UPC Fast Connector TypeHFast ConnectorSC/APC Fast Connector TypeHSC/APC Fast Connector TypeHFast ConnectorSC/UPC Fast Connector Type lSC/UPC Fast Connector Type lFast ConnectorSC/APC Fast Connector Type lSC/APC Fast Connector Type lFast Connector

Ordering L925B Mechanical splice

Is Datolink a manufacturer or a trading company?
Datolink is a manufacturer based in Shenzhen, China. The company was officially founded in January 2013 and holds its own import and export licence. Production covers fiber optic patch cords, pigtails, adaptors, connectors, PLC splitters and fast connectors, alongside fiber test equipment and structured cabling components.
Can I order a sample of L925B Mechanical splice before placing a bulk order?
Yes. Samples below USD 10 are available with the freight paid by the customer, and sample orders below USD 50 are accepted. That sample value is credited as a discount against the formal order.
What is the lead time and how do I place an order?
Send a list of the products you need by email or WhatsApp, including quantity and description. Datolink replies with a proforma invoice and bank details. Delivery time is generally 5 working days after payment is received.
Which payment and delivery terms do you accept?
Delivery terms: FOB, CFR, CIF, EXW and FCA. Payment methods: T/T, Alibaba, PayPal, Western Union and cash. Payment currencies: USD, EUR and CNY.
What warranty applies to L925B Mechanical splice?
Datolink offers 12 months on fiber optic passive products. All exported products comply with international quality and safety standards. If a quality complaint arises, contact the sales team with the details; defective samples may be requested for further evaluation and testing.
Do you accept OEM and ODM orders and small quantities?
Yes. OEM and ODM orders are welcome, and small orders are accepted. Pricing is quantity based, so a larger quantity gives a better unit price.
How will the goods be shipped?
For orders under 50 kg, express couriers such as DHL, TNT, UPS and FedEx are normally used. For bulk orders, sea freight is more economical but takes longer. If you have your own forwarder in China, Datolink can deliver to your agent.

Need A Quotation For L925B Mechanical splice?

Send the model, quantity and connector type. The Datolink sales team replies within 12 to 24 hours on working days.
