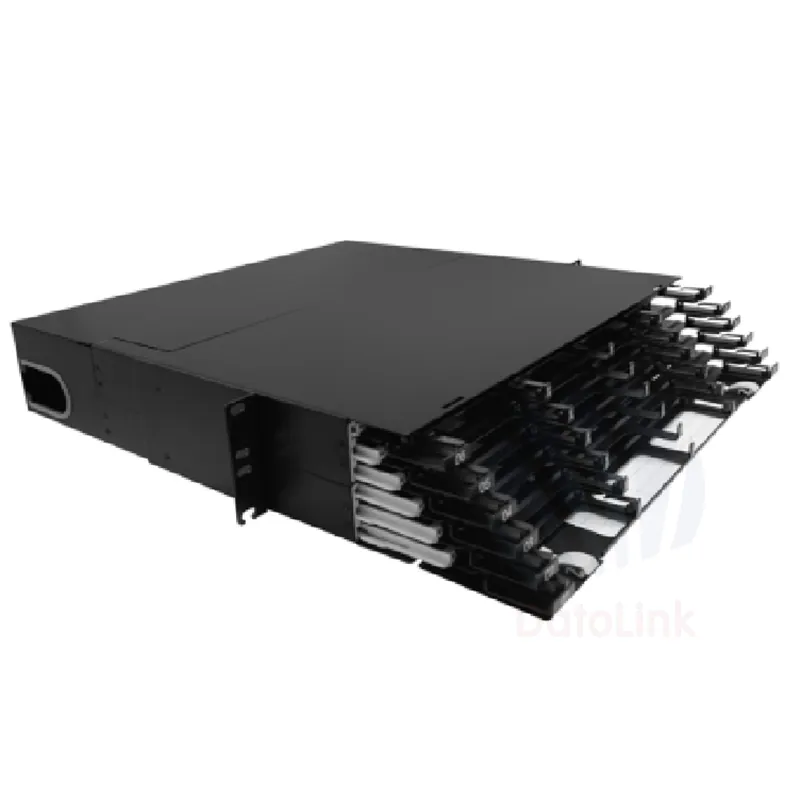

MPO 2U

MPO Rack

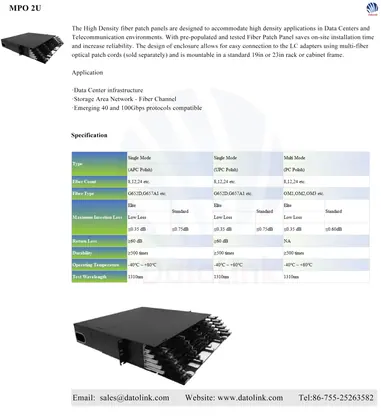

MPO 2U

The High Density fiber patch panels are designed to accommodate high density applications in Data Centers and Telecommunication environments. With pre-populated and tested Fiber Patch Panel saves on-site installation time and increase reliability. The design of enclosure allows for easy connection to the LC adapters using multi-fiber optical patch cords (sold separately) and is mountable in a standard 19in or 23in rack or cabinet frame.

Brand
Datolink
Manufactured in
Shenzhen, Guangdong, China
Warranty
12 months
OEM and ODM
Accepted
Request A Quote Talk To An Engineer Request A Sample Email Us

Drawings and specifications can be sent by WhatsApp or to [email protected]. Replies within 12 to 24 hours on working days.

MPO Rack

The High Density fiber patch panels are designed to accommodate high density applications in Data Centers and Telecommunication environments. With pre-populated and tested Fiber Patch Panel saves on-site installation time and increase reliability. The design of enclosure allows for easy connection to the LC adapters using multi-fiber optical patch cords (sold separately) and is mountable in a standard 19in or 23in rack or cabinet frame.

Application

  • Data Center infrastructure
  • Storage Area Network – Fiber Channel
  • Emerging 40 and 100Gbps protocols compatible



Specification
Type Single Mode Single Mode Multi Mode
(APC Polish) (UPC Polish) (PC Polish)
Fiber Count 8,12,24 etc. 8,12,24 etc. 8,12,24 etc.
Fiber Type G652D,G657A1 etc. G652D,G657A1 etc. OM1,OM2,OM3 etc.
Maximum Insertion Loss Elite Standard Elite Standard Elite Standard
Low Loss Low Loss Low Loss
≤0.35 dB ≤0.75dB ≤0.35 dB ≤0.75dB ≤0.35 dB ≤0.60dB
Return Loss ≥60 dB ≥60 dB NA
Durability ≥500 times ≥500 times ≥500 times
Operating Temperature -40℃ ~ +80℃ -40℃ ~ +80℃ -40℃ ~ +80℃
Test Wavelength 1310nm 1310nm 1310nm

Certification

CE, RoHS and Anatel obtained for most products, under an ISO 9001 quality management system.

Inspection

IQC on incoming materials, IPQC in process and OQC before shipment, with a pre-production sample before mass production.

Export

Exported to over 80 countries. Delivery on FOB, CFR, CIF, EXW or FCA terms.

Related Products

View all MPO Rack
MPO-LCMPO-LCMPO RackMPO 1U 144MPO 1U 144MPO RackMPO CassettesMPO CassettesMPO RackLGX Type PLC Splitter 1×16LGX Type PLC Splitter 1×16ABS Box Type Plc SplitterLGX Type PLC Splitter 1×2LGX Type PLC Splitter 1×2ABS Box Type Plc SplitterLGX Type PLC Splitter 1*8LGX Type PLC Splitter 1*8ABS Box Type Plc SplitterLGX Type PLC Splitter 1*4LGX Type PLC Splitter 1*4ABS Box Type Plc SplitterL925B Mechanical spliceL925B Mechanical spliceFast Connector

Ordering MPO 2U

Is Datolink a manufacturer or a trading company?
Datolink is a manufacturer based in Shenzhen, China. The company was officially founded in January 2013 and holds its own import and export licence. Production covers fiber optic patch cords, pigtails, adaptors, connectors, PLC splitters and fast connectors, alongside fiber test equipment and structured cabling components.
Can I order a sample of MPO 2U before placing a bulk order?
Yes. Samples below USD 10 are available with the freight paid by the customer, and sample orders below USD 50 are accepted. That sample value is credited as a discount against the formal order.
What is the lead time and how do I place an order?
Send a list of the products you need by email or WhatsApp, including quantity and description. Datolink replies with a proforma invoice and bank details. Delivery time is generally 5 working days after payment is received.
Which payment and delivery terms do you accept?
Delivery terms: FOB, CFR, CIF, EXW and FCA. Payment methods: T/T, Alibaba, PayPal, Western Union and cash. Payment currencies: USD, EUR and CNY.
What warranty applies to MPO 2U?
Datolink offers 12 months on fiber optic passive products. All exported products comply with international quality and safety standards. If a quality complaint arises, contact the sales team with the details; defective samples may be requested for further evaluation and testing.
Do you accept OEM and ODM orders and small quantities?
Yes. OEM and ODM orders are welcome, and small orders are accepted. Pricing is quantity based, so a larger quantity gives a better unit price.
How will the goods be shipped?
For orders under 50 kg, express couriers such as DHL, TNT, UPS and FedEx are normally used. For bulk orders, sea freight is more economical but takes longer. If you have your own forwarder in China, Datolink can deliver to your agent.

Need A Quotation For MPO 2U?

Send the model, quantity and connector type. The Datolink sales team replies within 12 to 24 hours on working days.
