LC UPC Fiber Optical Attenuator

Fiber Optic Adaptor&Attenuator

LC UPC Fiber Optical Attenuator

These fiber optic attenuators consist of a male LC/UPC connector on one end and a female LC/UPC connector on the other end. When a cable end in inserted into the female end, the remaining male end can be connected to the equipment where the cable would otherwise connect directly, but providing the desired signal strength reduction. This attenuator is available in many dB attenuation values between 1dB and 30dB.

Brand
Datolink
Manufactured in
Shenzhen, Guangdong, China
Warranty
12 months
OEM and ODM
Accepted
Request A Quote Talk To An Engineer Request A Sample Email Us

Drawings and specifications can be sent by WhatsApp or to [email protected]. Replies within 12 to 24 hours on working days.

Fiber Optic Adaptor&Attenuator

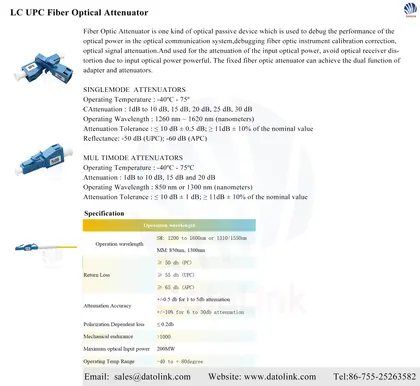

Fiber Optic Attenuator is one kind of optical passive device which is used to debug the performance of the optical power in the optical communication system,debugging fiber optic instrument calibration correction, optical signal attenuation.And used for the attenuation of the input optical power, avoid optical receiver distortion due to input optical power powerful. The fixed fiber optic attenuator can achieve the dual function of adapter and attenuators. SINGLEMODE ATTENUATORS Operating Temperature : -40ºC – 75º CAttenuation : 1dB to 10 dB, 15 dB, 20 dB, 25 dB, 30 dB Operating Wavelength : 1260 nm ~ 1620 nm (nanometers) Attenuation Tolerance : ≤ 10 dB ± 0.5 dB; ≥ 11dB ± 10% of the nominal value Reflectance: -50 dB (UPC); -60 dB (APC) MUL TIMODE ATTENUATORS Operating Temperature : -40ºC – 75ºC Attenuation : 1dB to 10 dB, 15 dB and 20 dB Operating Wavelength : 850 nm or 1300 nm (nanometers) Attenuation Tolerance : ≤ 10 dB ± 1 dB; ≥ 11dB ± 10% of the nominal value
Operation wavelength SM: 1200 to 1600nm or 1310/1550nm
MM: 850nm, 1300nm
Return Loss ≥ 50 db (PC)
≥ 55 db (UPC)
≥ 65 db (APC)
Attenuation Accuracy +/-0.5 db for 1 to 5db attenuation
+/-10% for 6 to 30db attenuation
Polarization Dependent loss ≤ 0.2db
Mechanical endurance >1000
Maximum optical Input power 200MW
Operating Temp Range -40 to + 80degree

Certification

CE, RoHS and Anatel obtained for most products, under an ISO 9001 quality management system.

Inspection

IQC on incoming materials, IPQC in process and OQC before shipment, with a pre-production sample before mass production.

Export

Exported to over 80 countries. Delivery on FOB, CFR, CIF, EXW or FCA terms.

Related Products

View all Fiber Optic Adaptor&Attenuator
ST Adiustable AttenuatorST Adiustable AttenuatorFiber Optic Adaptor&AttenuatorSC Adjustable AttenuatorSC Adjustable AttenuatorFiber Optic Adaptor&AttenuatorLC Adjustable AttenuatorLC Adjustable AttenuatorFiber Optic Adaptor&AttenuatorFC Adjustable AttenuatorFC Adjustable AttenuatorFiber Optic Adaptor&AttenuatorE2000/UPC Fiber Optical AttenuatorE2000/UPC Fiber Optical AttenuatorFiber Optic Adaptor&AttenuatorSC APC Fiber Optical AttenuatorSC APC Fiber Optical AttenuatorFiber Optic Adaptor&AttenuatorE2000 Fiber Optical AttenuatorE2000 Fiber Optical AttenuatorFiber Optic Adaptor&AttenuatorMU Fiber Optical AttenuatorMU Fiber Optical AttenuatorFiber Optic Adaptor&Attenuator

Ordering LC UPC Fiber Optical Attenuator

Is Datolink a manufacturer or a trading company?
Datolink is a manufacturer based in Shenzhen, China. The company was officially founded in January 2013 and holds its own import and export licence. Production covers fiber optic patch cords, pigtails, adaptors, connectors, PLC splitters and fast connectors, alongside fiber test equipment and structured cabling components.
Can I order a sample of LC UPC Fiber Optical Attenuator before placing a bulk order?
Yes. Samples below USD 10 are available with the freight paid by the customer, and sample orders below USD 50 are accepted. That sample value is credited as a discount against the formal order.
What is the lead time and how do I place an order?
Send a list of the products you need by email or WhatsApp, including quantity and description. Datolink replies with a proforma invoice and bank details. Delivery time is generally 5 working days after payment is received.
Which payment and delivery terms do you accept?
Delivery terms: FOB, CFR, CIF, EXW and FCA. Payment methods: T/T, Alibaba, PayPal, Western Union and cash. Payment currencies: USD, EUR and CNY.
What warranty applies to LC UPC Fiber Optical Attenuator?
Datolink offers 12 months on fiber optic passive products. All exported products comply with international quality and safety standards. If a quality complaint arises, contact the sales team with the details; defective samples may be requested for further evaluation and testing.
Do you accept OEM and ODM orders and small quantities?
Yes. OEM and ODM orders are welcome, and small orders are accepted. Pricing is quantity based, so a larger quantity gives a better unit price.
How will the goods be shipped?
For orders under 50 kg, express couriers such as DHL, TNT, UPS and FedEx are normally used. For bulk orders, sea freight is more economical but takes longer. If you have your own forwarder in China, Datolink can deliver to your agent.

Need A Quotation For LC UPC Fiber Optical Attenuator?

Send the model, quantity and connector type. The Datolink sales team replies within 12 to 24 hours on working days.
