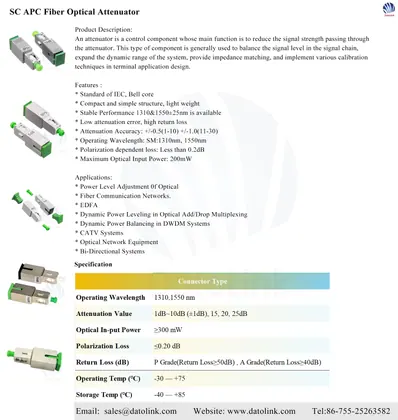

SC APC Fiber Optical Attenuator

Fiber Optic Adaptor&Attenuator

SC APC Fiber Optical Attenuator

An attenuator is a control component whose main function is to reduce the signal strength passing through the attenuator. This type of component is generally used to balance the signal level in the signal chain, expand the dynamic range of the system, provide impedance matching, and implement various calibration techniques in terminal application design

Brand
Datolink
Manufactured in
Shenzhen, Guangdong, China
Warranty
12 months
OEM and ODM
Accepted
Request A Quote Talk To An Engineer Request A Sample Email Us

Drawings and specifications can be sent by WhatsApp or to [email protected]. Replies within 12 to 24 hours on working days.

Fiber Optic Adaptor&Attenuator

Features

* Standard of IEC, Bell core
* Compact and simple structure, light weight
* Stable Performance 1310&1550±25nm is available
* Low attenuation error, high return loss
* Attenuation Accuracy: +/-0.5(1-10) +/-1.0(11-30)
* Operating Wavelength: SM:1310nm, 1550nm
* Polarization dependent loss: Less than 0.2dB
* Maximum Optical Input Power: 200mW

Applications

* Power Level Adjustment 0f Optical
* Fiber Communication Networks.
* EDFA
* Dynamic Power Leveling in Optical Add/Drop Multiplexing
* Dynamic Power Balancing in DWDM Systems
* CATV Systems
* Optical Network Equipment
* Bi-Directional Systems



Technical Parameter:

Connector Type SC/FC/ST/LC/MU/MTRJ
Operating Wavelength 1310,1550 nm
Attenuation Value 1dB~10dB (±1dB), 15, 20, 25dB
Optical In-put Power ≥300 mW
Polarization Loss ≤0.20 dB
Return Loss (dB) P Grade(Return Loss≥50dB) , A Grade(Return Loss≥40dB)
Operating Temp (℃) -30—+75
Storage Temp (℃) -40—+85

Certification

CE, RoHS and Anatel obtained for most products, under an ISO 9001 quality management system.

Inspection

IQC on incoming materials, IPQC in process and OQC before shipment, with a pre-production sample before mass production.

Export

Exported to over 80 countries. Delivery on FOB, CFR, CIF, EXW or FCA terms.
