Stainless Steel Bands and Buckles

Stainless Steel Straps

Stainless Steel Straps also named Stainless steel Banding,it can withstand more force than nylon cable tie.

  • Stainless Steel Straps also named Stainless steel Banding,it is corrosion resistant and can be used in different environments.
  • The stainless steel strapping is made of stainless steel 201,304,316.
  • The width,thickness,material grade,colour of dispenser can be customized according to customer’s requirement.
Request A Quote Email Us Request A Sample
GroupABC Accessories
CategoryStainless Steel Bands and Buckles
StandardsIEC and GB
CustomisationOEM and non standard accepted

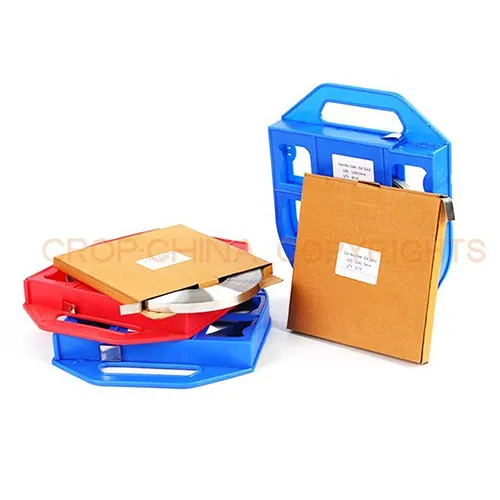

Stainless Steel Straps
OverviewSpecificationsGalleryOrderingFAQRelated

Overview

Stainless Steel Straps Description

Stainless Steel Straps also named Stainless steel Banding,it is corrosion resistant and can be used in different environments. It can withstand different weather conditions and temperatures.Stainless steel straps can withstand more force than nylon cable tie and can be used where nyloncable tie cannot be used.It can be cut to the length you need according to the needs of use.

Material of Stainless Steel Straps

It is manufacturered by the statinless steel plate 201,304,316.The width,thickness,length of roll,material grade and the color of dispenser can be customized according to customer’s requirement.

Parameters Table of Stainless Steel Banding

How to Produce the Stainless Steel Strapping?

Stainless steel straps are produced by cold rolling hot rolled coils as raw materials, with smooth and bright surfaces and accurate thickness and size.

Production process of stainless steel strapping

  • Raw black leather coil
  • bell annealing furnace
  • continuous annealing and pickling line for hot coil
  • grinding unit – 12-high rolling mill / 20-high rolling mill
  • cold coil continuous annealing and pickling line / vertical continuous bright annealing line
  • Fine grinding and polishing unit
  • Leveling unit
  • Tensile straightening and re-rolling unit
  • Finished cold rolled stainless steel coil

The purpose of annealing is to obtain the best mechanical properties of stainless steel.

The purpose of pickling the stainless steel strapping is to remove the oxide layer (commonly known as iron scale) formed on the surface of the steel strip during hot rolling and annealing, passivate the surface of the stainless steel, and improve the corrosion resistance of the stainless steel.

Realted Product of Stainless Steel Banding

Stainless Steel Buckle Y Stainless Steel Buckle LX Stainless Steel Buckle L

Tool STTB Tool STTB

Stainless Steel Banding Catalogue Download Here

If you want to know the product price and get the free sample,please feel free contact us.

Email: [email protected];[email protected]

Mob: 0086 177 5778 8662 / Whatsapp: 0086 17757788662 / Wechat: WXL17757788662

Specifications

Codes Ranges and Dimensions

Figures below are reproduced from the CROP catalogue for this item.

WIDTH(MM)8101/2″(12.7mm)5/8″(15.8mm)3/4″(19mm)20
Thickness(mm)0.4 0.5 0.6 0.70.4 0.5 0.6 0.70.4 0.5 0.6 0.70.4 0.5 0.6 0.70.4 0.5 0.6 0.70.4 0.5 0.6 0.7
Length for roll(m)30 or 5030 or 5030 or 5030 or 5030 or 5030 or 50
Material grade201 304 316201 304 316201 304 316201 304 316201 304 316201 304 316
Colour of dispenserRed or BlueRed or BlueRed or BlueRed or BlueRed or BlueRed or Blue

Ordering and Support

From Enquiry To Delivered Order

1

Send The Requirement

Item code, conductor or cable size and quantity, or a drawing and a photograph for a non standard part.

2

Quotation

Price, packing, carton quantity and lead time are confirmed against the catalogue reference.

3

Sample or Tooling

Samples are sent for approval. Parts that need a new mould go through the in house mould division.

4

Production and Shipment

Production to IEC and GB standards, then packing and shipment on the agreed terms.

Answers

Frequently Asked Questions

How do I choose the right size?
Match your conductor or cable size against the range column in the specification table on this page, then quote the code on that row. If the size falls between two rows, send both figures with your enquiry and the correct item will be confirmed.
Is Stainless Steel Straps available as a sample before a production order?
Yes. Ask for a sample by WhatsApp on 0086 138 6832 9796 or by email and the item, the packing and the lead time for a full order will be confirmed together.
Which standards do CROP products follow?
All CROP products are made to comply with IEC and GB standards. Where a project calls for a national or utility specification, send the standard reference with your enquiry and the matching item will be quoted.
Can items be produced to our own drawing?
Yes. Non-standard and OEM orders are part of the normal range. Send the drawing, a picture, the weight or the written specification to [email protected] or by WhatsApp and a quotation will be prepared against your requirement. CROP also runs its own mould division for plastic, SMC and stamped parts.
How do I obtain the PDF catalogue?
The catalogue is issued on request. Ask for the section you need by email or WhatsApp on 0086 138 6832 9796 and the PDF will be sent back to you. The catalogue page lists every section that is available.
