Solutions For LV ABC and Overhead Distribution Lines

Standard arrangement drawings for low voltage aerial bundled cable networks, with the CROP references that suit each position on the line.

Get A Custom SolutionBrowse Products

Delivery Path

From Line Data To Delivered Material

1

Network Survey and Selection

Span lengths, conductor and cable sizes and pole types decide which anchor, suspension and tap fittings fit the line. Send the line data and the matching references are proposed.

2

Material List

One list covers clamps, connectors, bands, brackets, enclosures and optical cable fittings, which keeps a build on a single purchase order.

3

Sampling and Approval

Samples of the selected references are sent for approval before the production run starts.

4

Non Standard Parts

Where a utility standard calls for a part that is not in the catalogue, the mould and tooling division produces it to drawing.

5

Production and Quality

Production follows IEC and GB standards, with the dimension and range figures published on each item page.

6

Packing and Shipment

Packing and carton quantity are confirmed with the quotation, then shipment on the agreed terms.

Arrangement Drawings

Standard Positions On An LV ABC Line

Series A, B and C cover the arrangements published in the CROP solution set.

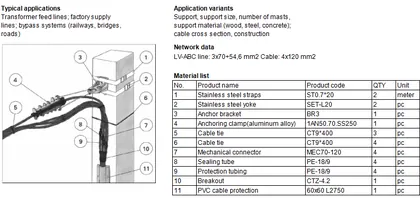

A-1: LV-ABC anchoring and cable connection
A-1: LV-ABC anchoring and cable connection
A-2: LV-ABC joints
A-2: LV-ABC joints
A-3: LV-ABC main suspension and service line tap
A-3: LV-ABC main suspension and service line tap
A-4: Service line anchoring
A-4: Service line anchoring
A-5: Service line house anchoring
A-5: Service line house anchoring
A-6: Service line house fuse box
A-6: Service line house fuse box
A-7: LV-ABC main suspension and earth connection
A-7: LV-ABC main suspension and earth connection
A-8: LV-ABC suspension and main tap
A-8: LV-ABC suspension and main tap
A-9: LV-ABC double anchoring deviation 100° and surge arresters
A-9: LV-ABC double anchoring deviation 100° and surge arresters
A-10: Transformer house connection
A-10: Transformer house connection
B-2: LV-ABC joints
B-2: LV-ABC joints
B-3: Suspension and service line tap
B-3: Suspension and service line tap
B-4: LV-ABC anchoring and connection to bare overhead line
B-4: LV-ABC anchoring and connection to bare overhead line
B-5: Bare main and service line tap
B-5: Bare main and service line tap

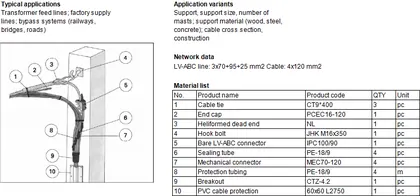

C-1: LV-ABC anchoring and cable connection
C-1: LV-ABC anchoring and cable connection
C-2: LV-ABC joints
C-2: LV-ABC joints
C-3: LV-ABC suspension and main tap
C-3: LV-ABC suspension and main tap
C-4: LV-ABC main suspension and service line tap with surge arrester
C-4: LV-ABC main suspension and service line tap with surge arrester
C-5: LV-ABC suspension and lamp connection
C-5: LV-ABC suspension and lamp connection

Solution For LV ABC Lines With Insulated Neutral Messenger

A-1: LV-ABC Anchoring and Cable Connection

A-2: LV-ABC Joints

A-3: LV-ABC Main Suspension and Service Line Tap

A-4: Service Line Anchoring

A-5: Service Line House Anchoring

A-6: Service Line House Fuse Box

A-7: LV-ABC Main Suspension and Earth Connection

A-8: LV-ABC Suspension and Main Tap

Matching Products

Ranges Used In These Arrangements

Piercing Connector 51 items Piercing Connector Anchor Clamp 22 items Anchor Clamp Parallel Groove Clamp 17 items Parallel Groove Clamp Lugs and Joints 63 items Lugs and Joints Stainless Steel Bands and Buckles 54 items Stainless Steel Bands and Buckles Bracket 20 items Bracket

Answers

Frequently Asked Questions

Which line types do these solutions cover?
The published drawings cover low voltage aerial bundled cable networks in three variants, from anchoring and jointing through suspension, service line taps, house anchoring, fuse boxes, earth connections, surge arresters and the transformer house connection.
Can CROP propose the fittings for my drawing?
Yes. Send the line drawing or the pole schedule to [email protected] or by WhatsApp on 0086 138 6832 9796 and a reference list will be proposed against it.
Which standards do CROP products follow?
All CROP products are made to comply with IEC and GB standards. Where a project calls for a national or utility specification, send the standard reference with your enquiry and the matching item will be quoted.
Can items be produced to our own drawing?
Yes. Non-standard and OEM orders are part of the normal range. Send the drawing, a picture, the weight or the written specification to [email protected] or by WhatsApp and a quotation will be prepared against your requirement. CROP also runs its own mould division for plastic, SMC and stamped parts.
How do I obtain the PDF catalogue?
The catalogue is issued on request. Ask for the section you need by email or WhatsApp on 0086 138 6832 9796 and the PDF will be sent back to you. The catalogue page lists every section that is available.
Who does CROP normally supply?
The customer base is made up of distributors and wholesalers of electrical products, electrical contractors and installers, equipment manufacturers, maintenance companies and utilities. CROP exports to many countries worldwide.
