Stainless Steel Bands and Buckles

Metal Strapping

The metal strapping also named stainless steel strapping.Stainless steel banding which is convenient to cut into straps to bundle kinds of materials

Material: stainless steel ANSI 201,304,316 Catalogue: 2014-A801

Request A Quote Email Us Request A Sample

GroupABC Accessories

CategoryStainless Steel Bands and Buckles

StandardsIEC and GB

CustomisationOEM and non standard accepted

Overview Specifications Gallery Ordering FAQ Related

Overview

Metal Strapping Description

Description of Metal Strapping

The metal strapping also named stainless steel strapping.Metal strapping which is convenient to cut into straps to bundle kinds of materials for transport or storage, or secure other items like cables or wires,for example to pipes.Fixed the anchoring clamp to the pole to anchor the cables.The stainless steel strapping is the most strong and cut-resistant material compared to any other strapping (cord, polyester, polypropylene).

Material of Meatal Strapping

The metal strapping is made of stainless steel 201,304,316.

Type 201 strapping: Stainless steel resists chemicals, salts, heat, cold, moisture, UV light and high temperatures. Secure outdoor signs, bundle cables and create custom clamps for hoses and duct work.It is the standard in banding and fastening for general applications. Type 201 won’t oxidize and is corrosion resistant except in the most demanding environments and is harder & stronger than either Type 304 or 316 stainless steel.

Type 304 strapping: Stainless steel type 304 is defined by its higher nickel content than the 201 type of stainless steel and therefore is less susceptible to corrosion. The rising cost of nickel makes stainless steel type 304 slightly more expensive. It is widely used in unfavorable weather conditions such as rain, snow, salt water, etc

Type 316 strapping: Stainless steel type 316 esists chemicals, salts, heat, cold, moisture,UV light is good than Stainless steel type 201 and 304.

Performance

1.It is offering very high strength,clean appearance and good resistance to oxidation and weathering.

2.Installation very easy and quickly.

3.Eliminates costly waste and complicated measuring by allowing users to quickly and precisely roll out the length of band needed for any clamp.

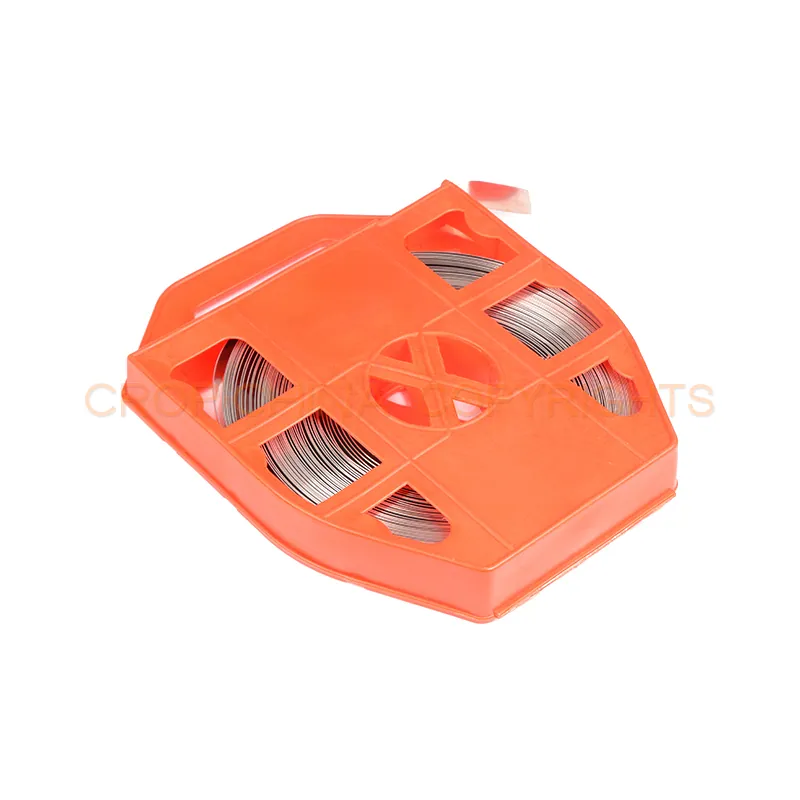

Packing

CROP has two packing method for metal strapping.

1.Packing with the plastic box,the color has red or blue.

2.Packing with the paper box.

Catalogue download here

Specifications

Codes Ranges and Dimensions

Figures below are reproduced from the CROP catalogue for this item.

WIDTH(MM)	8	10	12	16	19	20
Thickness(mm)	0.4 0.5 0.6 0.7	0.4 0.5 0.6 0.7	0.4 0.5 0.6 0.7	0.4 0.5 0.6 0.7	0.4 0.5 0.6 0.7	0.4 0.5 0.6 0.7
Length for roll(m)	30 or 50	30 or 50	30 or 50	30 or 50	30 or 50	30 or 50
Material grade	201 304 316	201 304 316	201 304 316	201 304 316	201 304 316	201 304 316
Colour of dispenser	Red or Blue	Red or Blue	Red or Blue	Red or Blue	Red or Blue	Red or Blue
*The width,thickness,material grade,colour of dispenser can be customized according to customer requirement.

Product Images

Ordering and Support

From Enquiry To Delivered Order

Send The Requirement

Item code, conductor or cable size and quantity, or a drawing and a photograph for a non standard part.

Quotation

Price, packing, carton quantity and lead time are confirmed against the catalogue reference.

Sample or Tooling

Samples are sent for approval. Parts that need a new mould go through the in house mould division.

Production and Shipment

Production to IEC and GB standards, then packing and shipment on the agreed terms.

Answers

Frequently Asked Questions

How do I choose the right size?

Match your conductor or cable size against the range column in the specification table on this page, then quote the code on that row. If the size falls between two rows, send both figures with your enquiry and the correct item will be confirmed.

Is Metal Strapping available as a sample before a production order?

Yes. Ask for a sample by WhatsApp on 0086 138 6832 9796 or by email and the item, the packing and the lead time for a full order will be confirmed together.

Which standards do CROP products follow?

All CROP products are made to comply with IEC and GB standards. Where a project calls for a national or utility specification, send the standard reference with your enquiry and the matching item will be quoted.

Can items be produced to our own drawing?

Yes. Non-standard and OEM orders are part of the normal range. Send the drawing, a picture, the weight or the written specification to [email protected] or by WhatsApp and a quotation will be prepared against your requirement. CROP also runs its own mould division for plastic, SMC and stamped parts.

How do I obtain the PDF catalogue?

The catalogue is issued on request. Ask for the section you need by email or WhatsApp on 0086 138 6832 9796 and the PDF will be sent back to you. The catalogue page lists every section that is available.
