Parallel Groove Clamp

Плашечные зажимы для соединения неизолированных алюминиевых или стальных проводов

Parallel Groove Clamp AL-AL for bare neutral messenger and grounding Type: AL-AL Aluminum to Aluminum

  • Parallel Groove Clamp AL-AL for bare neutral messenger and grounding Type: AL-AL Aluminum to Aluminum
Request A Quote Email Us Request A Sample
GroupPower Connectors
CategoryParallel Groove Clamp
StandardsIEC and GB
CustomisationOEM and non standard accepted
Плашечные зажимы для соединения неизолированных алюминиевых или стальных проводов
OverviewSpecificationsGalleryOrderingFAQRelated

Overview

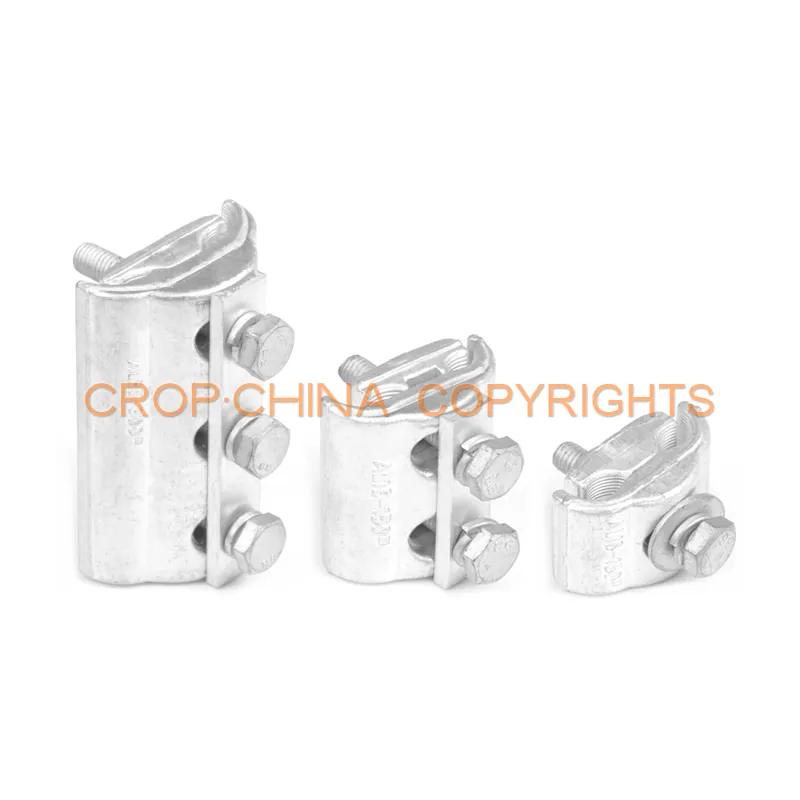

Плашечные Зажимы Для Соединения Неизолированных Алюминиевых Или Стальных Проводов

Плашечные зажимы для соединения неизолированных алюминиевых или стальных проводов is a catalogue reference in the Parallel Groove Clamp range, part of the Power Connectors group at CROP.

The catalogue entry for this reference carries the model code and the product illustration. Conductor range, dimensions, material and packing are confirmed against your requirement, so send the cable or conductor size and the quantity with your enquiry and the matching data sheet will be sent back with the quotation.

Items in this range are made to comply with IEC and GB standards, and non standard versions are produced to drawing through the CROP mould and tooling division.

Specifications

Codes Ranges and Dimensions

Figures below are reproduced from the CROP catalogue for this item.

МаркировкаPG660-11PG660-12PG660-22PG660-23PG660-24
Сечение магистрали(mm2)16-7016-15016-7016-15025-185
Сечение ответвления (mm2)16-7016-15016-7016-15025-185
Bolt No.:11222
Remarks:Al to AlAl to AlAl to AlAl to AlAl to Al
МаркировкаPG660-31PG660-32PG660-33PG660-34
Сечение магистрали(mm2)16-7016-15025-24035-300
Сечение ответвления (mm2)16-7016-15025-24035-300
Bolt No.:3333
Remarks:Al to AlAl to AlAl to AlAl to Al

Ordering and Support

From Enquiry To Delivered Order

1

Send The Requirement

Item code, conductor or cable size and quantity, or a drawing and a photograph for a non standard part.

2

Quotation

Price, packing, carton quantity and lead time are confirmed against the catalogue reference.

3

Sample or Tooling

Samples are sent for approval. Parts that need a new mould go through the in house mould division.

4

Production and Shipment

Production to IEC and GB standards, then packing and shipment on the agreed terms.

Answers

Frequently Asked Questions

How do I choose the right size?
Match your conductor or cable size against the range column in the specification table on this page, then quote the code on that row. If the size falls between two rows, send both figures with your enquiry and the correct item will be confirmed.
Is Плашечные зажимы для соединения неизолированных алюминиевых или стальных проводов available as a sample before a production order?
Yes. Ask for a sample by WhatsApp on 0086 138 6832 9796 or by email and the item, the packing and the lead time for a full order will be confirmed together.
Which standards do CROP products follow?
All CROP products are made to comply with IEC and GB standards. Where a project calls for a national or utility specification, send the standard reference with your enquiry and the matching item will be quoted.
Can items be produced to our own drawing?
Yes. Non-standard and OEM orders are part of the normal range. Send the drawing, a picture, the weight or the written specification to [email protected] or by WhatsApp and a quotation will be prepared against your requirement. CROP also runs its own mould division for plastic, SMC and stamped parts.
How do I obtain the PDF catalogue?
The catalogue is issued on request. Ask for the section you need by email or WhatsApp on 0086 138 6832 9796 and the PDF will be sent back to you. The catalogue page lists every section that is available.

Next Step

Get A Price For Плашечные зажимы для соединения неизолированных алюминиевых или стальных проводов

Send the code, the size and the quantity. Drawings for non standard versions are welcome.
