Parallel Groove Clamp

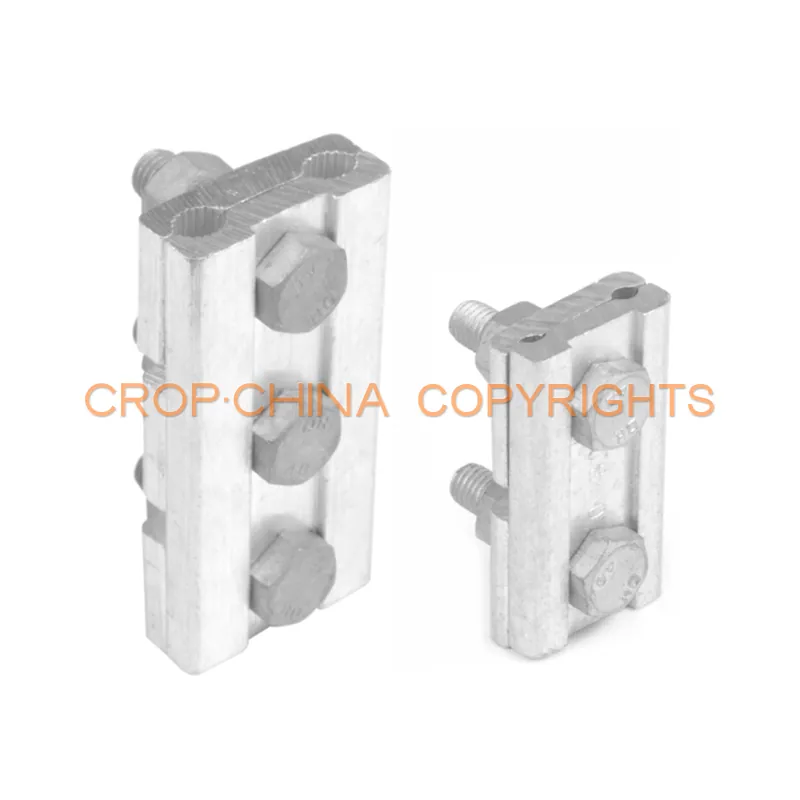

Parallel Groove Clamp AL-AL JB Series

Parallel Groove Clamp AL-AL for bare neutral messenger and grounding Type: AL-AL Aluminum to Aluminum

  • Parallel Groove Clamp AL-AL for bare neutral messenger and grounding Type: AL-AL Aluminum to Aluminum
Request A Quote Email Us Request A Sample
GroupPower Connectors
CategoryParallel Groove Clamp
StandardsIEC and GB
CustomisationOEM and non standard accepted
Parallel Groove Clamp AL-AL JB Series
OverviewSpecificationsGalleryOrderingFAQRelated

Overview

Parallel Groove Clamp AL-AL JB Series Description

PARALLEL GROOVE CLAMP

Description Designed to connect two parallel bare conductors. Conductors can be aluminum alloy or aluminum steel reinforced. Material Connector bodies made of corrosion resistant, high strength aluminum alloy 99.5 Bolts: DIN 933, steel 8.8, dacromet; Nut: DIN934, dacromet, pressed into lower part Pressure pad: aluminum alloy; Spring washer: DIN127, steel Conical washer/Spring washers: Steel, DIN6796 corrosion-protected, dacromet Stainless steel A2 bolts and nuts available according to order. Features Pressure pad ensuring uniform pressure along the clamp Cross-grooved clamp channels of universal clamp type improve mechanical pullout strength and electrical contact.

Specifications

Codes Ranges and Dimensions

Figures below are reproduced from the CROP catalogue for this item.

ModelsJB-0JB-1JB-2JB-3JB-4
Main Line(mm²)16-2535-5070-95120-150185-240
Service Line (mm ² )16-2535-5070-95120-150185-240
Bolt No.22333
RemarksAl to AlAl to AlAl to AlAl to AlAl to Al

Ordering and Support

From Enquiry To Delivered Order

1

Send The Requirement

Item code, conductor or cable size and quantity, or a drawing and a photograph for a non standard part.

2

Quotation

Price, packing, carton quantity and lead time are confirmed against the catalogue reference.

3

Sample or Tooling

Samples are sent for approval. Parts that need a new mould go through the in house mould division.

4

Production and Shipment

Production to IEC and GB standards, then packing and shipment on the agreed terms.

Answers

Frequently Asked Questions

How do I choose the right size?
Match your conductor or cable size against the range column in the specification table on this page, then quote the code on that row. If the size falls between two rows, send both figures with your enquiry and the correct item will be confirmed.
Is Parallel Groove Clamp AL-AL JB Series available as a sample before a production order?
Yes. Ask for a sample by WhatsApp on 0086 138 6832 9796 or by email and the item, the packing and the lead time for a full order will be confirmed together.
Which standards do CROP products follow?
All CROP products are made to comply with IEC and GB standards. Where a project calls for a national or utility specification, send the standard reference with your enquiry and the matching item will be quoted.
Can items be produced to our own drawing?
Yes. Non-standard and OEM orders are part of the normal range. Send the drawing, a picture, the weight or the written specification to [email protected] or by WhatsApp and a quotation will be prepared against your requirement. CROP also runs its own mould division for plastic, SMC and stamped parts.
How do I obtain the PDF catalogue?
The catalogue is issued on request. Ask for the section you need by email or WhatsApp on 0086 138 6832 9796 and the PDF will be sent back to you. The catalogue page lists every section that is available.
