Parallel Groove Clamp

2 Bolts P.G. Clamps CAPG 661 Series

P.G. Clamps is short for Parallel Groove Clamp,it is used for parallel two condcutors,and provides for secure holding support of conductors.

  • P.G. Clamps CAPG 661 Size: (25-120) mm2 / (16-95) mm2,Bolt Size: M8 P.G. Clamps is short for Parallel Groove Clamp,it
Request A Quote Email Us Request A Sample
GroupPower Connectors
CategoryParallel Groove Clamp
StandardsIEC and GB
CustomisationOEM and non standard accepted
2 Bolts P.G. Clamps CAPG 661 Series
OverviewSpecificationsGalleryOrderingFAQRelated

Overview

2 Bolts P.G. Clamps CAPG 661 Series Description

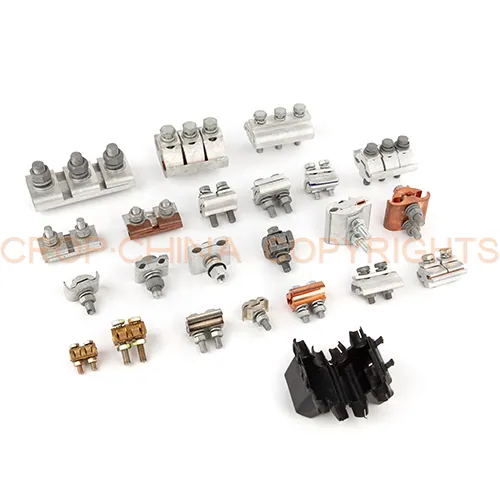

P.G. Clamps CAPG 661 Size: (25-120) mm2 / (16-95) mm2,Bolt Size: M8

P.G. Clamps is short for Parallel Groove Clamp,it is used for parallel two condcutors,and provides for secure holding support of conductors.You need buy a PG clamp when you want to install a second conductor in a closed loop,such as these applications.

Material

  • Body: Aluminum alloy or copper
  • Bolt and nut: hot dip galvanized

Types

  • Aluminum PG Clamp
  • Bimetal PG Clamp
  • Copper Parallel Groove Clamp
  • Copper tinned Parallel Groove Clamp

How to Select the Types

About how to select the types,it is according to the material of conductor which you use.

1.The aluminum type can be used for parallel connect the aluminum conductor or ACSR conductor.

2.The bimetal type can be usde for parallel connect the aluminum conductor and copper coductor.

3.The copper type can be used for parallel connect the copper conductor.

4.The copper tinned type parallel connect the aluminum conductor and copper coductor.

Catalogue Download

Specifications

Codes Ranges and Dimensions

Figures below are reproduced from the CROP catalogue for this item.

ModelsPG660-11PG660-12PG660-22PG660-23PG660-24
Main Line(mm²)16-7016-15016-7016-15025-185
Service Line (mm ² )16-7016-15016-7016-15025-185
Bolt No.11222
RemarksAl to AlAl to AlAl to AlAl to AlAl to Al
ModelsPG660-31PG660-32PG660-33PG660-34
Main Line(mm²)16-7016-15025-24035-300
Service Line (mm²)16-7016-15025-24035-300
Bolt No.3333
RemarksAl to AlAl to AlAl to AlAl to Al
ModelsPG661-11PG661-12PG661-21PG661-22PG661-23
Main Line(mm²)Al 16-70AL 25-150Al 16-70Al 25-150Al 35-200
Service Line (mm²)Cu 6-50Cu 10-95Cu 6-50Cu 10-95Cu 25-185
Bolt No.11222
RemarksAl to CuAl to CuAl to CuAl to CuAl to Cu
ModelsPG661-31PG661-32PG661-33PG661-34
Main Line(mm²)Al 16-70AL 25-150Al 35-240Al 35-300
Service Line (mm²)Cu 6-50Cu 10-95Cu 25-185Cu 35-240
Bolt No.3333
RemarksAl to CuAl to CuAl to CuAl to Cu
