Preformed Suspension Clamp

Armor grip suspension is used for hanging wire and groun wire on pole.Preformed suspension clamp is intended for use by trained craftspeople only.

Heliformed Suspension clamp is intended for use on aluminum based conductors,Aluminum Coated Steel Conductor and galvanize d steel st rands. It is designed to reduce the static and dynamic stresses at the support point,so that the conductor or strand is protected against the effects of oscillations. It also protects the conductor in the support against impulse and power flash-over.

Request A Quote Email Us Request A Sample

GroupTransmission and Distribution

CategoryPreformed Line Fittings

StandardsIEC and GB

CustomisationOEM and non standard accepted

Overview Specifications Gallery Ordering FAQ Related

Overview

Preformed Suspension Clamp Description

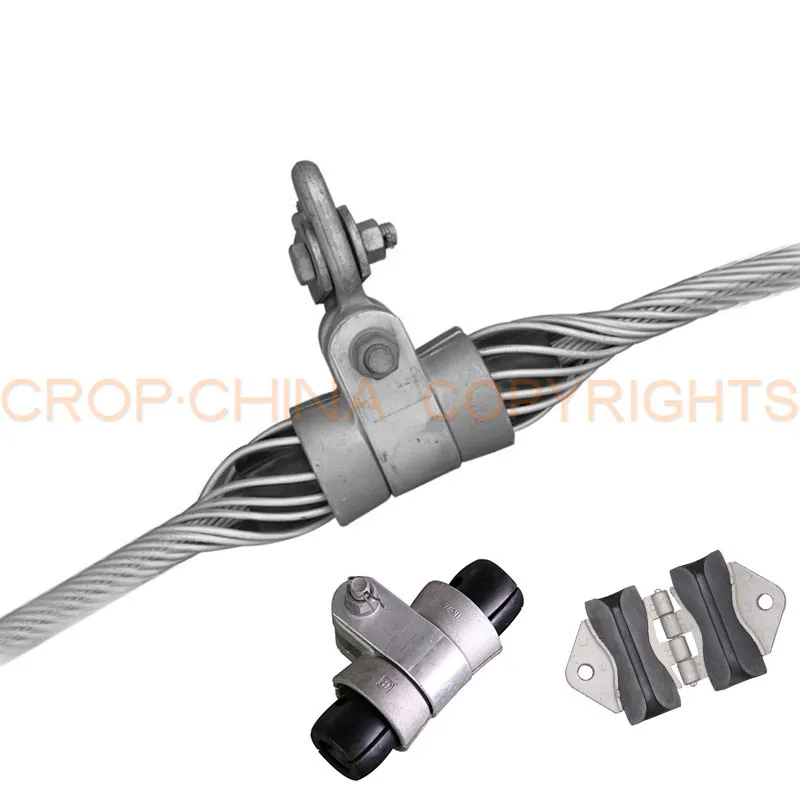

Heliformed Suspension Clamp

Application of Armor grip suspension

1.for the reduction of static stresses at conductor suspension points and to provide greater protection to conductors against the dynamic stresses of Aeolian vibration. 2.To give conductors protection against impulse and flash-over. 3.To protect conductors against abrasion,bending and compression stresses.The protection offered by heliformed suspension clamp fittings is superior to armor-clamp combinations. 4.To install line angles up to and including 30 and through use of double units,up to 60. 5.For proper performance and personal safety be sure to select the proper size with preformed Armor Rods and clamps according the conductors size before application. 6.Dead ends are precision devices.To insure proper performance,they should be stored in cartons under cover and handled carefully.

Safety Considerations of preformed suspension clamp 1.Armor grip suspension is intended for a single(one-time)use and for the specified application. 2.Preformed suspension clamp is intended for use by trained craftspeople only.This product sh ould not be used by anyone who is not familiar with and trained in the use of it. 3.When working in the area of energized lines with this product,extra care should be taken to prevent accidental electrical contact.

Armor grip suspension is used for hanging wire and groun wire on pole.It can not only effectively protect the wire but also greatly reduce corona discharge due to its smooth outer contour.Thus,it is particularly suitable for extra-high voltage(220KV and above)lines.Dual support gelical suspension clamp can also be used for long-distance transmission lines across the river and towers with great corner(30-60°）and is an ideal comnination of helical armor rod and suspension clamp.

①Helic armor rod: Aluminum-clad steel wire is used for ACSR with wire diameter of 7.2-12.23mm. Aluminum alloy wire is used for ACSR with wire diameter of 12.24-56.72mm. Aluminum-clad steel wire is used for aluminum-clad with diameter of 6.91-12.70mm. Galvanized steel wire is used for galvanized steel conductor with wire diameter of 6.91-12.70mm. The sizes of preformed armor rod and preformed suspension clamo are different.They can’t be used unterchangeably. ②Rubber gasket: specially formulated rubber elastic body can resist ozone erosion,as well as impact of extreme heat,cold and other harsh climate,and withstand pressure.There is an aluminum plate in the rubber elastic body. ③Metal sheath: high-strength aluminum alloy castings. ④Fixing clip: high strength aluminum alloy. ⑤/⑥/⑦Bolt/fastening washer/nuts: hot galvanizing parts.

Armor Grip Suspension for ACSR

Preformed Suspension Clamp for AAAC

Specifications

Codes Ranges and Dimensions

Figures below are reproduced from the CROP catalogue for this item.

Model	Applicabke type of guide wire (GB1179-83) LGJ/LGJF	Applicable diameter of guide wire (mm)	Reference length of wire clamp(mm)	Color code	Vertical breaking strength(KN)	Optional mating Suspension loop
Min.	Max.
CL-35/6	35/6	8.03	8.31	660	Red	66	YB-15-B
CL-50/8	50/8	9.53	9.88	660	Pink
CL-70/10	70/10	11.05	11.45	914	Blue
CL-95/15	95/15	13.49	13.78	1041	Yellow	66
CL-95/20	95/20	13.79	14.10	1118	Black
CL-120/70	120/70	14.11	14.56	1118	White
CL-120/20	120/20	14.57	15.10	1143	Brown
CL-120/25	120/25	15.42	15.74	1168	Purple
CL-150/8	150/8	15.75	16.39	1270	Red
CL-150/20	150/20	16.40	17.10	1372	Blue
CL-150/25	150/25	16.40	17.10	1372	Blue
CL-150/35	150/35	17.11	17.54	1372	Green	66
CL-185/10	185/10	17.55	18.04	1372	Yellow
CL-185/25	185/25	18.59	19	1422	White
CL-185/30	185/30	18.59	19	1422	White
CL-210/10	210/10	18.59	19	1422	White
CL-180/45	180/45	19.52	20.1	1524	Orange
CL-210/25	210/25	19.52	20.1	1524	Orange
CL-210/35	210/35	20.11	20.94	1549	Purple	89	YB-20-B
CL-210/50	210/50	20.11	20.94	1549	Purple
CL-240/30	240/30	21.48	22.09	1626	Blue
CL-240/40	240/40	21.48	22.09	1626	Blue
CL-240/55	240/55	22.10	22.59	1651	Green
CL-300/15	300/15	22.70	23.05	1651	Green
CL-300/20	300/20	23.29	23.79	1676	Black
CL-300/25	300/25	23.29	23.79	1676	Black
CL-300/40	300/40	23.80	24.45	1702	White
CL-300/50	300/50	23.80	24.45	1702	White
CL-300/70	300/70	25.08	25.54	1753	Orange
CL-400/20	400/20	26.43	27.29	2083	Blue	111	YB-25-B
CL-400/25	400/25	26.43	27.29	2083	Blue
CL-400/35	400/35	26.43	27.29	2083	Blue
CL-400/50	400/50	27.30	27.69	2083	Green
CL-400/65	400/65	27.70	28.40	2083	Yellow
CL-400/95	400/95	28.88	29.26	2083	White
CL-500/35	500/35	29.87	30.68	2083	Orange
CL-500/45	500/45	29.87	30.68	2083	Orange
CL-500/65	500/65	30.69	31.14	2235	Purple
CL-630/45	630/45	33.39	34.42	2235	Yellow
CL-630/25	630/25	34.43	35.41	2235	Black
CL-630/80	630/80	34.43	35.41	2235	Black
CL-800/55	800/55	37.53	38.51	2235	Purple
CL-800/70	800/70	38.52	39.55	2235	Red
CL-800/100	800/100	38.52	39.55	2235	Red

Model	Applicabke type of guide wire (GB1179-83) LGJ/LGJF	Applicable diameter of guide wire (mm)	Reference length of wire clamp(mm)	Color code	Vertical breaking strength(KN)	Optional mating Suspension loop
Min.	Max.
CL-95	95	12.24	12.69	1016	Red	66	YB-15-B
CL-120	120	14.11	14.56	1118	White
CL-150	150	15.75	16.39	1270	Red
CL-185	185	17.11	17.54	1372	Green	66
CL-210	210	18.59	19.00	1422	White
CL-240	240	19.52	20.10	1524	Orange	89	YB-20-B
CL-300	300	22.10	22.69	1651	Green
CL-400	400	25.55	25.97	2032	Purple	111	YB-25-B
CL-500	500	28.88	29.26	2083	White
CL-630	630	32	32.67	2235	Blue
CL-800	800	36.64	37.52	2235	Orange
