Power Line Hardware
Guy Line Markers
Guy Line Markers also named guy guard marker.It is made of polyethylene or PVC,the color is yellow and the length is 8'.
- Guy Line Markers also named guy guard marker.It is made of polyethylene or PVC,the color is yellow and the length is 8′.
- Material: Polyethylene anti UV or PVC
- Accessories: two nylon cable tie or one metal clamp
Overview
Guy Line Markers Description
Guy Line Markers also named guy guard marker.It is made of polyethylene or PVC.This product is generally selected to use PE, because the PE material has better plasticity, is not easy to crack, and has a longer service life,anti-UV.The length always 8′.We can customized your requirement length if you need the other length.
The color of guy line markers is yellow.Yellow is a bright color that acts as a warning.It can warn pedestrians or vehicles that there are cables here, both to protect pedestrians or vehicles from injury, and to protect cables from damage.
Guy Line Markers Type
Guy guard marker are available used with two attachment

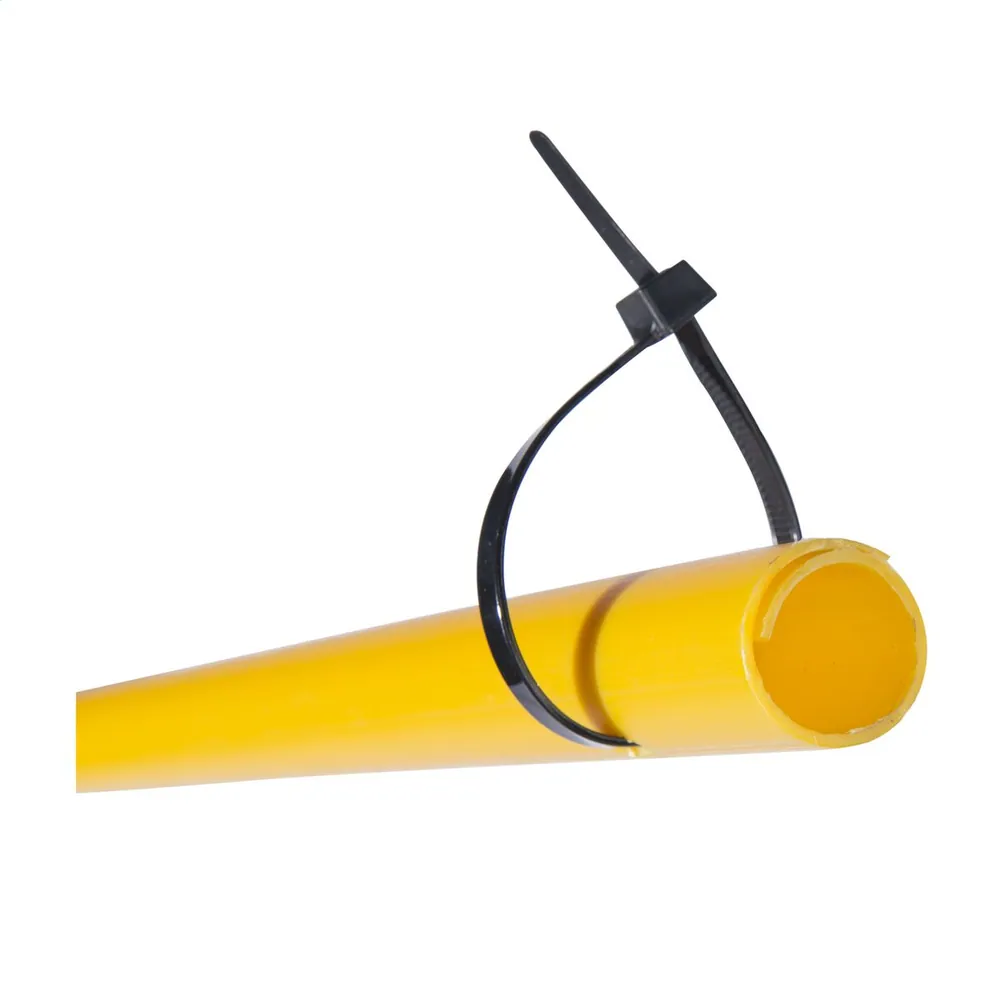

A: with self locking nylon cable tie.Both warning pipe will be tigh with a self locking nylon cable tie.The nylon cable tie style is easy to use and is more economical.
B: with a metal clamp
Related Product of Guy Guard Marker
CROP is the manufacturer who is specialized in produce the splice sleeve,yellow guy guard marker,ground wire moulding and insulated protection cable cover.
Packing of Markers Guards
Above packing detail just for your reference to calculate the freight cost.We also can be packing it by carton.
Catalogue Download
If you want to know the more details of this product,please feel free contact us.
Email: [email protected];[email protected]
Mob: 0086 177 5778 8662 / Whatsapp: 0086 17757788662 / Wechat: WXL17757788662
Specifications
Codes Ranges and Dimensions
Figures below are reproduced from the CROP catalogue for this item.
| Type | Size | Thickness mm | Length mm | Color | Accessories |
|---|---|---|---|---|---|
| PVC50.8 | 2″ | 1.6 | 2440 | Yellow | A: cable tie B: metal clamp |
| GM 2″ | 2″ | 1.6 | 2440 | Yellow | |
| GM 1″ | 1″ | 1.6 | 2440 | Yellow | |
| GM 2-1/4″ | 2-1/4″ | 1.6 | 2440 | Yellow |
| Type | Quantity/woven bags | Gross weight/woven bags | Net weight/woven bags | Volume/woven bags | woven bags size |
|---|---|---|---|---|---|
| GM-2″ with 1pc metal clamp | 15 pcs | 10 kg | 9.5kg | 0.109 | 245×18.5x24cm |
| GM-2″ with 2pc cable tie | 15 pcs | 9.5 kg | 9 kg | 0.109 | 245×18.5x24cm |
Product Images
Ordering and Support
From Enquiry To Delivered Order
Send The Requirement
Item code, conductor or cable size and quantity, or a drawing and a photograph for a non standard part.
Quotation
Price, packing, carton quantity and lead time are confirmed against the catalogue reference.
Sample or Tooling
Samples are sent for approval. Parts that need a new mould go through the in house mould division.
Production and Shipment
Production to IEC and GB standards, then packing and shipment on the agreed terms.
Answers
Frequently Asked Questions
How do I choose the right size?
Is Guy Line Markers available as a sample before a production order?
Which standards do CROP products follow?
Can items be produced to our own drawing?
How do I obtain the PDF catalogue?
