Copper Split Bolts

Copper split bolts is also named split bolt connector,used for connecting the 2 copper wire in power or grounding electrical connection applications.

Split-Bolt Connectors, For copper-to-copper connections. High-Strength Split-Bolt Connectors

Request A Quote Email Us Request A Sample

GroupTransmission and Distribution

CategoryPower Line Hardware

StandardsIEC and GB

CustomisationOEM and non standard accepted

Overview Specifications Gallery Ordering FAQ Related

Overview

Copper Split Bolts Description

Copper split bolts is also named split bolt connector,it is used for connecting the 2 copper wire in power or grounding electrical connection applications.It is suitable for connecting a wide range of stranded copper earthing conductors.The conductor range from 16-240 mm2.The internal pressure bar provides a secure connection on a full range of conductor combinations used with each Lug assuring premium wire pull-out strength.

Material

Made of high strength,corrosion resistant Copper alloy or copper alloy tinned

Split Bolt Connector Size Chart

Types

CROP code: T/J,made of copper alloy,can be used for copper to copper conductor connection.

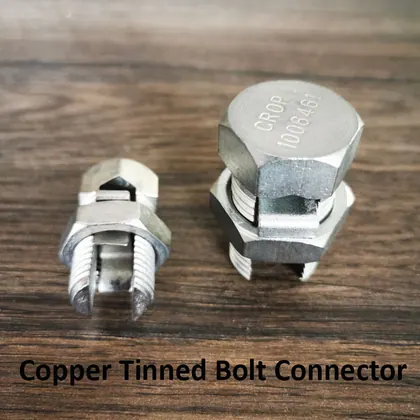

CROP code: T/JS,made of copper alloy tinned,can be used for copper to copper,copper to aluminum,aluminum to aluminum conductor connection.

CROP code: T/JB,made of copper alloy,can be used for copper to copper conductor connection.This type can be used with other pole line hardware to fix the conductor.

The following is the corresponding product picture.

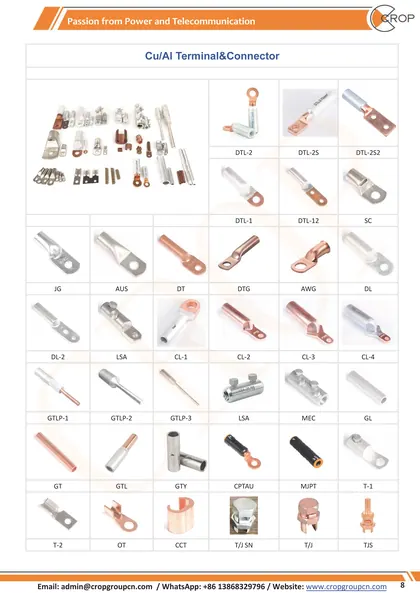

Catalogue Download

If you want to know the copper split bolt price,please feel free contact us.

Email: [email protected];[email protected]

Mob: 0086 177 5778 8662 / Whatsapp: 0086 17757788662 / Wechat: WXL17757788662

Specifications

Codes Ranges and Dimensions

Figures below are reproduced from the CROP catalogue for this item.

Model	L(mm)	M(mm)	C(mm)	A(mm)
T/J-16	20	M17×2.5	6	18
T/J-25	27	M19×2.5	7	20
T/J-35	35	M21×2.5	7	22
T/J-50-70	42	M23×2.5	11	24
T/J-90-120	45	M25×2.5	14	26
T/J-150-185	60	M29×2.5	17	30
T/J-210-240	62	M31×2.5	20	32

Product Images

Ordering and Support

From Enquiry To Delivered Order

Send The Requirement

Item code, conductor or cable size and quantity, or a drawing and a photograph for a non standard part.

Quotation

Price, packing, carton quantity and lead time are confirmed against the catalogue reference.

Sample or Tooling

Samples are sent for approval. Parts that need a new mould go through the in house mould division.

Production and Shipment

Production to IEC and GB standards, then packing and shipment on the agreed terms.

Answers

Frequently Asked Questions

How do I choose the right size?

Match your conductor or cable size against the range column in the specification table on this page, then quote the code on that row. If the size falls between two rows, send both figures with your enquiry and the correct item will be confirmed.

Is Copper Split Bolts available as a sample before a production order?

Yes. Ask for a sample by WhatsApp on 0086 138 6832 9796 or by email and the item, the packing and the lead time for a full order will be confirmed together.

Which standards do CROP products follow?

All CROP products are made to comply with IEC and GB standards. Where a project calls for a national or utility specification, send the standard reference with your enquiry and the matching item will be quoted.

Can items be produced to our own drawing?

Yes. Non-standard and OEM orders are part of the normal range. Send the drawing, a picture, the weight or the written specification to [email protected] or by WhatsApp and a quotation will be prepared against your requirement. CROP also runs its own mould division for plastic, SMC and stamped parts.

How do I obtain the PDF catalogue?

The catalogue is issued on request. Ask for the section you need by email or WhatsApp on 0086 138 6832 9796 and the PDF will be sent back to you. The catalogue page lists every section that is available.
