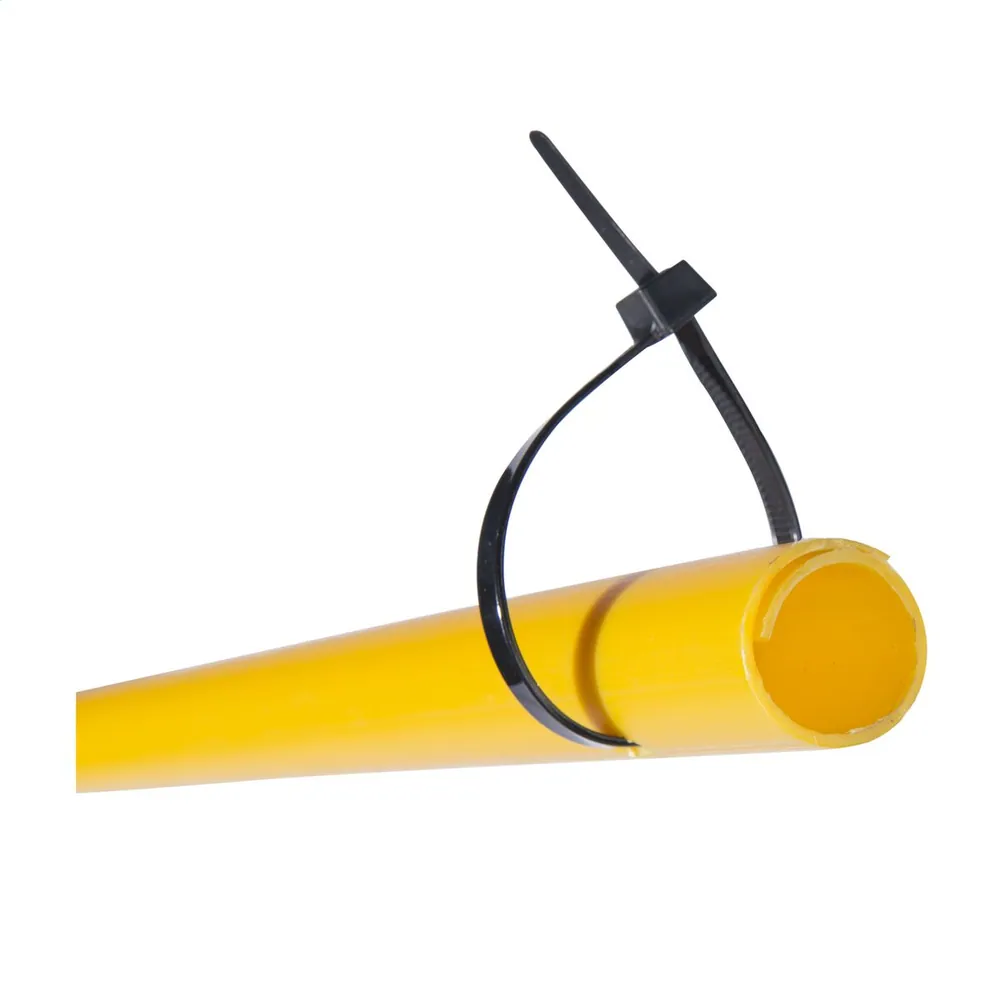

Full Round Marker 8 ft.

Full round marker 8 ft also named guy guard marker.It is used to protect the cable or guy wire.The colour is yellow.

Full round marker 8 ft also named guy guard marker.It is used to protect the cable or guy wire.The colour is yellow.
Material: Polyethylene anti UV or PVC
Accessories: two nylon cable tie or one metal clamp

Request A Quote Email Us Request A Sample

GroupTransmission and Distribution

CategoryPower Line Hardware

StandardsIEC and GB

CustomisationOEM and non standard accepted

Overview Specifications Gallery Ordering FAQ Related

Overview

Full Round Marker 8 Ft Description

Full Round Marker 8 Ft

Full round marker 8 ft also named guy guard marker.It is used to protect the cable or guy wire.The guy guard marker has two type accessories.One type accessories is both end with cable ties,the other type accessories is one end with a metal clamp.

Full Round Marker Type

Full Round Marker 8 Ft. Installation Instructions

Step 1. Position Guy Marker so that top of Marker is upward on the strand.

Note: the TOP end is located opposite of the end with the zip tie.

Step 2. Place the slit of the Marker on the strand. Push the strand through overlap into center of Marker as shown in Figure 2.

Step 3. Continue application by simultaneously rotating and pushing Marker onto strand. In new construction just slide Marker onto strand, and then apply deadend.

Step 4. Continue rotating and pushing Marker onto strand until strand is completely inside Marker, and Marker can be freely moved up and down strand.

Step 5. Remove zip tie and insert zip tie strap through the two slots.

Step 6. Pull Marker down over deadend allowing Marker to expand and conform to hardware as required. Wrap zip tie strap around Marker and hardware. Place the zip tie strap through its self-locking tab. Pull tightly to secure Marker.

Related Product of Guy Guard Marker

CROP is the manufacturer who is specialized in produce the splice sleeve,yellow guy guard marker,ground wire moulding and insulated protection cable cover.

Packing of Full Round Marker

Above packing detail just for your reference to calculate the freight cost.We also can be packing it by carton.

Catalogue Download

If you want to know the more details of this product,please feel free contact us.

Email: [email protected];[email protected]

Mob: 0086 177 5778 8662 / Whatsapp: 0086 17757788662 / Wechat: WXL17757788662

Specifications

Codes Ranges and Dimensions

Figures below are reproduced from the CROP catalogue for this item.

Type	Size	Thickness mm	Length mm	Color	Accessories
PVC50.8	2″	1.6	2440	Yellow	A: cable tie B: metal clamp
GM 2″	2″	1.6	2440	Yellow
GM 1″	1″	1.6	2440	Yellow
GM 2-1/4″	2-1/4″	1.6	2440	Yellow

Type	Quantity/woven bags	Gross weight/woven bags	Net weight/woven bags	Volume/woven bags	woven bags size
GM-2″ with 1pc metal clamp	15 pcs	10 kg	9.5kg	0.109	245×18.5x24cm
GM-2″ with 2pc cable tie	15 pcs	9.5 kg	9 kg	0.109	245×18.5x24cm

Product Images

Ordering and Support

From Enquiry To Delivered Order

Send The Requirement

Item code, conductor or cable size and quantity, or a drawing and a photograph for a non standard part.

Quotation

Price, packing, carton quantity and lead time are confirmed against the catalogue reference.

Sample or Tooling

Samples are sent for approval. Parts that need a new mould go through the in house mould division.

Production and Shipment

Production to IEC and GB standards, then packing and shipment on the agreed terms.

Answers

Frequently Asked Questions

How do I choose the right size?

Match your conductor or cable size against the range column in the specification table on this page, then quote the code on that row. If the size falls between two rows, send both figures with your enquiry and the correct item will be confirmed.

Is Full Round Marker 8 ft. available as a sample before a production order?

Yes. Ask for a sample by WhatsApp on 0086 138 6832 9796 or by email and the item, the packing and the lead time for a full order will be confirmed together.

Which standards do CROP products follow?

All CROP products are made to comply with IEC and GB standards. Where a project calls for a national or utility specification, send the standard reference with your enquiry and the matching item will be quoted.

Can items be produced to our own drawing?

Yes. Non-standard and OEM orders are part of the normal range. Send the drawing, a picture, the weight or the written specification to [email protected] or by WhatsApp and a quotation will be prepared against your requirement. CROP also runs its own mould division for plastic, SMC and stamped parts.

How do I obtain the PDF catalogue?

The catalogue is issued on request. Ask for the section you need by email or WhatsApp on 0086 138 6832 9796 and the PDF will be sent back to you. The catalogue page lists every section that is available.
