Power Line Hardware
Down Guy Guard Marker Yellow Plastic
Down guy guard marker yellow plastic also named yellow guy wire guards.It is used to protect the exposed pole guy wires,dead end fittings.
- Guy Markers Guards are full round markers used to identify and protect down guys wires.
- Material: Polyethylene anti UV or PVC
- Accessories: two nylon cable tie or one metal clamp
Overview
Down Guy Guard Marker Yellow Plastic Description

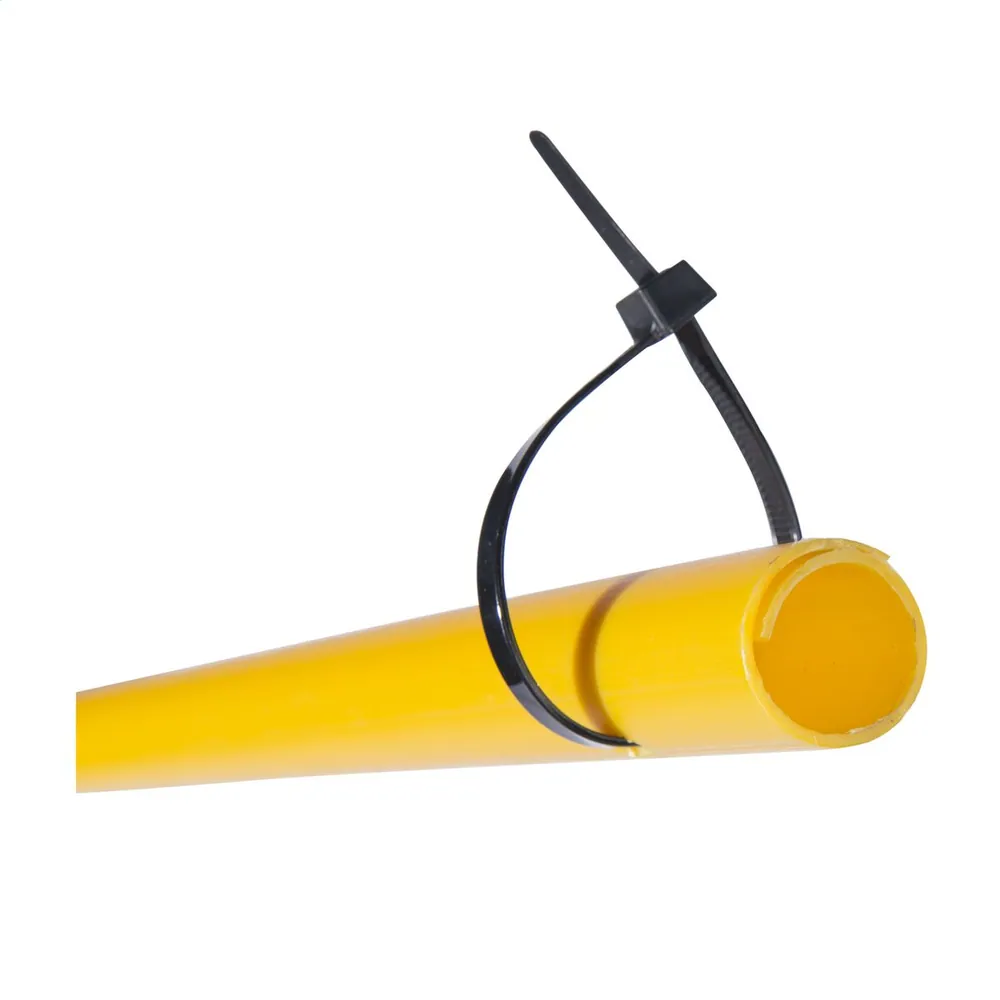

Down Guy Guard Marker Yellow Plastic
Down guy guard marker yellow plastic also named yellow guy wire guards.It is used to protect the exposed pole guy wires,dead end fittings.The color of down guy guard markers is yellow,the bright colors can provides a visible warning to nearby pedestrians and vehicular traffic to prevent the damage.
Material of Down Guy Guard Marker
The down guy guard marker is made of PE anti UV or PVC.The high impact UV stabilized PE to provide durable,high impact and economical protection.
Down Guy Guard are available used with two attachment
A: with self locking nylon cable tie.Both warning pipe will be tigh with a self locking nylon cable tie.The nylon cable tie style is easy to use and is more economical.
B: with a metal clamp
Related Product of Guy Makers
CROP is the manufacturer who is specialized in produce the splice sleeve,yellow guy guard marker,ground wire moulding and insulated protection cable cover.
Packing of Markers Guards
Above packing detail just for your reference to calculate the freight cost.
Catalogue Download
If you want to know the product,please feel free contact us.
Email: [email protected];[email protected]
Mob: 0086 177 5778 8662 / Whatsapp: 0086 17757788662 / Wechat: WXL17757788662
Specifications
Codes Ranges and Dimensions
Figures below are reproduced from the CROP catalogue for this item.
| Type | Size | Thickness mm | Length mm | Color | Accessories |
|---|---|---|---|---|---|
| PVC50.8 | 2″ | 1.6 | 2440 | Yellow | A: cable tie B: metal clamp |
| GM 2″ | 2″ | 1.6 | 2440 | Yellow | |
| GM 1″ | 1″ | 1.6 | 2440 | Yellow | |
| GM 2-1/4″ | 2-1/4″ | 1.6 | 2440 | Yellow |
| Type | Quantity/woven bags | Gross weight/woven bags | Net weight/woven bags | Volume/woven bags | woven bags size |
|---|---|---|---|---|---|
| GM-2″ with 1pc metal clamp | 15 pcs | 10 kg | 9.5kg | 0.109 | 245×18.5x24cm |
| GM-2″ with 2pc cable tie | 15 pcs | 9.5 kg | 9 kg | 0.109 | 245×18.5x24cm |
Product Images
Ordering and Support
From Enquiry To Delivered Order
Send The Requirement
Item code, conductor or cable size and quantity, or a drawing and a photograph for a non standard part.
Quotation
Price, packing, carton quantity and lead time are confirmed against the catalogue reference.
Sample or Tooling
Samples are sent for approval. Parts that need a new mould go through the in house mould division.
Production and Shipment
Production to IEC and GB standards, then packing and shipment on the agreed terms.
Answers
Frequently Asked Questions
How do I choose the right size?
Is Down Guy Guard Marker Yellow Plastic available as a sample before a production order?
Which standards do CROP products follow?
Can items be produced to our own drawing?
How do I obtain the PDF catalogue?
