TN series Twin-rod Cylinder is listed in the pneumatic cylinders section of the Betre catalogue under the Twin Rod Cylinder series. It is manufactured by YUEQING BETRE AUTOMATION CO., LTD. in Yueqing, Zhejiang, and supplied to automation machine builders and distributors in China and export markets.
The tables and drawings below are reproduced from the Betre product catalogue for this model.

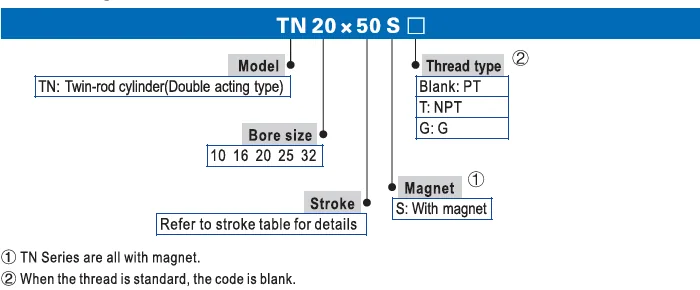

| Bore size(mm) | 10 | 16 | 20 | 25 | 32 | ||
| Acting type | Double acting | ||||||
| Fluid | Air(to be filtered by 40μm filter element | ||||||
| Operating pressure | 0.1~1.0MPa(14~145psi) | ||||||
| Proof pressure | 1.5MPa(215psi) | ||||||
| Temperature | -20℃~70℃ | ||||||
| Speed range | 30mm/s~500mm/s | ||||||
| Adjustable stroke | -10mm~0mm | ||||||
| Stroke toleranse | +1.0mm~0mm | ||||||
| Cushion type | Bumper | ||||||
| Non-rotating tolearance Note1) | ±0.4° | ±0.3° | |||||
| Port size Note2) | M5×0.8 | 1/8" | |||||
| Bore size(mm) | Standard strole(mm) | Max.stroke | ||||||
| 10 | 10,20,30,40,50,60,70,80,90,100 | 100 | ||||||
| 16 | 10,20,30,40,50,60,70,80,90,100,125,150,175,200 | 200 | ||||||
| 20 | 10,20,30,40,50,60,70,80,90,100,125,150,175,200 | 200 | ||||||
| 25 | 10,20,30,40,50,60,70,80,90,100,125,150,175,200 | 200 | ||||||
| 32 | 10,20,30,40,50,60,70,80,90,100,125,150,175,200 | 200 | ||||||

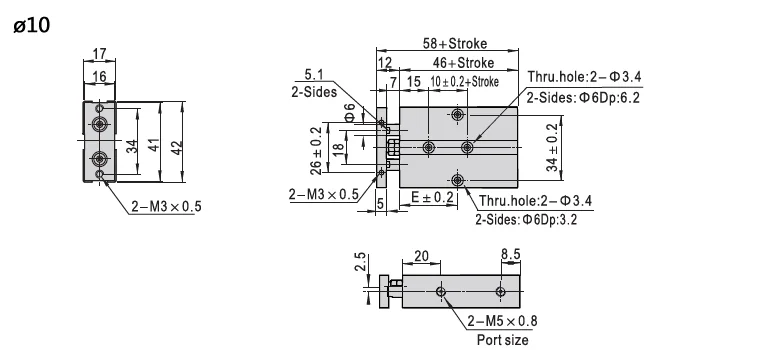

| Stroke | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 |
| E | 30 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 |

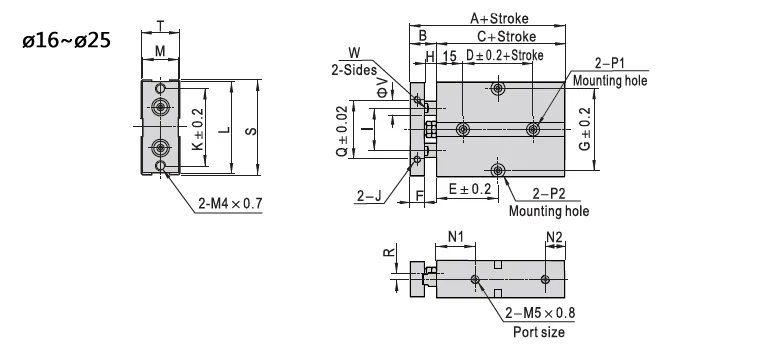

| Bore size | A | B | C | D | E | F | G | H | |||||||||||||
| Stroke≤ | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 125 | 150 | 175 | 200 | |||||||
| 16 | 68 | 15 | 53 | 20 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 87.5 | 100 | 112.5 | 125 | 8 | 47 | 7 |
| 20 | 78 | 20 | 58 | 20 | 35 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 87.5 | 100 | 112.5 | 125 | 10 | 55 | 10 |
| 25 | 81 | 19 | 62 | 30 | 40 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 92.5 | 105 | 117.5 | 130 | 10 | 66 | 9 |
| Bore size | I | K | J | L | M | N1 | N2 | P1 | P2 | Q | R | S | T | V | W | ||||||
| Stroke≤ | |||||||||||||||||||||
| 16 | 24 | 47 | M4×0.7p:5 | 53 | 20 | 22 | 11 |
2-Siders:ø7.5 Dp:7.2 Thru.hole:ø4.5 |
2-Siders:ø8 Dp:4 Thru.hole:ø4.5 |
34 | 3 | 54 | 21 | 8 | 6.1 | ||||||
| 20 | 28 | 55 | M4×0.7p:5 | 61 | 24 | 25 | 12 |
2-Siders:ø7.5 Dp:7.2 Thru.hole:ø4.6 |
2-Siders:ø8 Dp:4 Thru.hole:ø4.5 |
44 | 3.5 | 62 | 25 | 10 | 8.1 | ||||||
| 25 | 34 | 66 | M4×0.7p:6 | 72 | 69 | 27 | 12 |
2-Siders:ø7.5 Dp:7.2 Thru.hole:ø4.7 |
2-Siders:ø8 Dp:4 Thru.hole:ø4.5 |
56 | 6 | 73 | 30 | 12 | 10.1 | ||||||

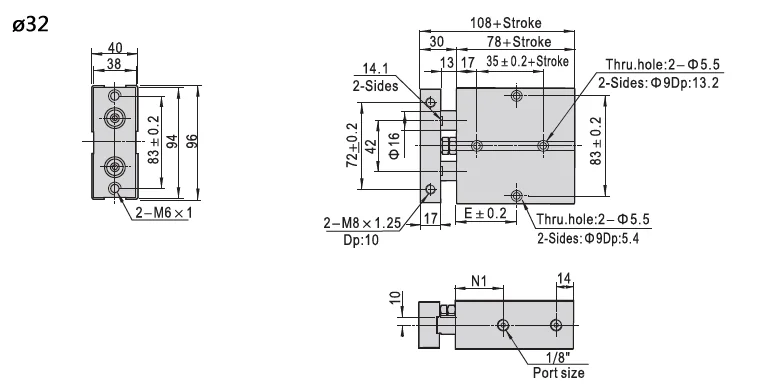

| Stroke | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 125 | 150 | 175 | 200 |
| E | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 102.5 | 115 | 127.5 | 140 |
| N1 | 35 | 40 | ||||||||||||
