STM Series Dual Rod Cylinder is listed in the pneumatic cylinders section of the Betre catalogue under the Twin Rod Cylinder series. It is manufactured by YUEQING BETRE AUTOMATION CO., LTD. in Yueqing, Zhejiang, and supplied to automation machine builders and distributors in China and export markets.

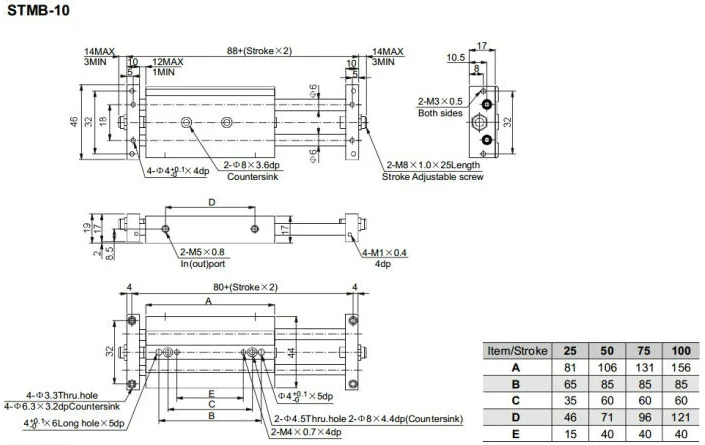

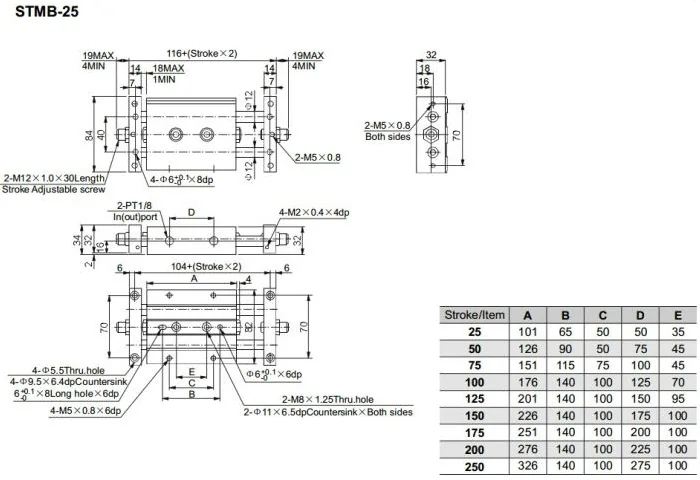

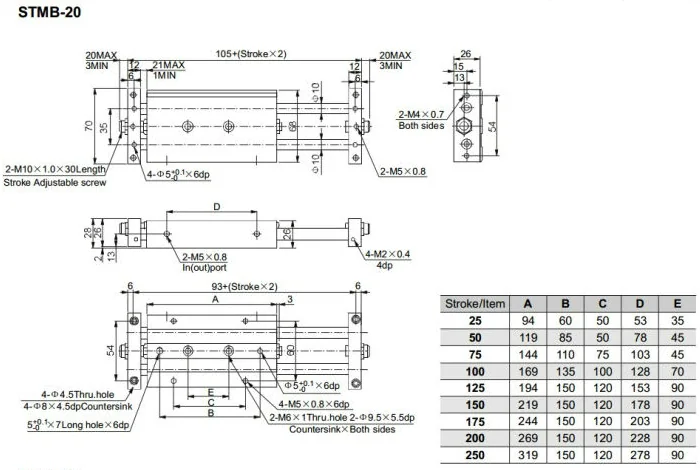

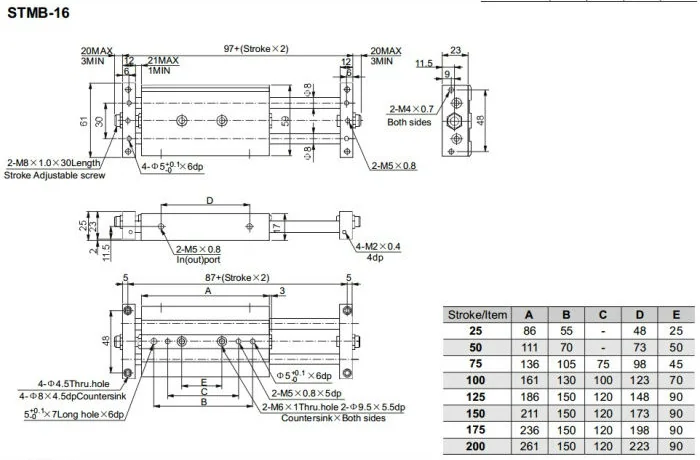

The tables and drawings below are reproduced from the Betre product catalogue for this model.
| Bore Size(mm) | 10 | 16 | 20 | 25 | ||
| Working Medium | Air | |||||
| Motion Pattern | Double action | |||||
| Ensured Pressure Resistance | 13.5kgf/cm² | |||||
| Operating Voltage Range | 1.0MPa(10.5kgf/cm²) | |||||
| Ambient and Medium Temp | -5~+70°C | |||||
| Buffer Type | - | Shock Absorber | ||||
| Operating Speed Range | 50~200mm/s | |||||
| Stock Adjustable Range | Return Stroke 0~5mm | |||||
| Non-rotating Precision | ±0.1’ | ±0.05’ | ||||
| Port Size | M5×0.8 | G1/8" | ||||
| Bore Size(mm) | Standard Strokes | ||||
| 10 | 20,50,75,100 | ||||
| 16 | 25,50,75,100,125,150,175,200 | ||||
| 20 | 25,50,75,100,125,150,175,200,250 | ||||
| 25 | 25,50,75,100,125,150,175,200,250 | ||||
Other parts from the same Twin Rod Cylinder range, usually quoted alongside this one.
STM Series Dual Rod Cylinder sits in the Pneumatic Cylinders category of the Betre catalogue, under the Twin Rod Cylinder series.
Yes. We offer OEM and ODM services according to customers' requirements and we make our own moulds and tooling.
Email [email protected] or [email protected] with the model code and quantity, or call +86-577-61712130. Our contact person is April Huang.
Yes. We do the inspection for all the products before delivery.
Our products sell all over China and in the international markets of European, North and South American countries, Southeast Asia and Oceania.
Send the quantity and any port thread or bore requirement, and we will confirm price and lead time.
