CXS series Dual rod cylinder
CXS

CXS series Dual rod cylinder

CXS series Dual rod cylinder is listed in the pneumatic cylinders section of the Betre catalogue under the Twin Rod Cylinder series. It is manufactured by YUEQING BETRE AUTOMATION CO., LTD. in Yueqing, Zhejiang, and supplied to automation machine builders and distributors in China and export markets.

Category
Pneumatic Cylinders
Series
Twin Rod Cylinder
Manufacturer
YUEQING BETRE AUTOMATION CO., LTD.
Made In
Yueqing, Zhejiang, China
Production Since
2002
Request A Quote Talk To An Engineer Request A Sample

Specifications And Dimensions

The tables and drawings below are reproduced from the Betre product catalogue for this model.

Dual Rod Cylinder Basic Type Series CXS

Specification


Bore size(mm) 6 10 15 20 25 32
Fluid Air (Non-lube)
Proof pressure 1.05 MPa
Maximum operating pressure 0.7 MPa
Minimum operating pressure 0.15 MPa 0.1 MPa 0.05 MPa
Ambient and fluid temperature –10 to 60°C (No freezing)
Piston speed 30 to 300 mm/s 30 to 800 mm/s 30 to 700 mm/s 30 to 600 mm/s
Cushion Rubber bumper
Stroke adjustable range 0 to –5 mm compared to the standard stroke
Port size M5 x 0.8 Rc 1/8
Bearing type Slide bearing, Ball bushing bearing (Same dimensions for both)
Allowable kinetic energy 0.0023 J 0.064 J 0.095 J 0.17 J 0.27 J 0.32 J

Strokes(mm)


Model Standard stroke Long stroke
CXS_6 10, 20, 30, 40, 50 60, 70, 75, 80, 90, 100
CXS_10 10, 15, 20, 25, 30, 35, 40, 45, 50, 60, 70, 75 80, 90, 100, 110, 120, 125, 150
CXS_15 10, 15, 20, 25, 30, 35, 40, 45, 50,60, 70, 75, 80, 90, 100 110, 120, 125, 150
CXS_20 110, 120, 125, 150, 175, 200
CXS_25
CXS_32

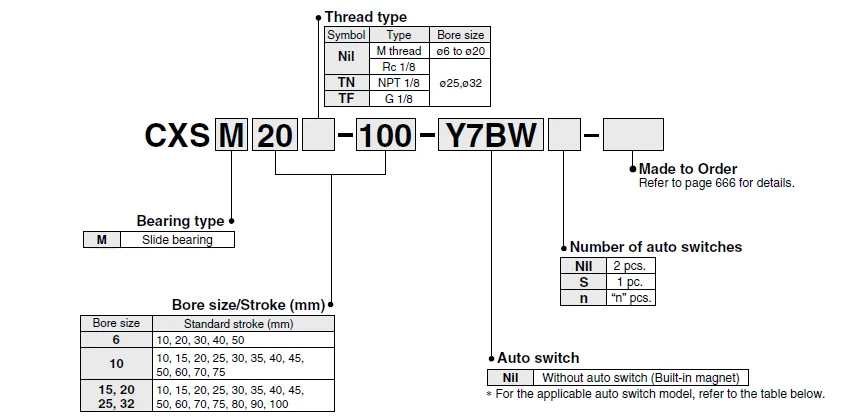

Ordering Information


Dimension drawing

Dimensions


Dimension drawing
Model K L R Symbol SS
Stroke 10 15 20 25 30 35 40 45 50 60 70 75 80 90 100
CXS_10 4 25 35 　 70 75 80 85 90 95 100 105 110 120 130 135 - - -
CXS_15 3 36 44.5 76 81 86 91 96 101 106 111 116 126 136 141 146 156 166
CXS_20 6 36 50.5 86 91 96 101 106 111 116 121 126 136 146 151 156 166 176
CXS_25 6 36 52 88 93 98 103 108 113 118 123 128 138 148 153 158 168 178
CXS_32 4 40 60 102 107 112 117 122 127 132 137 142 152 162 167 172 182 192

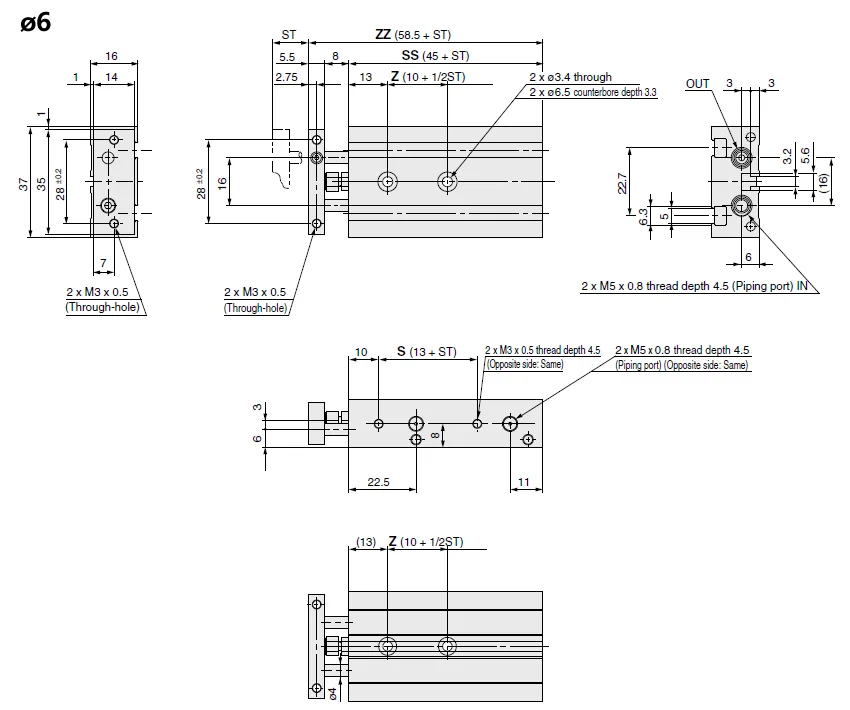

Dimension drawing
Model Stroke Z S SS ZZ
CXS_6-10 10 15 23 55 68.5
CXS_6-20 20 20 33 65 78.5
CXS_6-30 30 25 43 75 88.5
CXS_6-40 40 30 53 85 98.5
CXS_6-50 50 35 63 95 108.5

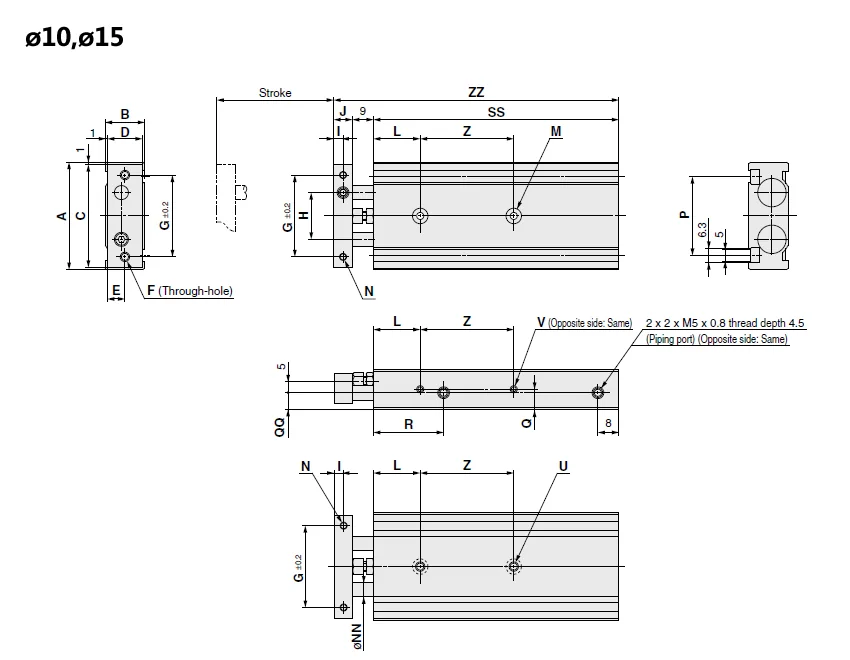

Dimension drawing
Model A B C D E F G H I J L M N NN P Q QQ R U V
CXS_10 46 17 44 15 7.5 2 x M4 x 0.7 35 20 4 8 20 2 x ø3.4 through
2 x ø6.5 counterbore depth 3.3		 2 x M3 x 0.5
thread depth 5		 ø6 33.6 8.5 7 30 2 x M4 x 0.7
thread depth 7		 4 x M3 x 0.5
thread depth 4.5
CXS_15 58 20 56 18 9 2 x M5 x 0.8 45 25 5 10 30 2 x ø4.3 through
2 x ø8 counterbore depth 4.4		 2 x M4 x 0.7
thread depth 6		 ø8 48 10 10 38.5 2 x M5 x 0.8
thread depth 8		 4 x M4 x 0.7
thread depth 5

Dimensions by Stroke


Symbol SS Z
Stroke 10 15 20 25 30 35 40 45 50 60 70 75 80 90 100 10,15,20,25 30, 35,
40, 45, 50		 60,70,75 80 90,100
Model 　
CXS_10 65 70 75 80 85 90 95 100 105 115 125 130 - - - 30 40 50 - -
CXS_15 70 75 80 85 90 95 100 105 110 120 130 135 140 150 160 25 35 45 45 55

Symbol ZZ
Stroke 10 15 20 25 30 35 40 45 50 60 70 75 80 90 100
Model
CXS_10 82 87 92 97 102 107 112 117 122 132 142 147 - - -
CXS_15 89 94 99 104 109 114 119 124 129 139 149 154 159 160 179

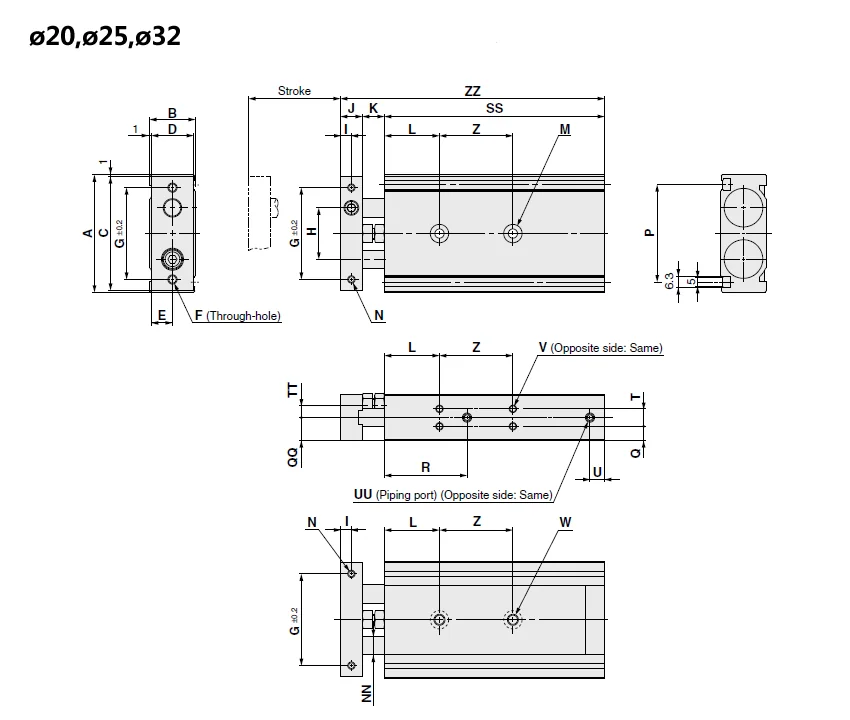

Dimension drawing
Model A B C D E F G H I J K L M N NN P Q QQ R T TT U UU VV W
CXS_20 64 25 62 23 11.5 2 x M5 x 0.8 50 28 6 12 12 30 2 x ø5.5 through
2 x ø9.5 counterbore depth 5.3		 2 x M4 x 0.7
thread depth 6		 ø10 53 7.75 12.5 45 9.5 6.5 8 4 x M5 x 0.8
thread depth 4.5		 8 x M4 x 0.7
thread depth 5.5		 2 x M6 x 1.0
thread depth 10
CXS_25 80 30 78 28 14 2 x M6 x 1.0 60 35 6 12 12 30 2 x ø6.9 through
2 x ø11 counterbore depth 6.3		 2 x M5 x 0.8
thread depth 7.5		 ø12 64 8.5 15 46 13 9 9 4 x Rc 1/8
thread depth 6.5		 8 x M5 x 0.8
thread depth 7.5		 2 x M8 x 1.25
thread depth 12
CXS_32 98 38 96 36 18 2 x M6 x 1.0 75 44 8 16 14 30 2 x ø6.9 through
2 x ø11 counterbore depth 6.3		 2 x M5 x 0.8
thread depth 8		 ø16 76 9 19 56 20 11.5 10 4 x Rc 1/8
thread depth 6.5		 8 x M5 x 0.8
thread depth 7.5		 2 x M8 x 1.25
thread depth 12

Dimensions by Stroke


Symbol SS Z
Stroke 10 15 20 25 30 35 40 45 50 60 70 75 80 90 100 10,15, 20,25 30, 35,
40, 45, 50		 60,70,75, 80,90,100
Model 　
CXS_20 80 85 90 95 100 105 110 115 120 130 140 145 150 160 170 30 40 60
CXS_25 82 87 92 97 102 107
