Pressure Switch Series BC-P43

Pressure Switch Series BC-P43



Features

● 7 User Programmable Units Available
● 2 NPN/PNP Open Collector+Analog Output    (1~5V or 4~20mA)
● 3-Color Digital LCD Display ● Repeatability ±0.2% F.S. ± 1 digit

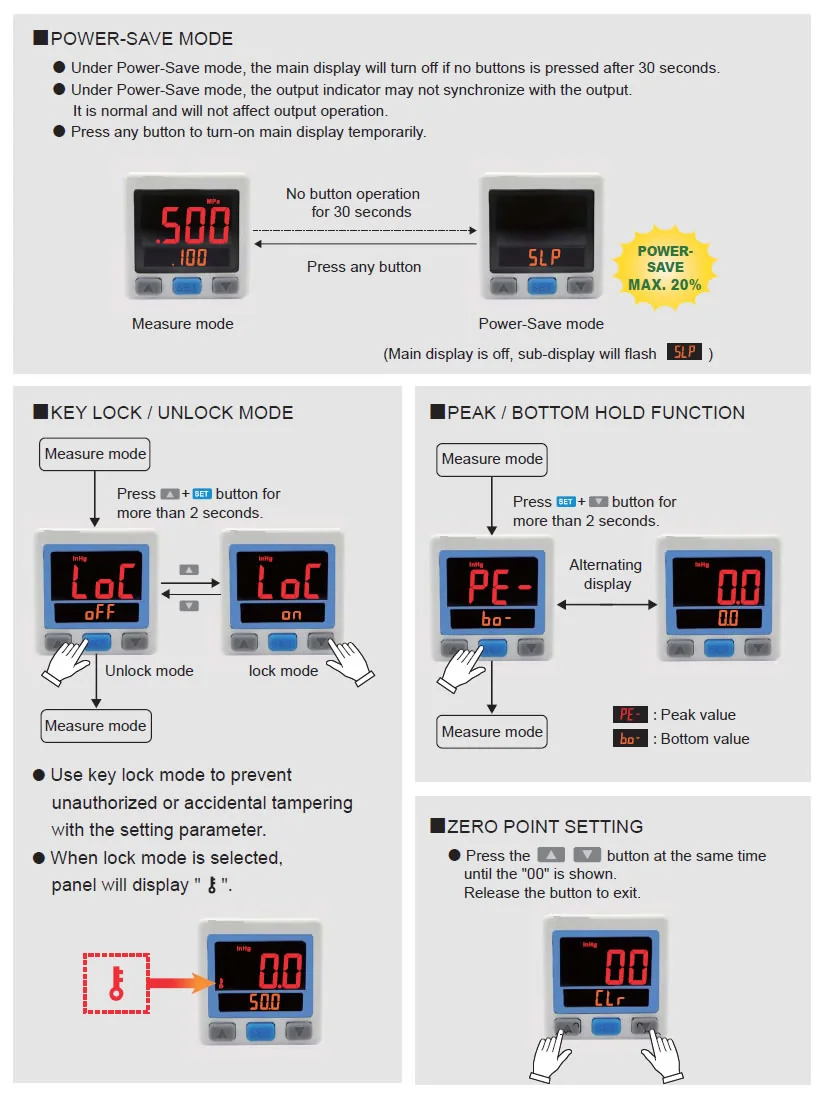

● Max. 20% energy saving

Features Highlight

Quick Installation

Copy Setting

● Save Installation Time                                                        ● Reduce setting errors
● Easy Removal                                                                    ● Reduce setting time
Data cable can be conveniently installed after the unit is        Can copy the setting value from master to slave sensor.
attached to the equipment, increase installation speed!

Setting Value Easy Indication                                 2 Color Main Display
● User can easily observe the setting value                          ● Display different setting conditions. from sub-display.                                                                 Can change the setting value and color mode.
OPS Quick Setting                                                           Unit Easy Indication
● Sub-display allows changing the parameter                      ● Conversion unit is on display and easy to read. directly, reduce setting step by 3/4.

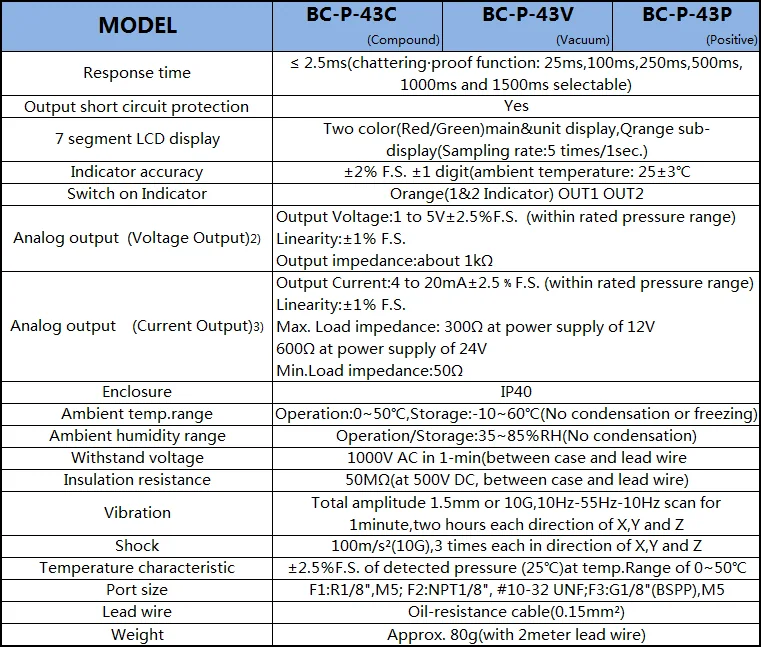

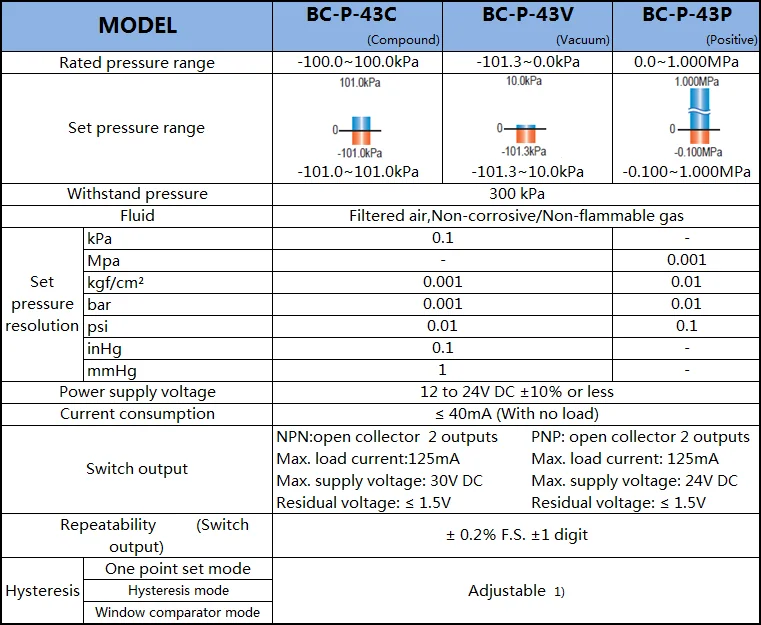

Specifications

NOTE:
1)Hysteresis value is adjustable within 1-8digits for one point set mode and window comparator mode.
2)If analog voltage output is selected, the analog current output cannot be selected at the same time.
3)If analog current output is selected, the analog voltage output cannot be selected at the same time.

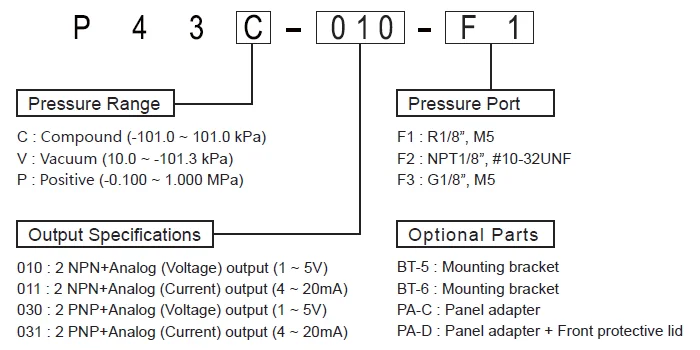

Ordering Information

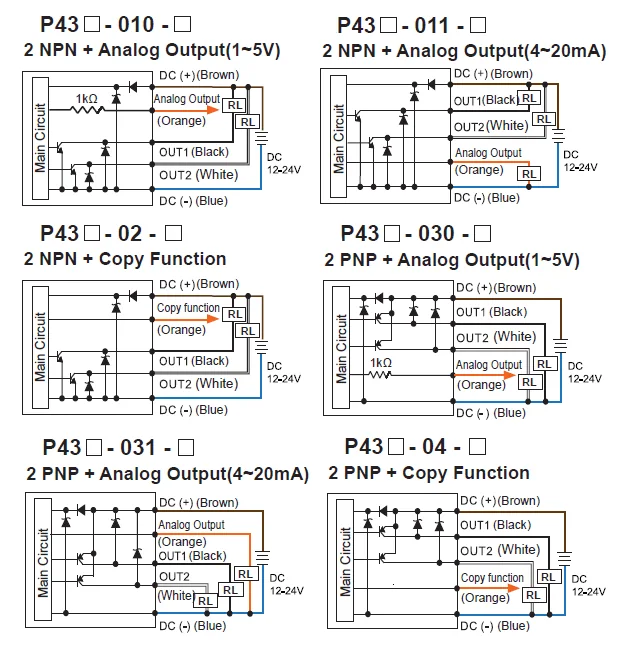

Output Circuit Wiring Diagrams

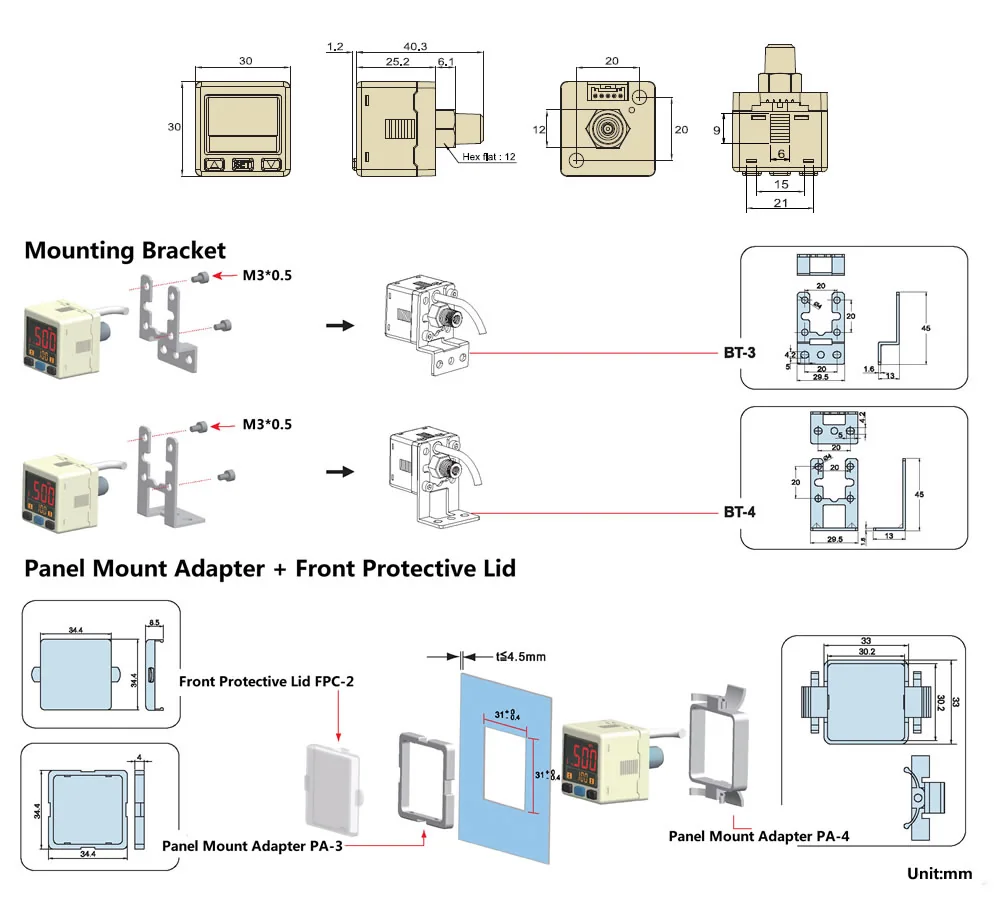

Dimension
