Pressure Switch Series BC-P42

Pressure Switch Series BC-P42

Features

●3-colors digital LCD display
●Programmable pressure unit: kPa, Mpa, kgf/cm², bar, psi, inHg, mmHg
●Dual LCD display allows setting value to be displayed

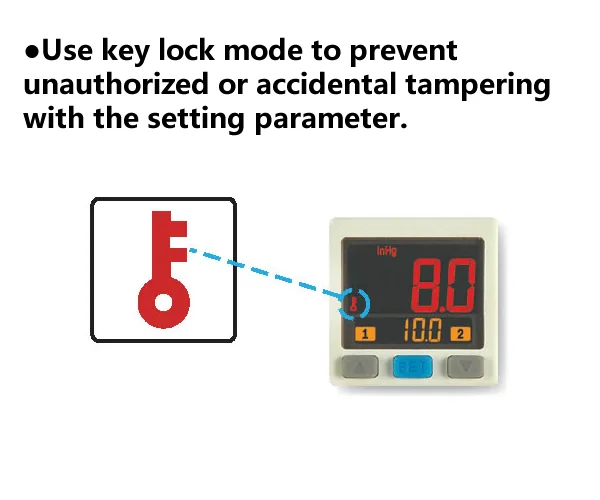

●Key lock indicator
● 2 NPN/PNP Open Collector+Analog Output    (1~5V or 4~20mA)

Features Highlight

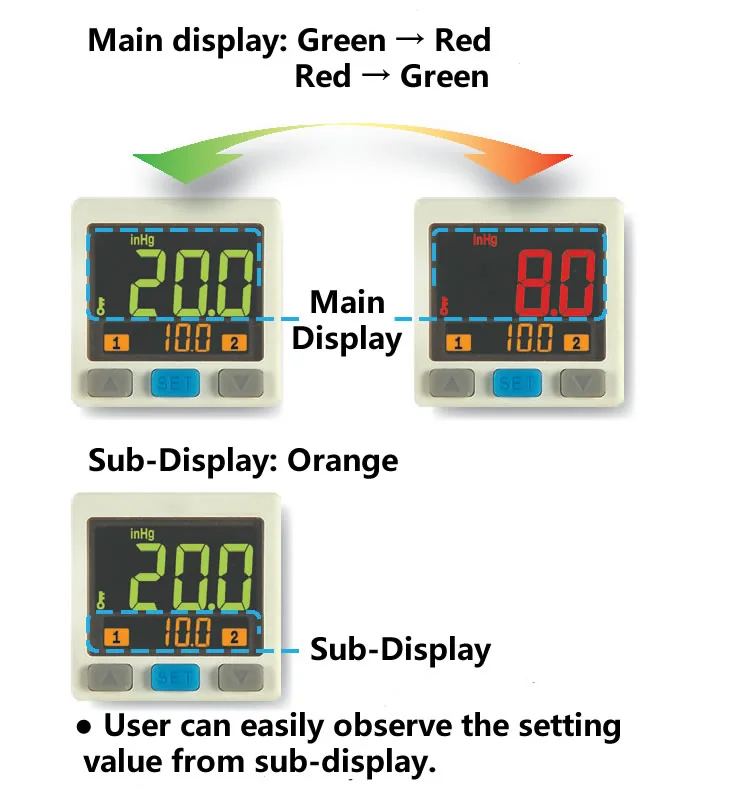

3-colors digital LCD display                              Saving Installation Space

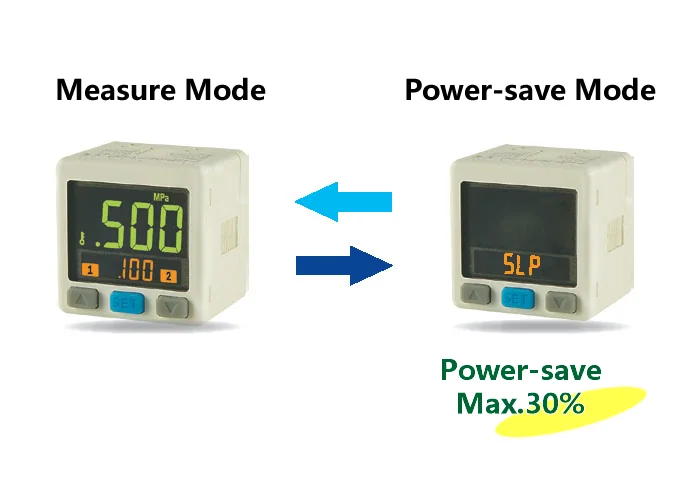

Power-save Mode                                                          Easy Unit Identification

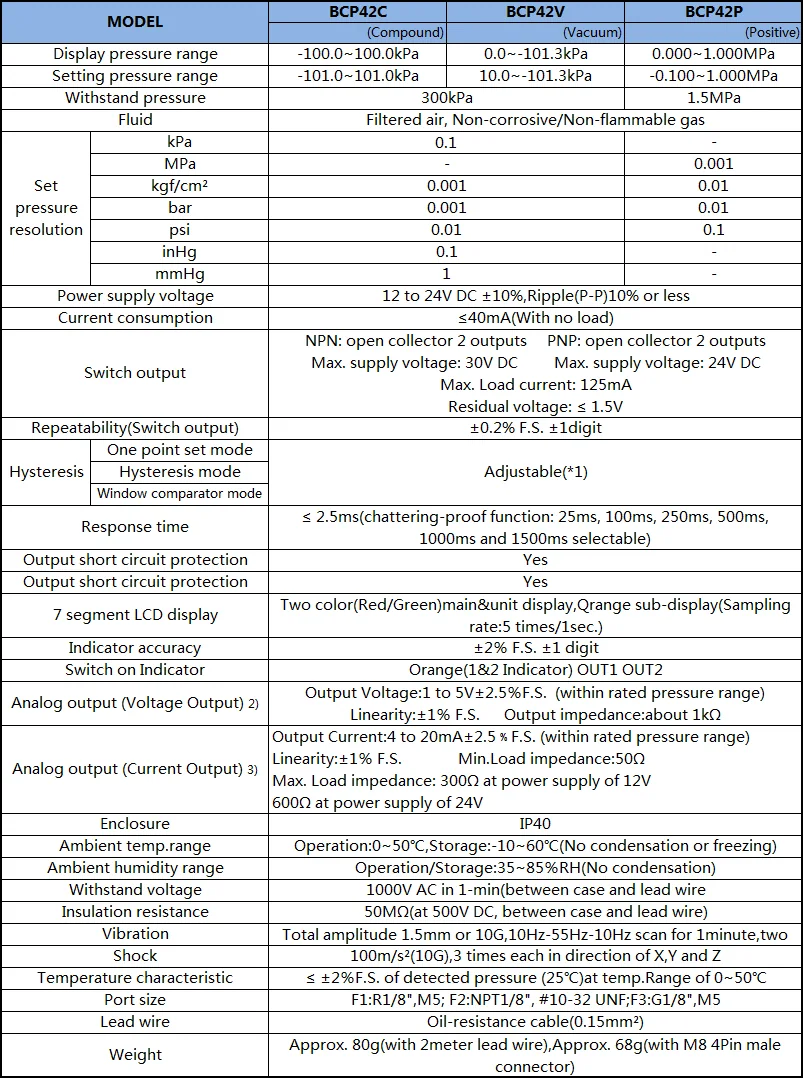

Specification

NOTE:
1)Hysteresis value is adjustable within 1-8digits for one point set mode and window comparator mode.
2)If analog voltage output is selected, the analog current output cannot be selected at the same time.
3)If analog current output is selected, the analog voltage output cannot be selected at the same time.

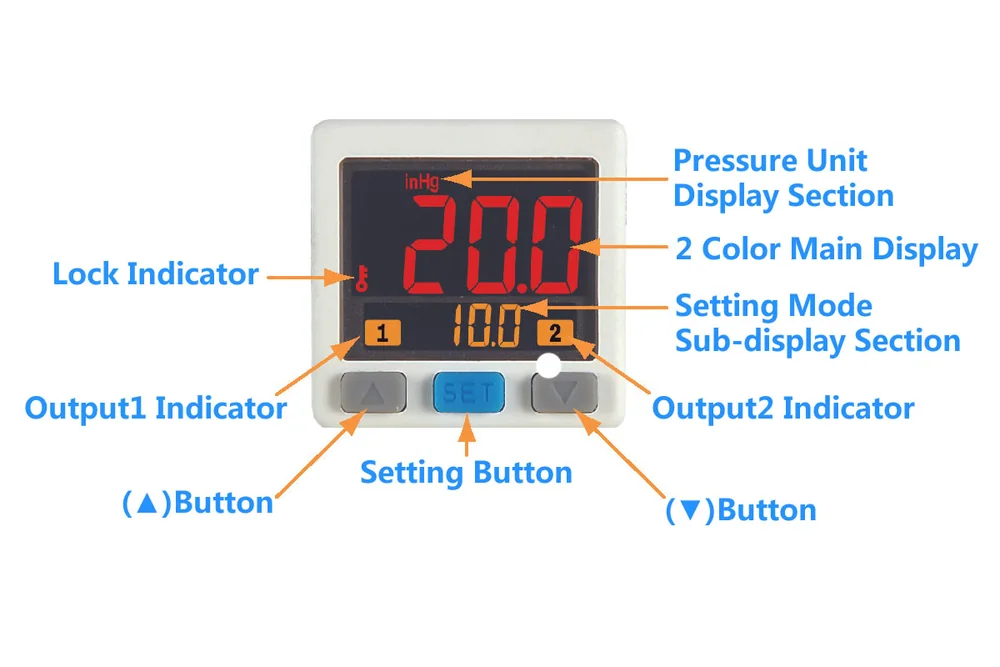

Panel Description

Installation

Precautions

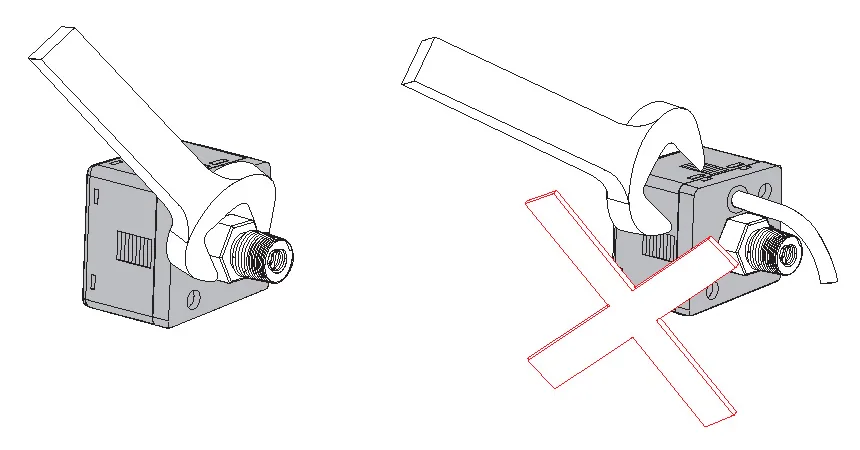

●When mounting, always use the wrench on the metallic area near the pressure port. Never apply a wrench to the plastic body, it will damage the sensor. ●Over tightening may cause damages to the port thread, mounting bracket and pressure sensor. Under tightening may result loosen or leakage. ●Apply pressure and power after installation and make necessary adjustments and inspect any possible signs of leakage to ensure proper installation.

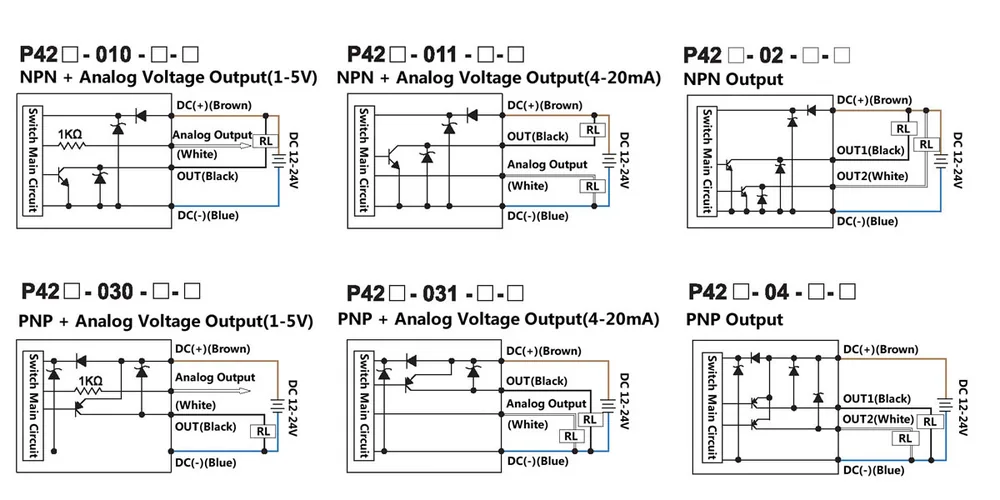

Output Circuit Wiring Diadrams

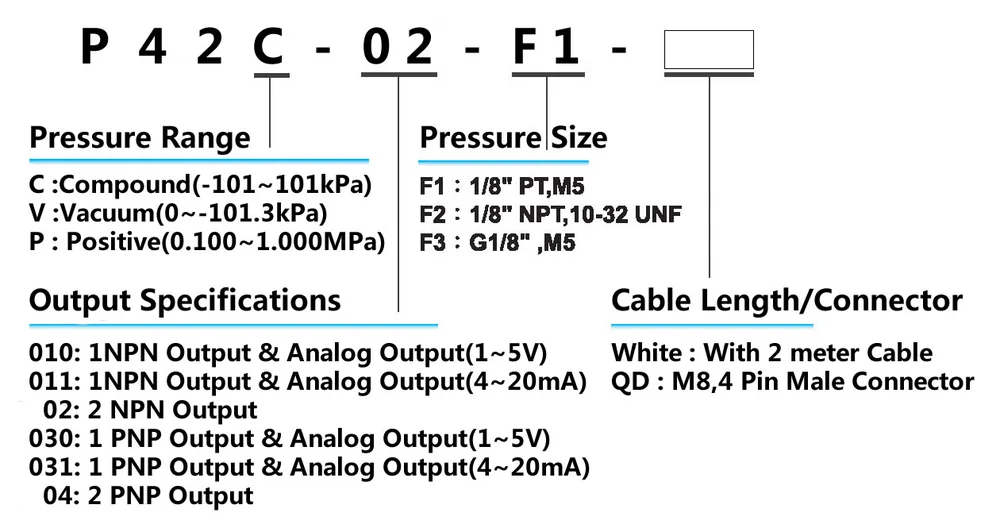

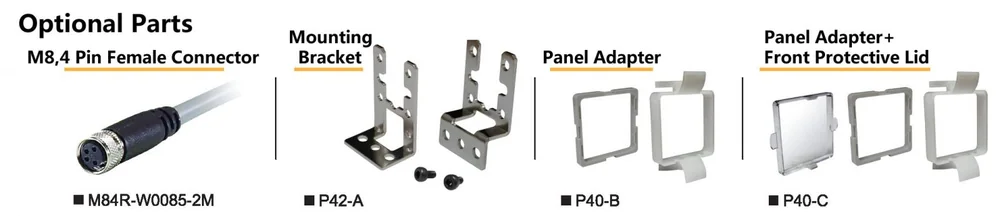

Ordering Information

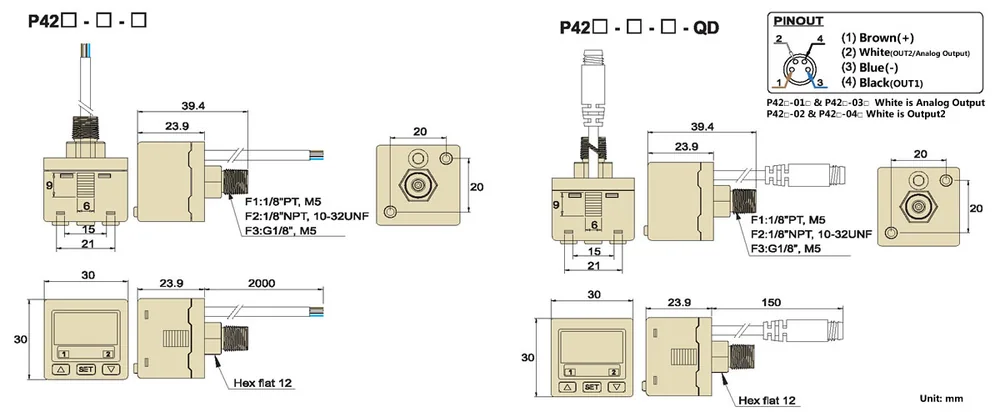

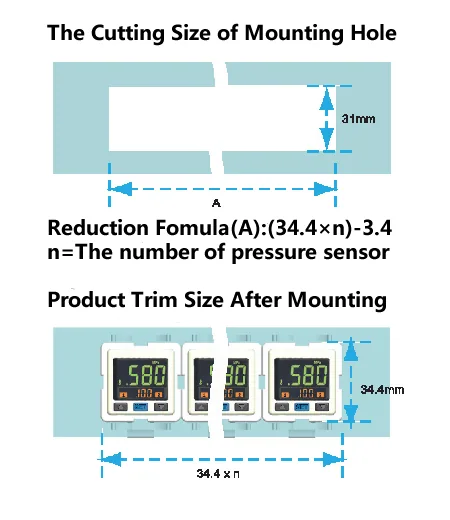

Dimension
