Pressure Switch Series BC-P10

Pressure Sensor Series BC-P-10

Features

●Simple installation,plug-in port or thread-in fitting
●Compact size:26*10*10.4mm
●Settinh pressure range: Switch: Vacuum(0~-101.3kPa)                                           Positive (0~0.6MPa)
                                              Analog:    Compound (-100~100kPa)                   Compound (-101~500kPa)
                                              Low(0~100kPa)              Vacuum (0~ -101.3kPa)             Positive(0~1.0MPa)

Features Highlight

Simple installation                                      Compact size
Plug-in port for push-to-connect fittings                        Extremely compact size 26(L)×10(W)×10.4(H)mm to fit the most confined areas


Installation Precautions

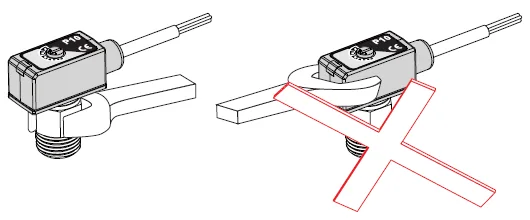

● When mounting,always use the wrench on the metallic area near the pressure port. Never apply a wrench to the plastic body, it will damage the sensor.
● Over tighening may cause damages to the port thread, mounting bracket and pressure sensor. Under tightening may result loosen or leakage.
● Apply pressure and power after installation and make necessary adjustments and inspect any possible signs of leakage to ensure proper installation.

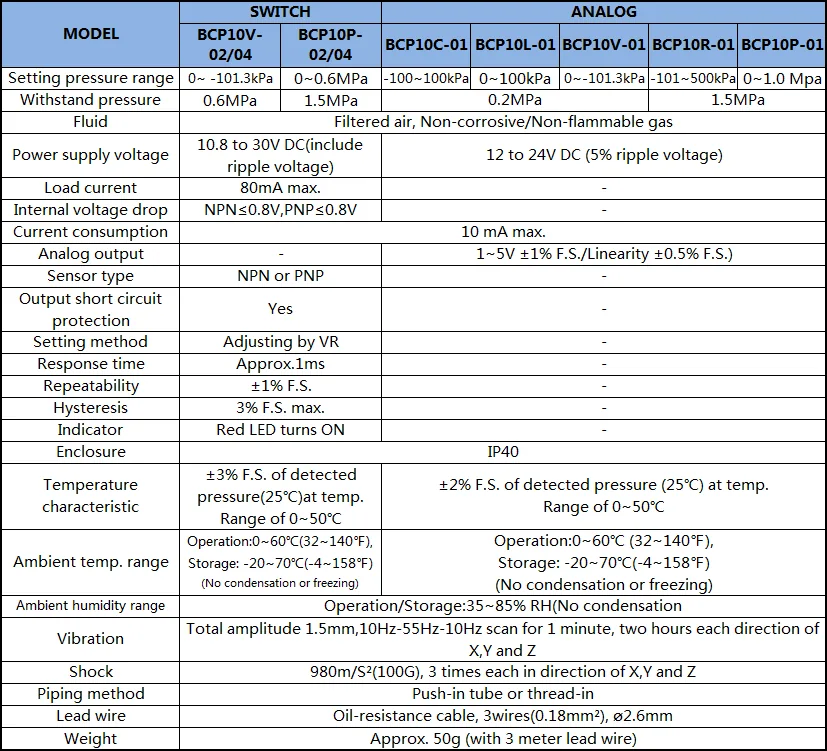

Specification

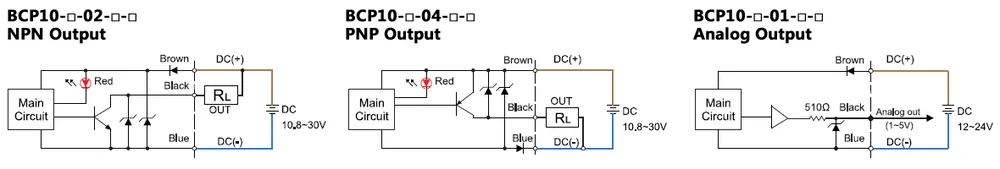

Circuit Wiring Diagrams

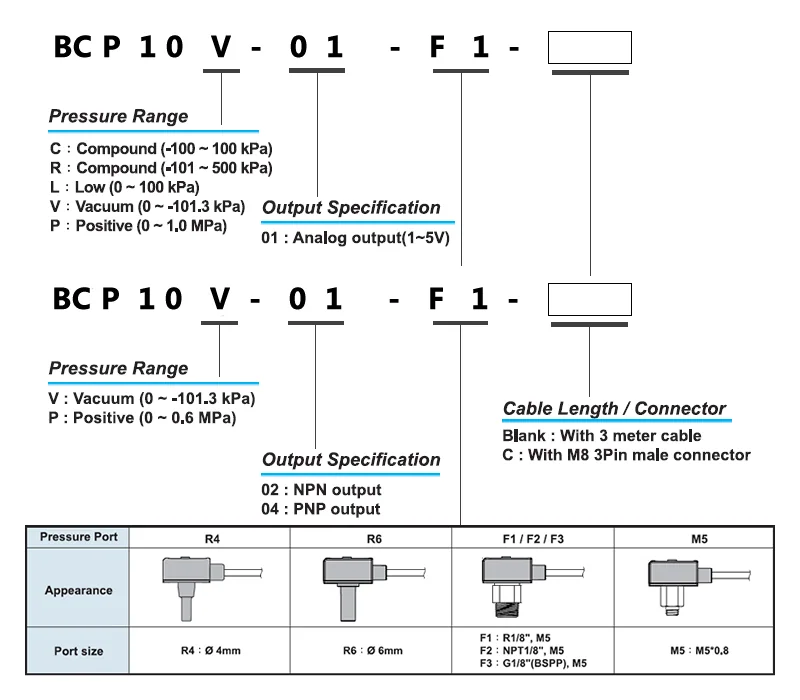

Ordering Information

How to Set Pressure

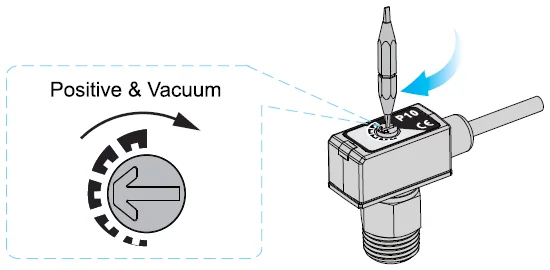

●Use the pressure setting trimmer to set "ON" Pressure.Rotate clockwise to increase pressure setpoint. Rotate counter-clockwise to decrease pressure setpoint.
●Use appropriate size screwdriver for the setting trimmers.Gently turn the screwdriver to make adjustments. To prevent damage to the pressure setting trimmer, DO NOT force the trimmer when it comes to a stop.

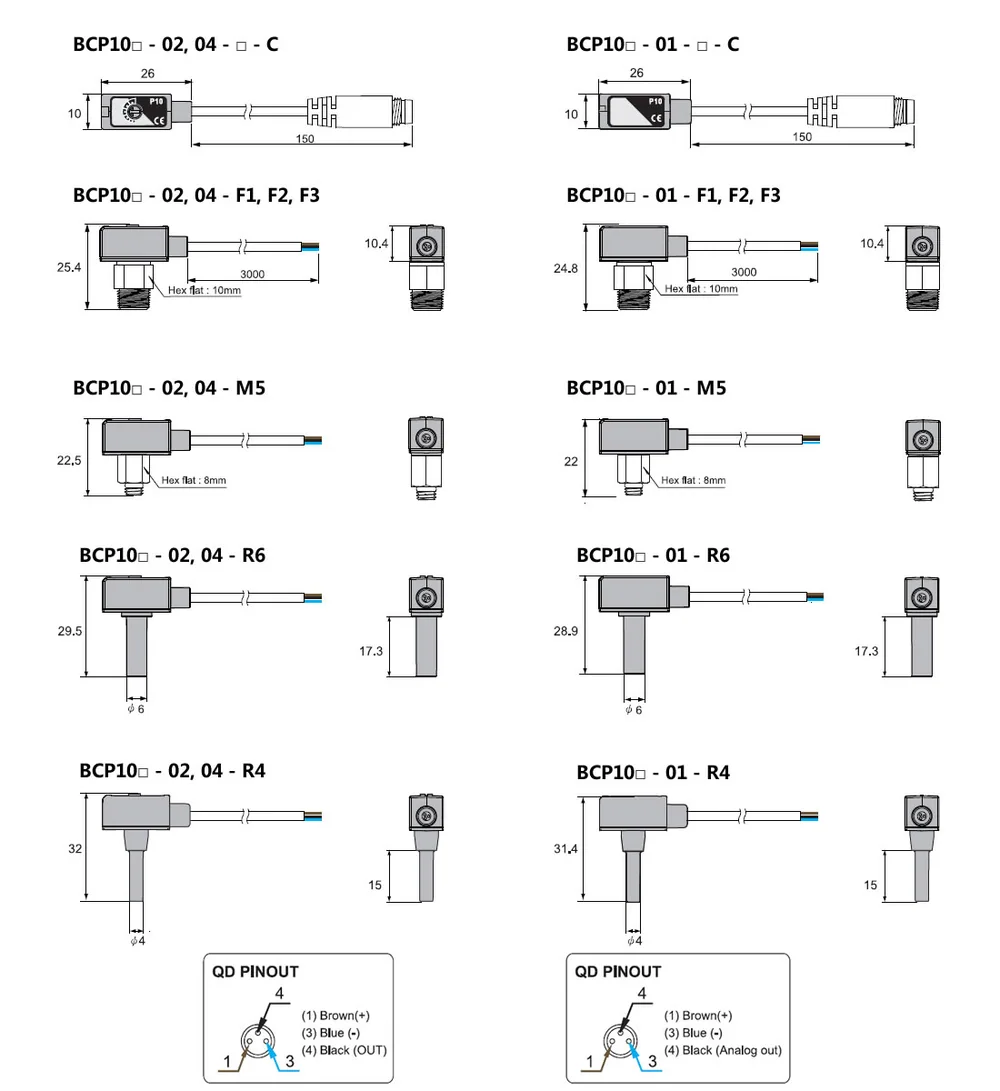

Dimension
