Pressure Switch Series BC-P-30

Pressure Switch Series BC-P-30

Features

●Setting pressure range: Compound (-100.0~100.0kPa)
                                              Vacuum (10.0~-101.3kPa)     Positive (-0.100~1.000MPa)
●2 outputs &analog output (1~5V)
●Hysteresis adjustable
●Programmable pressure unit: kPa,MPa,kgf/cm²,bar, psi, inHg, mmHg, mmH₂O

Features Highlight

Programmable Pressure Unit

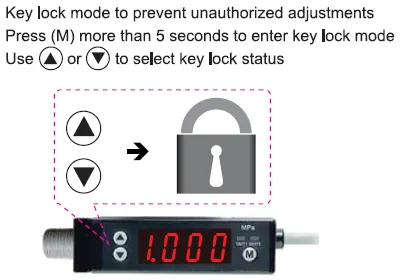

Key Lock Function

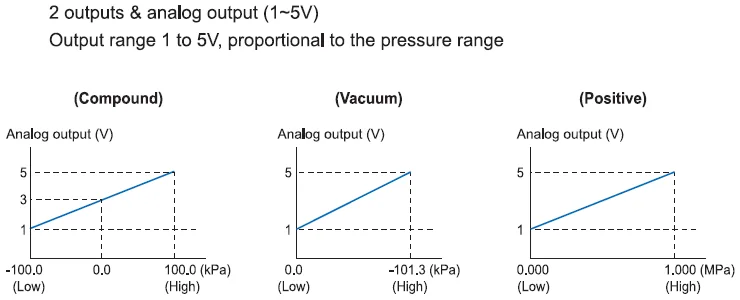

Analog Output

Hysteresis Adjustable

Installation

Precautions

●When mounting, always use the wrench on the metallic area near the pressure port. Never apply a wrench to the plastic body, it will damage the sensor.
●Over tightening may cause damages to the port thread, mounting bracket and pressure sensor. Under tightening may result loosen or leakage.
●Apply pressure and power after installation and make necessary adjustments and inspect any possible signs of leakage to ensure proper installation.

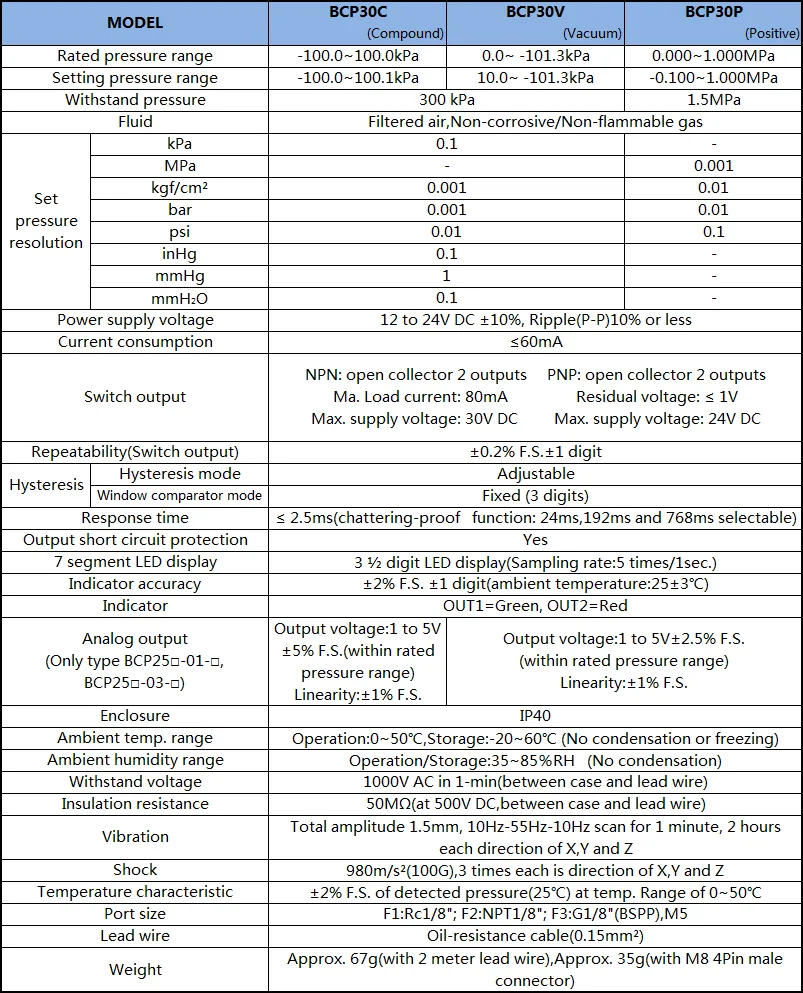

Specification

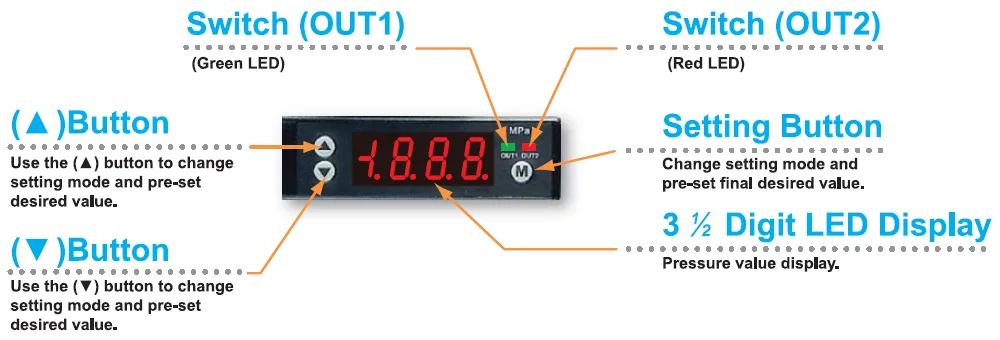

Panel Description

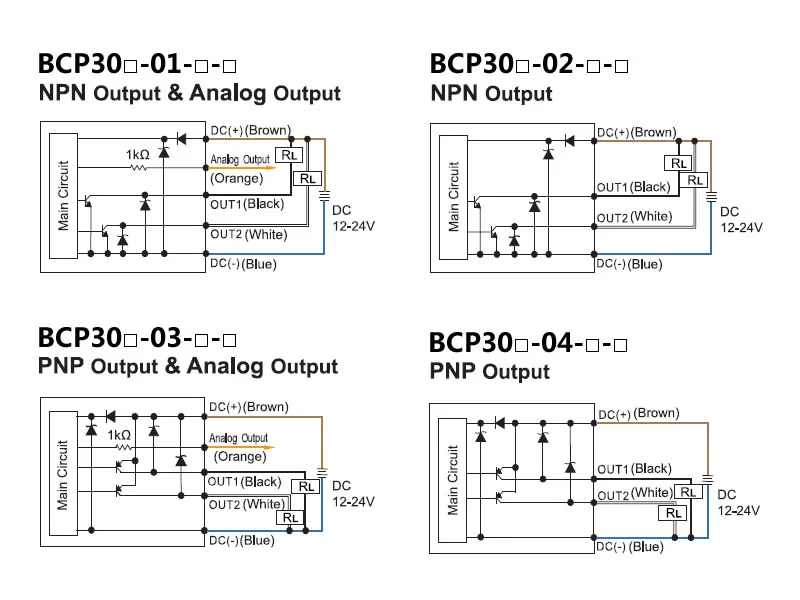

Circuit Wiring Diagrams

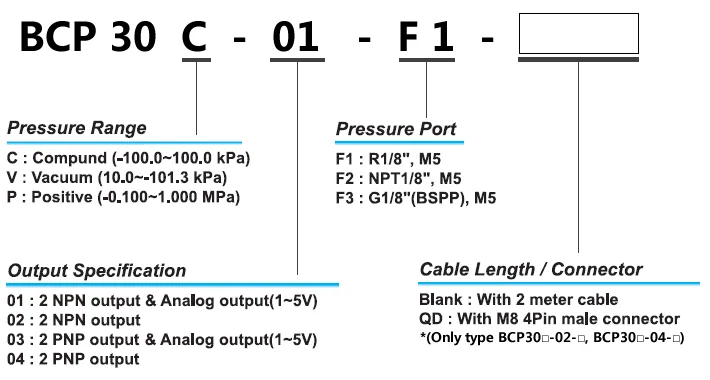

Ordering Information

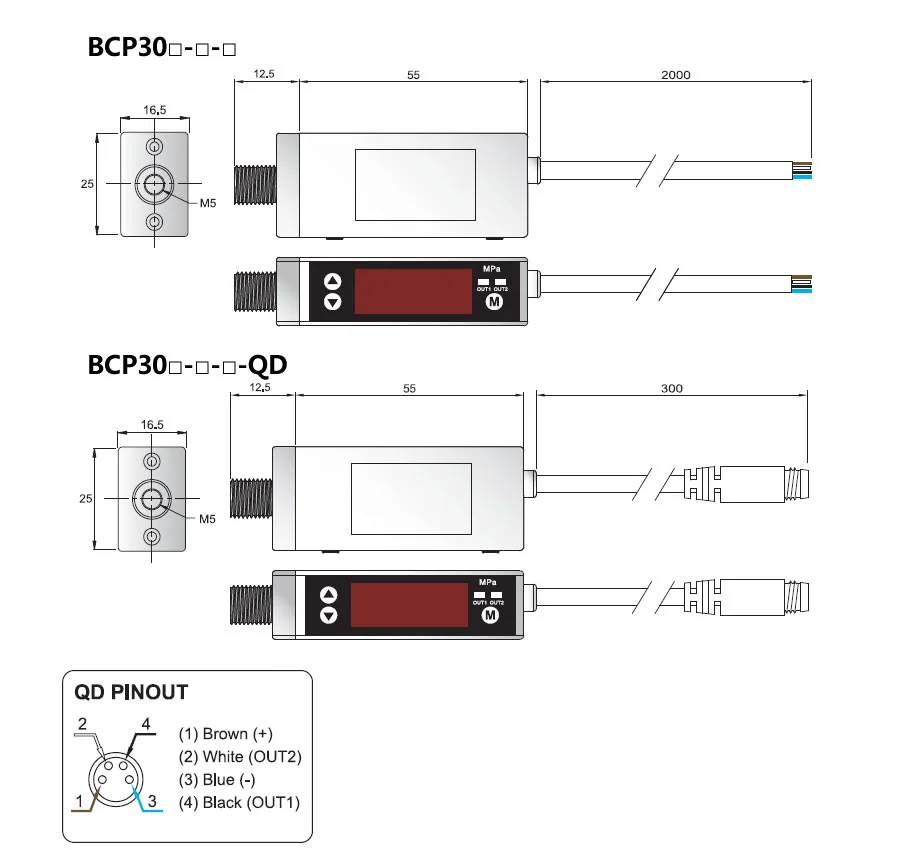

Dimension
